Specifications

Check out our audio boards documentation for help selecting and using Raspberry Pi audio boards.

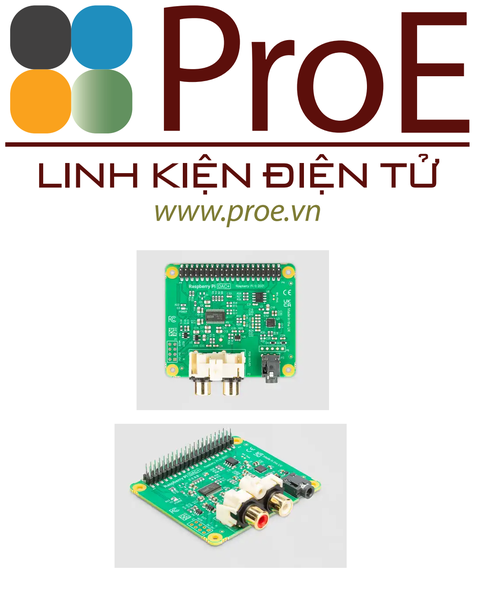

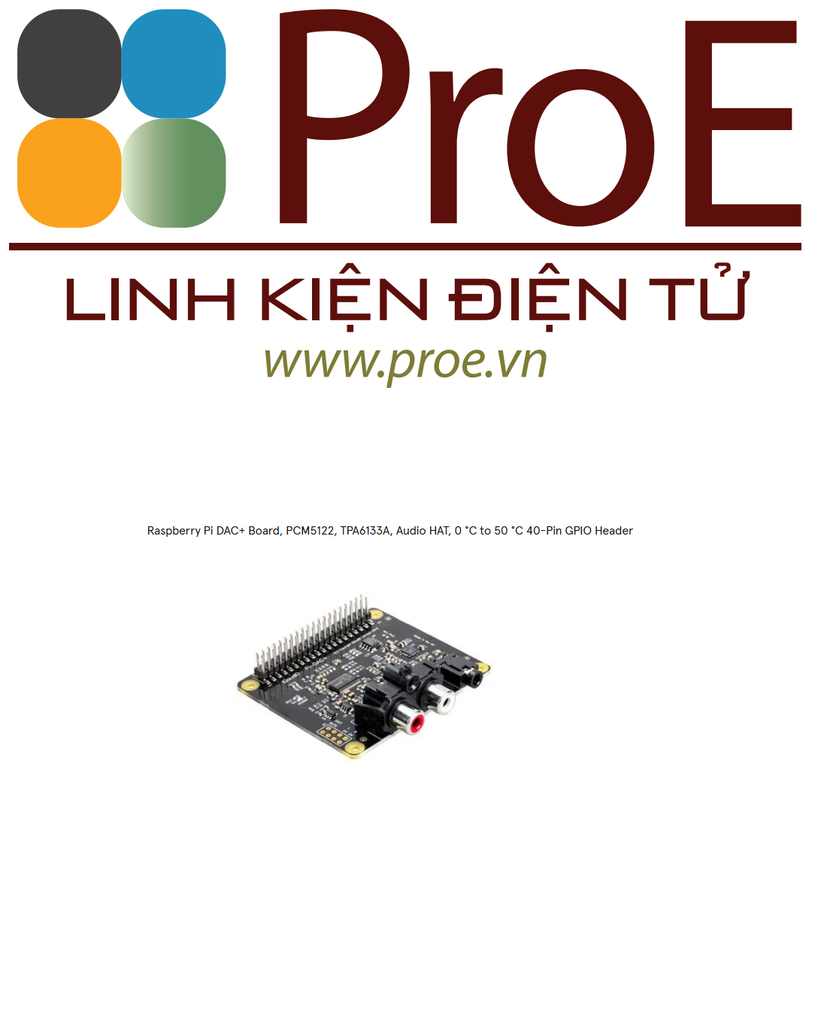

The Raspberry Pi DAC+ is compatible with any Raspberry Pi computer that has a 40-pin GPIO header.

Form factor: 58 mm × 65 mm

Performance: Full high definition 24-bit 192kHz Texas Instruments PCM5122 digital audio codec (DAC)

Input power: Supplied by Raspberry Pi through the 40-pin GPIO header. No external power source required

Features:

• Power LED
• Analogue audio out (0-2V RMS) via panel-mounted stereo
• phono (RCA) sockets with MUTE signal (headphone detect)
• Dedicated headphone amplifier, output via 3.5mm panelmounted barrel socket
• 40-pin pass-through GPIO header
• HAT EEPROM write-enabled

Operating temperature: 0°C–50°C

Documents

• Raspberry Pi DAC+ product brief
