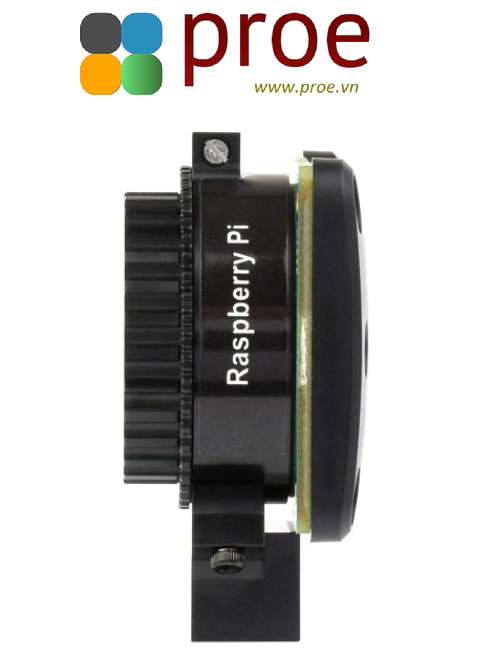

Raspberry Pi Global Shutter Camera

PACKAGE CONTENT

Weight: 0.49 kg

1. Raspberry Pi Global Shutter Camera ×1
2. C-CS adapter ×1
3. Dust cap ×1
4. Screwdriver ×1
5. FFC ribbon ×1
6. Packing box ×1

Raspberry Pi Original Global Shutter Camera Module, Supports C/CS Mount Lenses, 1.6MP, High-Speed Motion Photography, Compatible With Raspberry Pi Series Boards

Raspberry Pi Global Shutter Camera

Supports C/CS mount lenses | Compatible with Raspberry Pi series boards

Features At A Glance

The Raspberry Pi Global Shutter Camera is the latest global shutter camera module from Raspberry Pi Foundation, based on the IMX296 sensor, with 1.6MP resolution. It is capable of capturing fast moving objects without the Jelly-Effect of rolling shutters, ideal for fast motion photography and machine vision applications.

With a large pixel size of 3.45μm × 3.45μm providing high light sensitivity, the Global Shutter Camera can operate with short exposure times (as low as 30μs with adequate lighting), an advantage for high-speed photography.

The Raspberry Pi Global Shutter Camera includes a C- to CS-mount adapter, suitable for industrial lenses with C or CS mount. This module is compatible with all Raspberry Pi series boards (Raspberry Pi Zero or Computing Module series require an additional adapter cable).

Specifications

Lens Selection

PRODUCT	6mm Wide Angle Lens	16mm Telephoto Lens	25mm Telephoto Lens	35mm Telephoto Lens	8-50mm Zoom Lens	100X Microscope Lens for Pi
IMAGE FORMAT	1/2"	1"	2/3"	1"	1/2.3"	1/2"
FOCAL LENGTH	6mm	16mm	25mm	35mm	8-50mm	-
APERTURE	F1.2	F1.4-16	F1.4-16	F1.7-16	F1.4	-
OPTICAL MAGNIFICATION	-					0.12X~1.8X
ZOOM RATIO	-					15:01
MOUNT	CS-mount	C-mount				C/CS-mount
ANGLE OF VIEW	63°	1"      44.6° × 33.6° 2/3"      30.0° × 23.2° 1/1.8"      24.7° × 18.6° 1/2"      21.8° ×16.4°	2/3" 20.2° × 15.1° 1/1.8" 16.5° × 12.4° 1/2" 14.5° × 10.5°	1" 20.9° × 15.8° 2/3" 14.4° × 10.8° 1/2" 10.5° × 7.9°	45°-5.35°	-
BACK FOCUS	7.53mm	17.53mm				-
OPTICAL LENGTH	-	67.53mm	-
DISTORTION	-	1"（-0.7%） 1/2"（-0.5%） 1/3"（-0.15%）	0.05%	0.35%	-	< -0.1%
M.O.D.	0.20m	0.20m	0.25m	0.30m	0.20m	2.4mm
DIMENSIONS	Φ30.00 × 34.00mm	Φ39.00 × 50.00mm	Φ34.00 × 34.00mm	Φ35.00 × 34.00mm	Φ40.00×68.30mm	Φ39.00×112.00mm
OPERATION	Manual aperture adjustment					Fixed aperture
WEIGHT	53g	133.7g	82g	78g	148g	202g

Global Shutter, More Clear Imaging

The Global Shutter Eliminates Jello-Effect While Shooting Fast Moving Objects
More Suitable For High-Speed Motion Capturing

Rolling Shutter

Global Shutter

With Mounted Lens

Supports Camera Tripod

Working With Raspberry Pi

• Raspberry Pi boards, and lenses in the photos are NOT included
• To use with Raspberry Pi Zero, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable

Product Show

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/Raspberry_Pi_Global_Shutter_Camera
