Raspberry Pi HQ Camera M12
- Mã sản phẩm: Raspberry Pi HQ Camera M12
- Nhà sản xuất: Raspberry Pi
- Website hỗ trợ: https://www.proe.vn
1.950.000₫

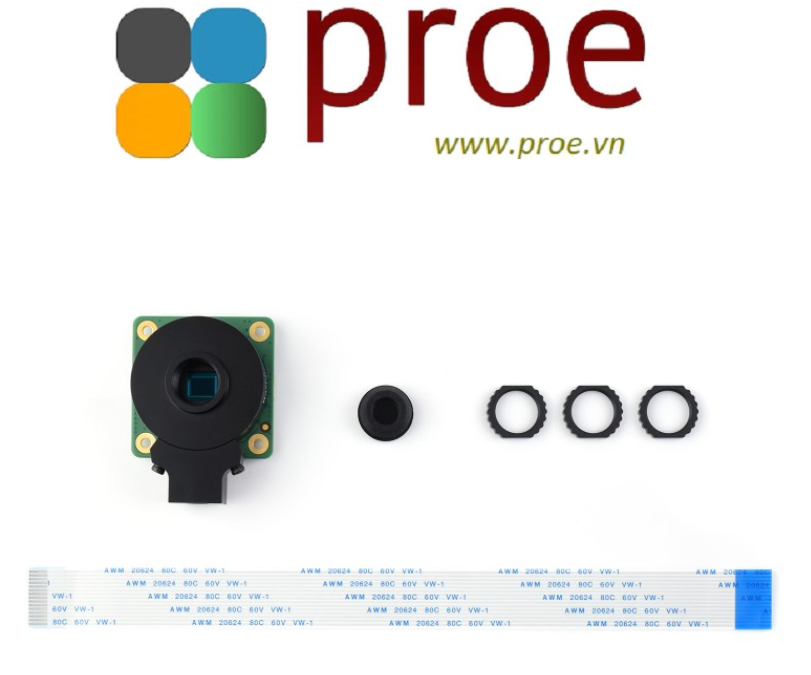

- PACKAGE CONTENT
-
Weight: 0.49 kg
- Raspberry Pi HQ Camera M12 x1
- Dust cap x1
- M12 mount connector (3PCS) x1
- 15-pin FFC (opposite sides contact) x1
Raspberry Pi High Quality Camera M12, 12.3MP IMX477R Sensor, High Sensitivity, Supports M12 Mount Lenses, Compatible With Raspberry Pi Series Boards
Raspberry Pi High Quality Camera M12
M12 mount | Compatible with Raspberry Pi series boards
Features At A Glance
The Raspberry Pi HQ Camera M12 is the M12 mount version of the Raspberry Pi High Quality Camera, adopts the IMX477R sensor, compact in size, and provides 12.3MP high resolution and excellent low-light performance.
Features an M12 mount and requires a M12 lens to work, for integration into industrial and commercial applications which require a higher level of visual fidelity. The Raspberry Pi HQ Camera M12 is compatible with all Raspberry Pi series boards.
Specifications
| SENSOR | IMX477R |
|---|---|
| 12.3MP, 4056 (H) × 3040 (V) | |
| 7.9mm CMOS diagonal size | |
| 1.55µm (H) × 1.55µm (V) pixel size | |
| OUTPUT | RAW12 / 10 / 8, COMP8 |
| BACK FOCUS | Adjustable |
| LENS SUPPORT | M12 |
| IR CUT FILTER | Integrated |
| TRIPOD MOUNT | 1/4″-20 |
M12 Lens Selection
| MODEL | FIELD OF VIEW | FOCAL LENGTH | APERTURE | DISTORTION | LENS MATERIAL | BACK FOCAL LENGTH | RESOLUTION |
|---|---|---|---|---|---|---|---|
| WS1842714 | 184.6° | 2.72mm | 2.5 | <-21% | 8G+IR | 3.06mm | 14MP |
| WS1132812 | 113° | 2.7mm | 2.8 | <-1.5% | 5G2P+IR | 4.97mm | 12MP |
| WS1053516 | 105° | 3.56mm | 2.5 | <-16.5% | 4G3P+IR | 5.92mm | 16MP |
| WS1603212 | 136° | 3.2mm | 2.0 | <-64% | 8G+IR | 6.08mm | 12MP |
| WS0690812 | 69° | 8mm | 1.8 | <-15.68% | 8G+IR | 6.8mm | 12MP |
Higher Resolution, Better Imaging Effect
Compared To 8MP Of Normal Raspberry Camera, The High Quality Camera Offers Up To 12.3MP, Along With Nearly 50% Greater Area Per Pixel, Delivering Better Imaging Effect
Higher resolution support
Large pixels for clearer imaging
Using With Different Lens

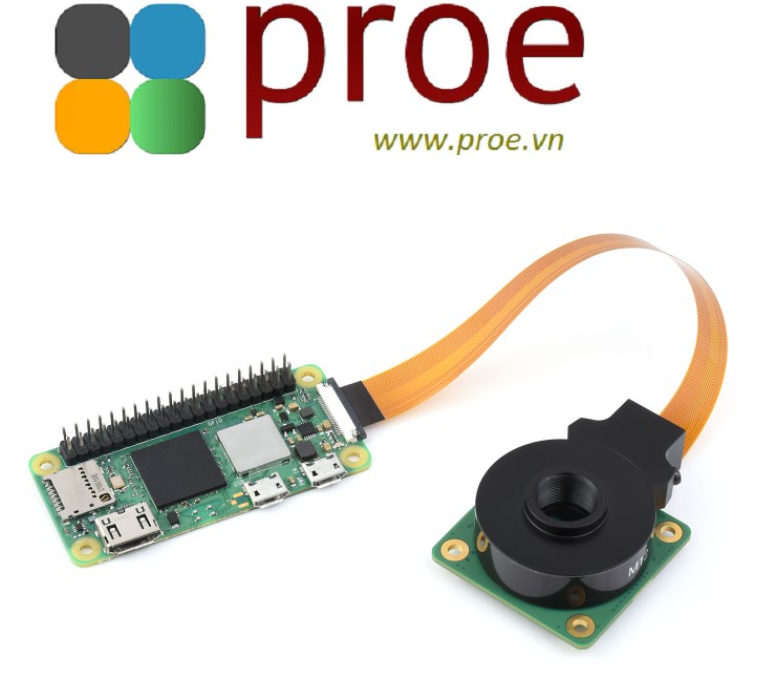

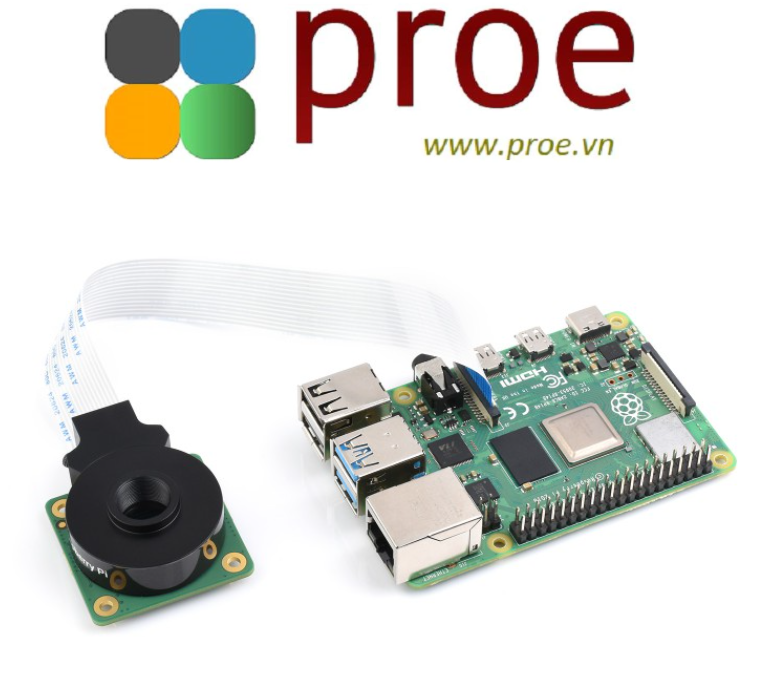

Working With Raspberry Pi
- Raspberry Pi boards, and lenses in the photos are NOT included
- To use with Raspberry Pi Zero, you need to buy an additional Raspberry Pi Zero v1.3 Camera Cable

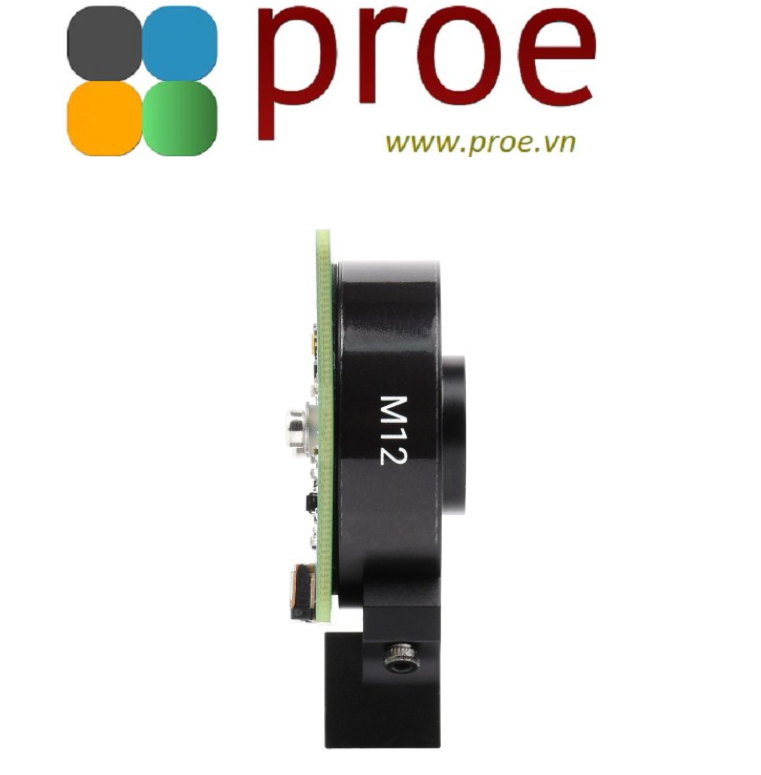

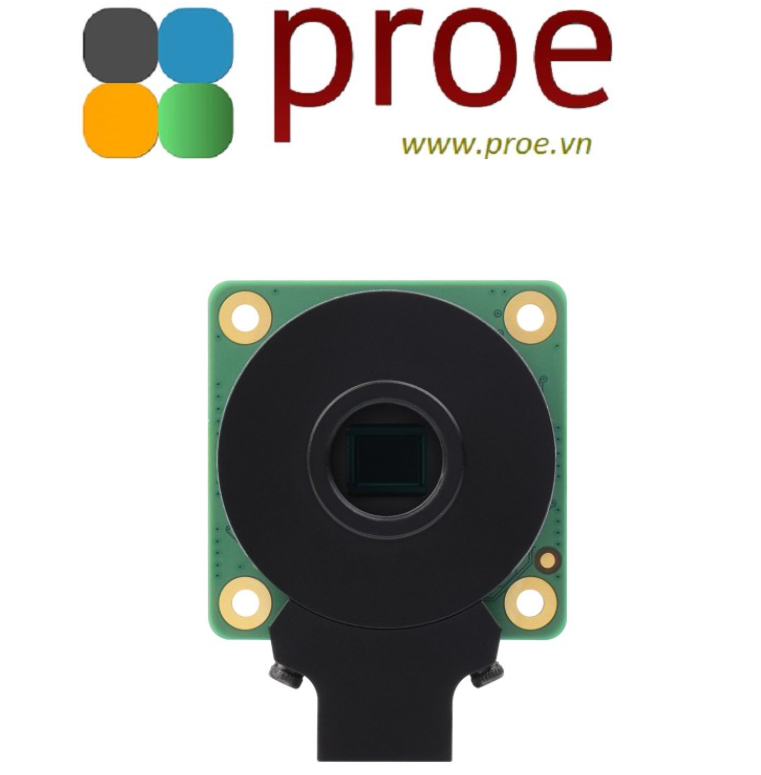

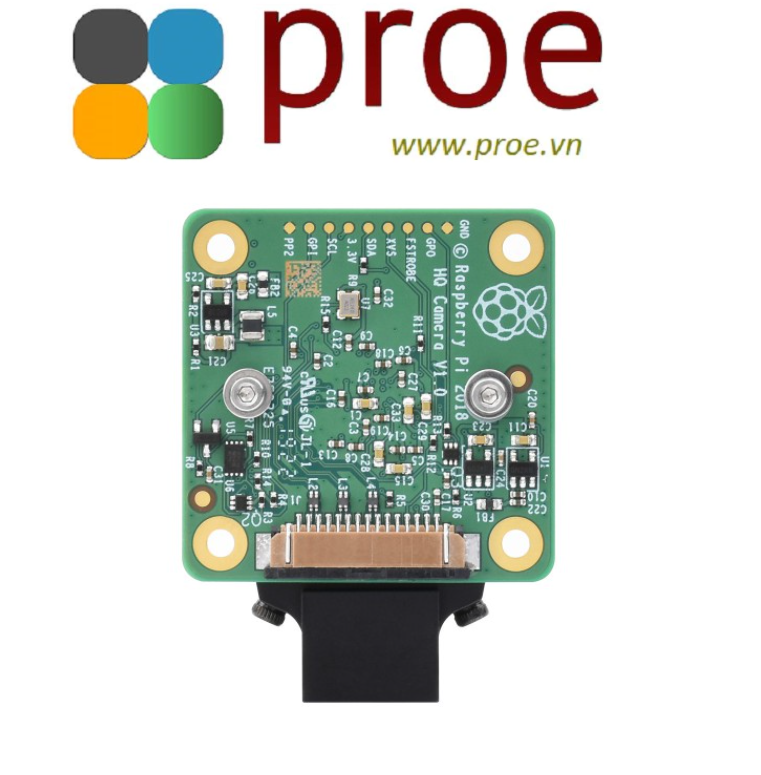

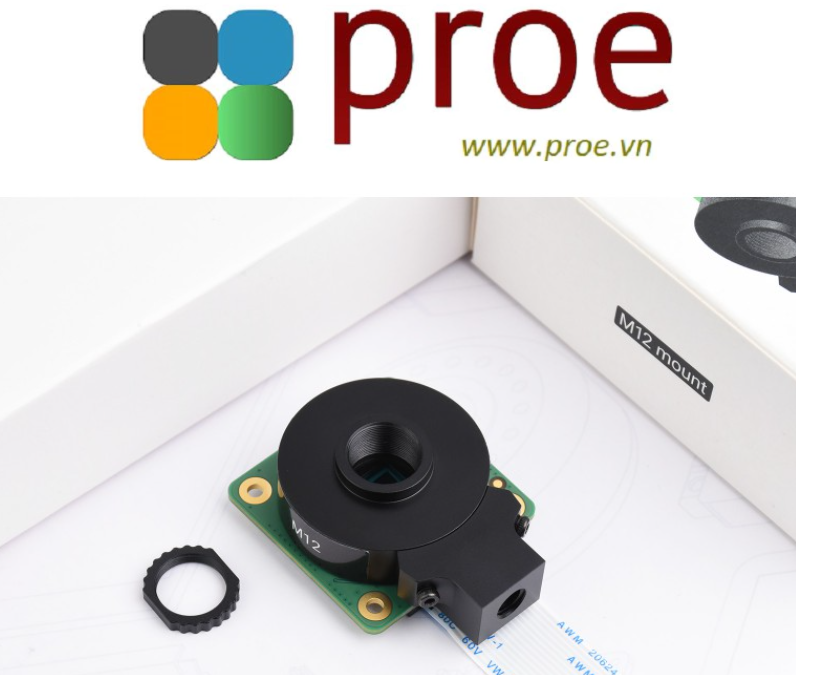

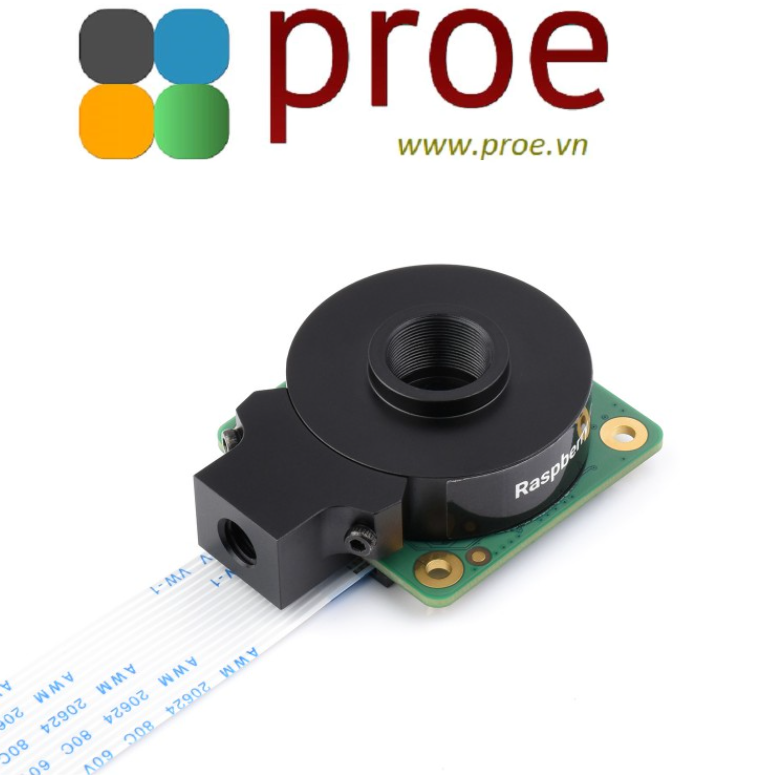

Product Show
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/Raspberry_Pi_HQ_Camera_M12
