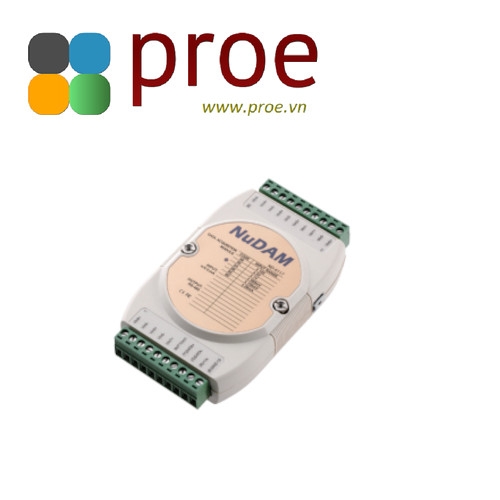

Remote I/O ND-6150/6151 Nu-DAM

Introduction

The NuDAM modules provide direct communications with a wide variety of sensors; perform signal conditioning, scaling, linearization and conversion; can acquire measurements of temperature, pressure, flow, voltage, current; and handle multiple digital signal types broadly used in IoT and other industrial applications, such as facility monitoring, environment monitoring, and industrial process control. The new ND-6117, ND-6124, ND-6150, and ND-6160 modules feature Modbus/RTU as the best remote data transmission protocol, which provides customers a comprehensive product offering.

Key feature

• 0–30 VDC output load voltage (wet contact)
• Maximum 650 mA current sink per digital output channel
• 8 isolated digital inputs (sink/source)
• Dry contact: Logical 0: open Logical 1: closed to ground Wet contact: Logical 0: 1 VDC max. Logical 1: 10–30 VDC
• Programmable host watchdog timer for host failure protection.
• Isolation protection: 3 kV

Datasheet: Link

Manual: Link
