RGB Full-Color LED Matrix Panel, 64×32 Pixels, Adjustable Brightness

WIKI: RGB-Matrix-P3-64x32

PACKAGE CONTENT

Weight: 0.248 kg

1. RGB-Matrix-P3-64x32 LED matrix and accessories x1
2. Dark brown acrylic front panel x1
3. Double-sided tape x1
4. Magnetic bolt 4pcs x1

RGB Full-Color LED Matrix Panel, 64×32 Pixels, Adjustable Brightness

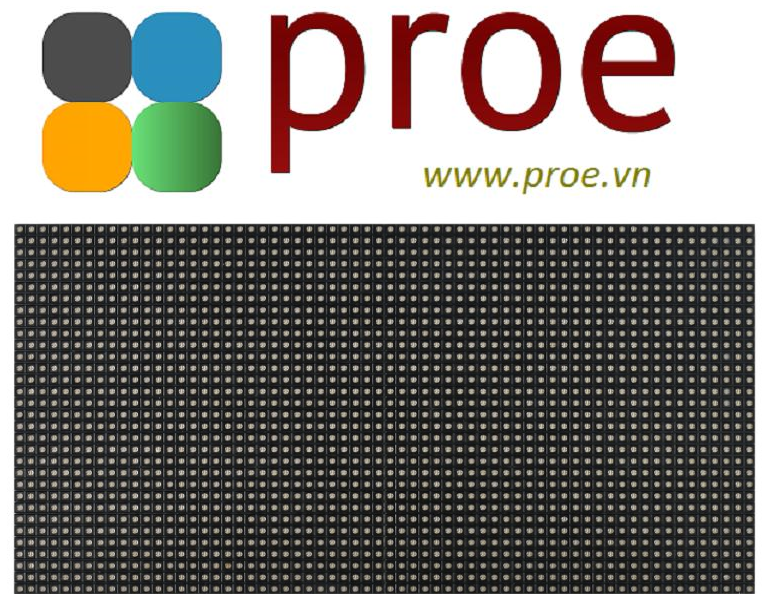

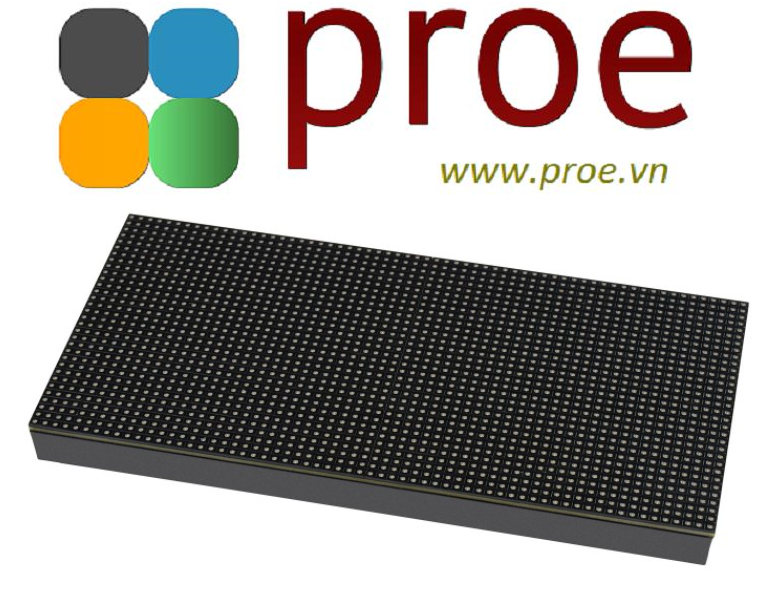

64×32 RGB LED Matrix Panel

2048 Individual RGB LEDs, 3mm Pitch

Supports Raspberry Pi, Pi Pico, ESP32, Arduino...

Features At A Glance

Maybe be on the wall of tall buildings, maybe on corners of unknown streets, you can always see the dazzling neon light, everywhere in the noisy yet energetic city. Sometimes, looking at these shining screens, you may want to make a unique one, and give it to the beautiful night as a gift. Now, this 64×32 RGB LED matrix panel will be the start to make your wish come true.

• 2048 individual RGB LEDs, full-color display, adjustable brightness

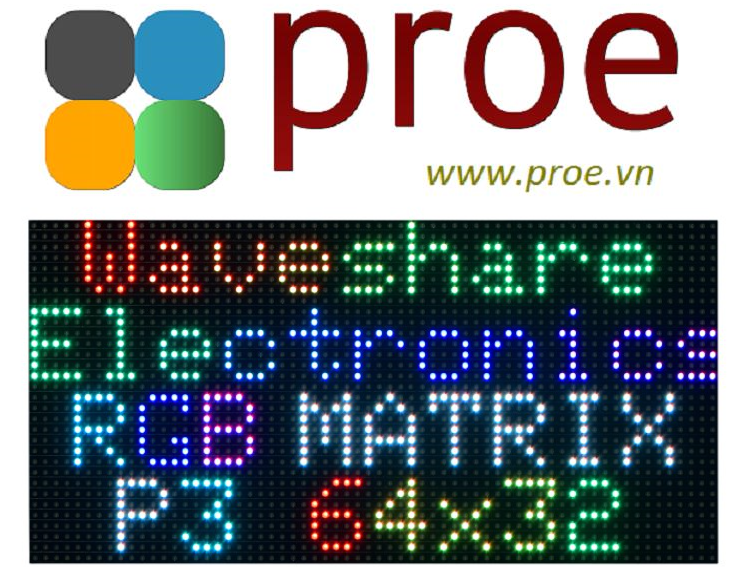

• 64×32 pixels, 3mm pitch, allows displaying text, colorful image, or animation
• 192×96mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

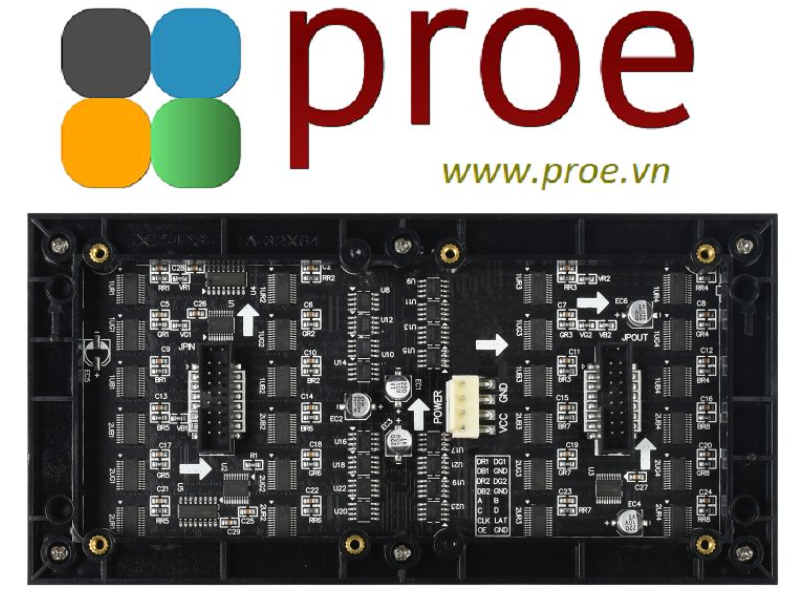

• Onboard two HUB75 header, one for controller data input, one for output, chain support
• Provides open source development resources and tutorials, for use with Raspberry Pi, Pico, ESP32, Arduino, and so on

Specifications

Header Definition

Chainable Design

Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header

Each RGB LED matrix panel requires a standalone 5V/2.5A or above power supply, when their're chianed to display.

Usage Scenarios

DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor...

Dimensions

Resources & Services
