Waveshare RP2350 CAN Development Board, Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller, Onboard XL2515 CAN Controller

Weight: 0.005 kg

RP2350-CAN x1

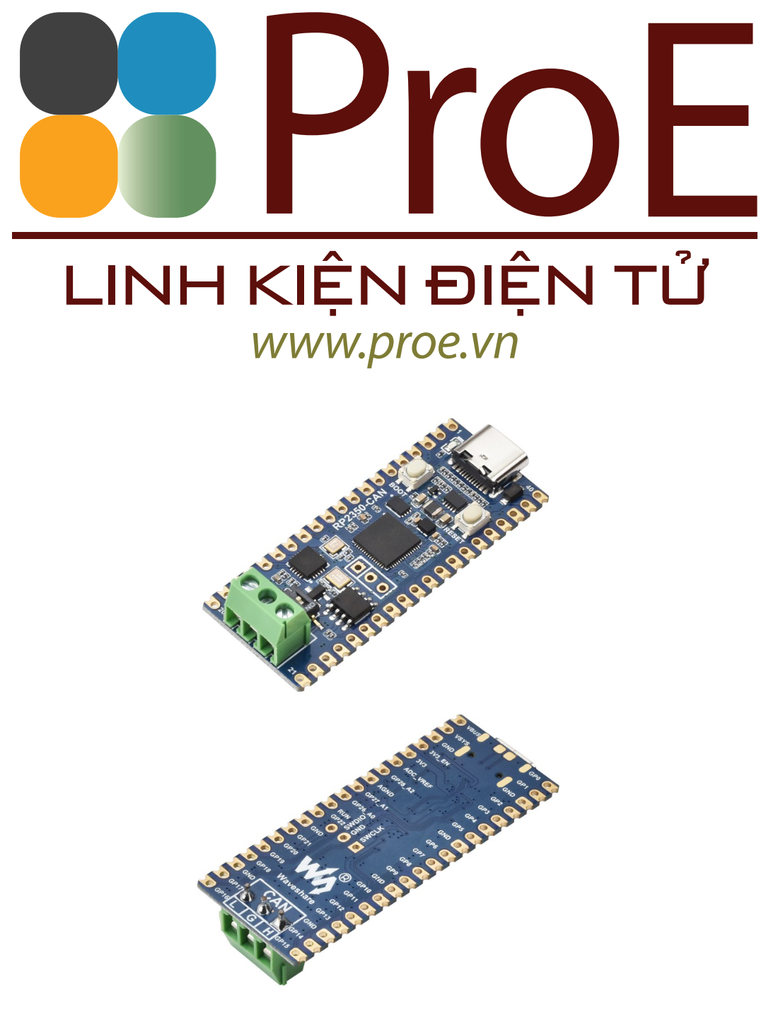

RP2350-CAN Development Board

a Pico-like MCU board based on Raspberry Pi RP2350A

Compatible with most Raspberry Pi Pico modules

Board specifications

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB SRAM and 4MB onboard Flash memory
• Onboard XL2515 CAN controller, fully supports CAN V2.0B specification with communication rate up to 1 Mbps
• Type-C connector, keeps it up to date, easier to use
• Castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

C/C++, MicroPython support

Comprehensive SDK, dev resources, tutorials to help you easily get started

dual-core, dual-architecture

Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz

onboard XL2515 CAN controller

fully supports CAN V2.0B specification and is capable of transmitting and receiving standard, extended, and remote frames. The communication rate is up to 1 Mbps with SIT65HVD230 transceiver

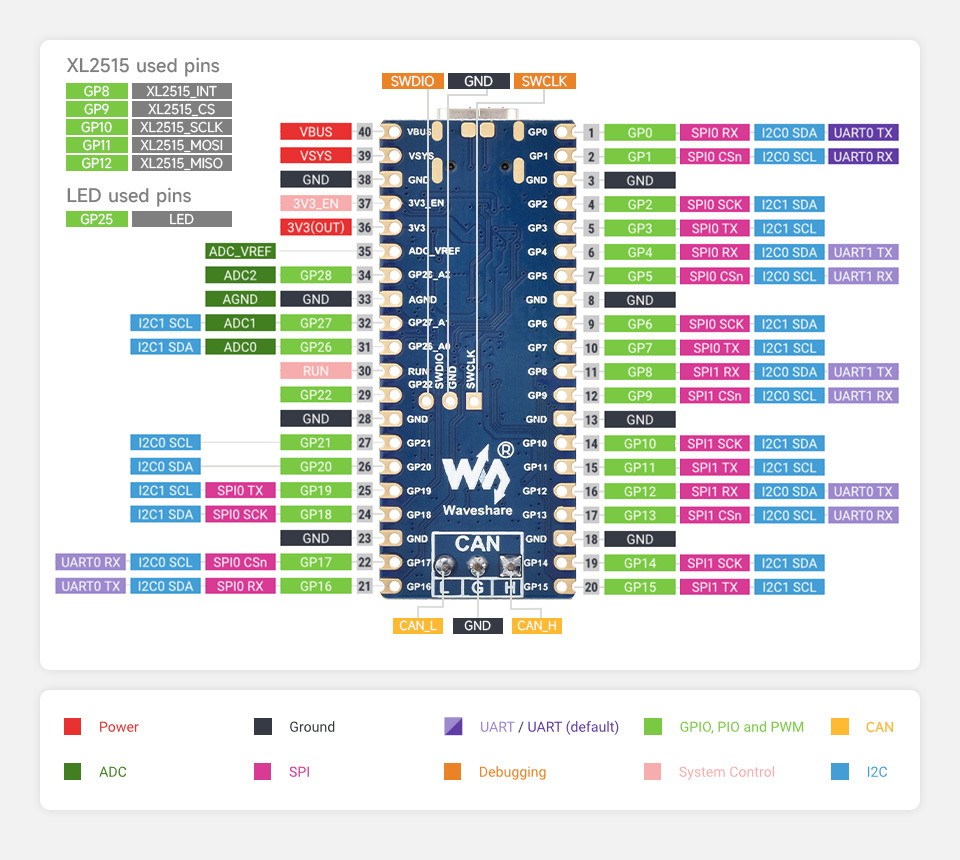

26 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

What's On Board

1. RP2350A
   Dual-core and dual-architecture design, up to 150 MHz operating frequency
2. P25Q32SH-UXH-IR
   4MB NOR-Flash
3. BOOT button
4. RESET button
5. MP28164
   high efficiency DC-DC buck-boost chip
6. User LED
   (not power indicator)
7. USB Type-C connector
   for program downloading, supports USB1.1 hosts and slave devices

8. Debug pins
9. SIT65HVD230DR
   CAN transceiver
10. XL2515QF20
    CAN controller
11. Terminal resistor selection
    enable/disable 120R matching resistor
12. CAN screw terminal
13. GPIO header
    Compatible with Raspberry Pi Pico pin header

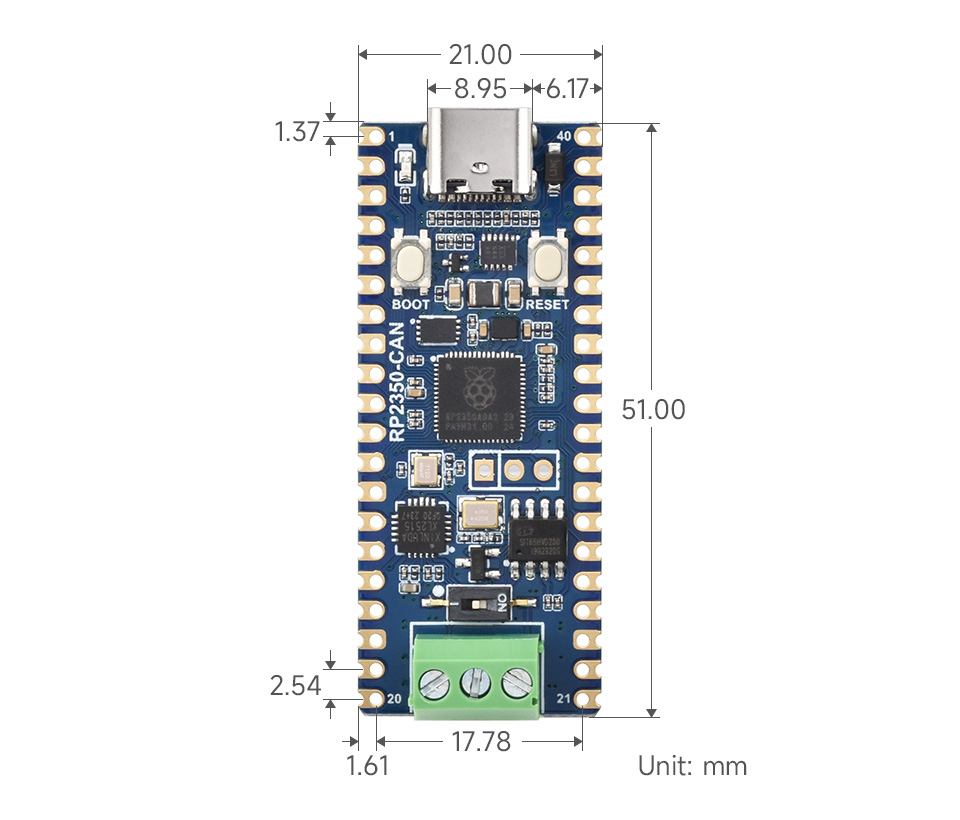

outline dimensions
