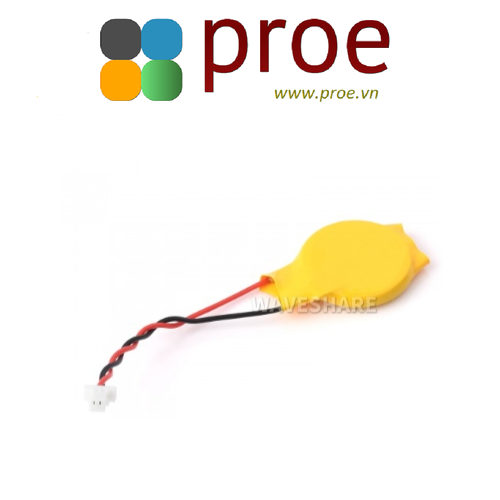

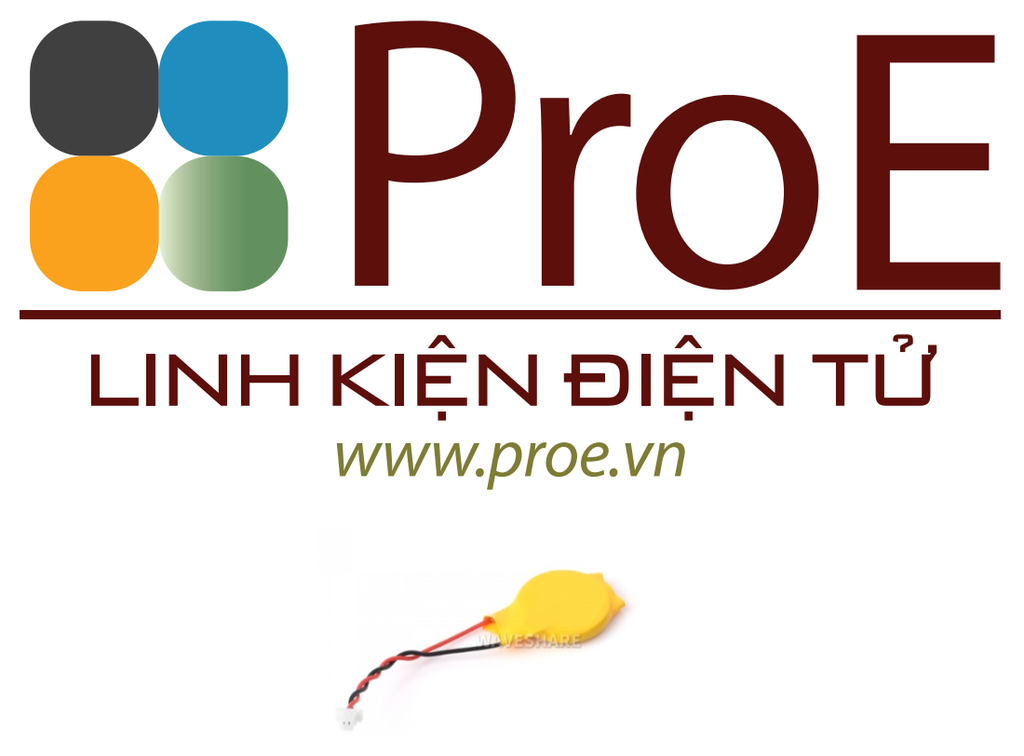

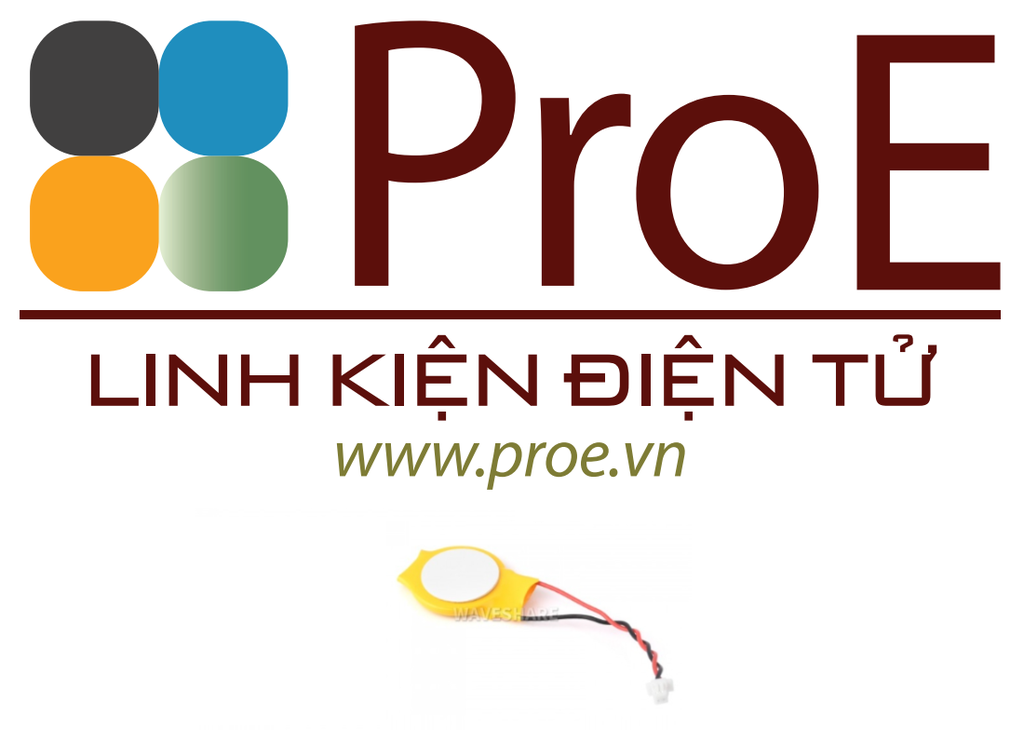

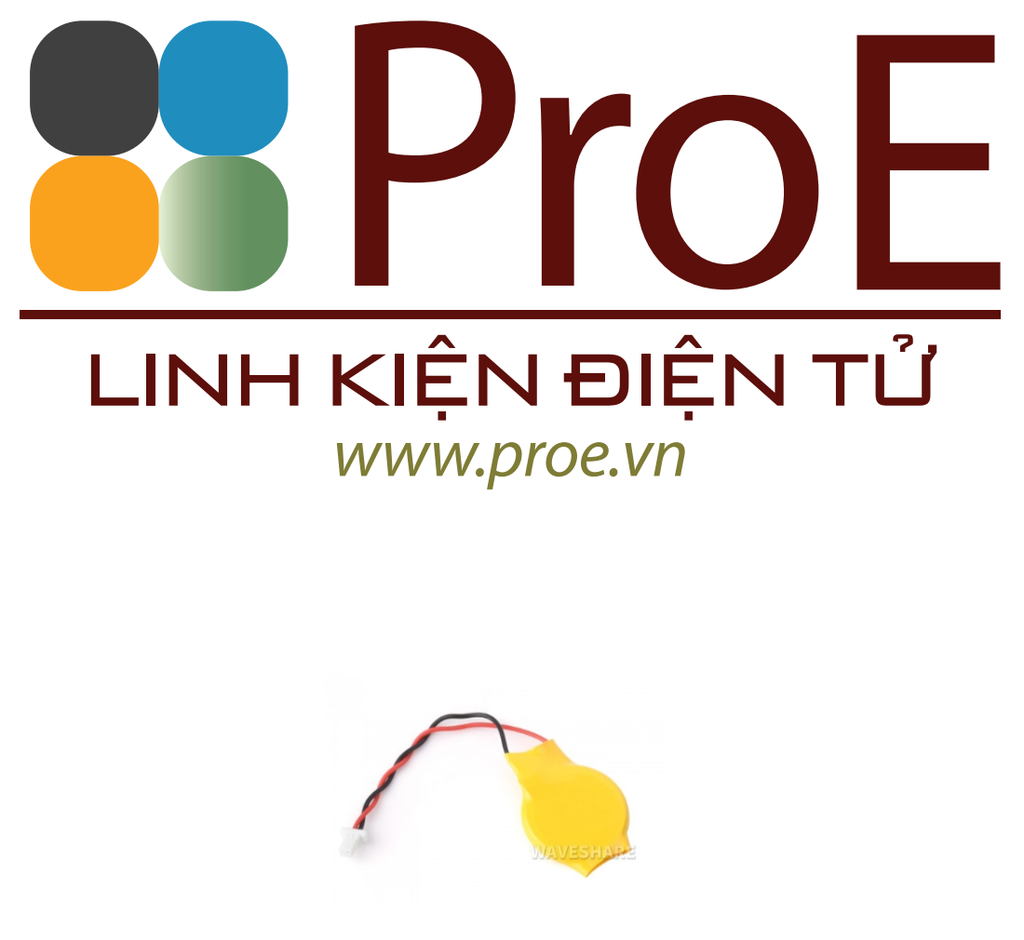

RTC Battery for Raspberry Pi 5, Supports Recharging, Options For 25mAh / 64mAh Battery Capacity, 2PIN JST Connector

  • Mã sản phẩm: RTC-Battery-A
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
40.000₫ Giá thị trường: Tiết kiệm:
Battery capacity

RTC Battery For Raspberry Pi 5, Supports Recharging, Options For 25mAh / 64mAh Battery Capacity, 2PIN JST Connector

RTC Battery For Raspberry Pi 5

Supports Recharging, 2PIN JST Connector, Available In 25mAh / 64mAh Capacity

SAFETY CAUTIONS

  • Li-ion and Li-po batteries are quite unstable. They may cause fire, personal injury, or property damage, if they're not properly recharged or used.
  • Do not reversely connect the polarities when recharging or discharging the battery. Do not use inferior charger/charging panel to recharge the battery.
  • Do not mix use old batteries with new ones, avoid using batteries of different brands.
  • When buying Lithium battery, should always make sure the battery specification is compatible with the expansion board. Choose batteries from formal manufacturer, and ensure the batteries will work stably and safely by aging test.
  • Lithium batteries have limited cycle life, they will also deteriorate as time goes by. Should be replaced with new ones when the batteries reaching their max cycle life, or working over two years, whichever comes first.
  • Should be placed carefully and properly, keep it away from inflammables and explosives articles, away from children, avoid any safety accident caused by careless storage.

Specifications

VERSION RTC-BATTERY-A RTC-BATTERY-B
BATTERY MODEL LIR2025 ML2032
BATTERY CAPACITY 25mAh 64mAh
RATED VOLTAGE 3.6V 3V
MAX VOLTAGE 4.2V 3.3V
CONNECTOR 2PIN JST connector
CABLE LENGTH 50mm
OTHERS with double-sided tape on the back

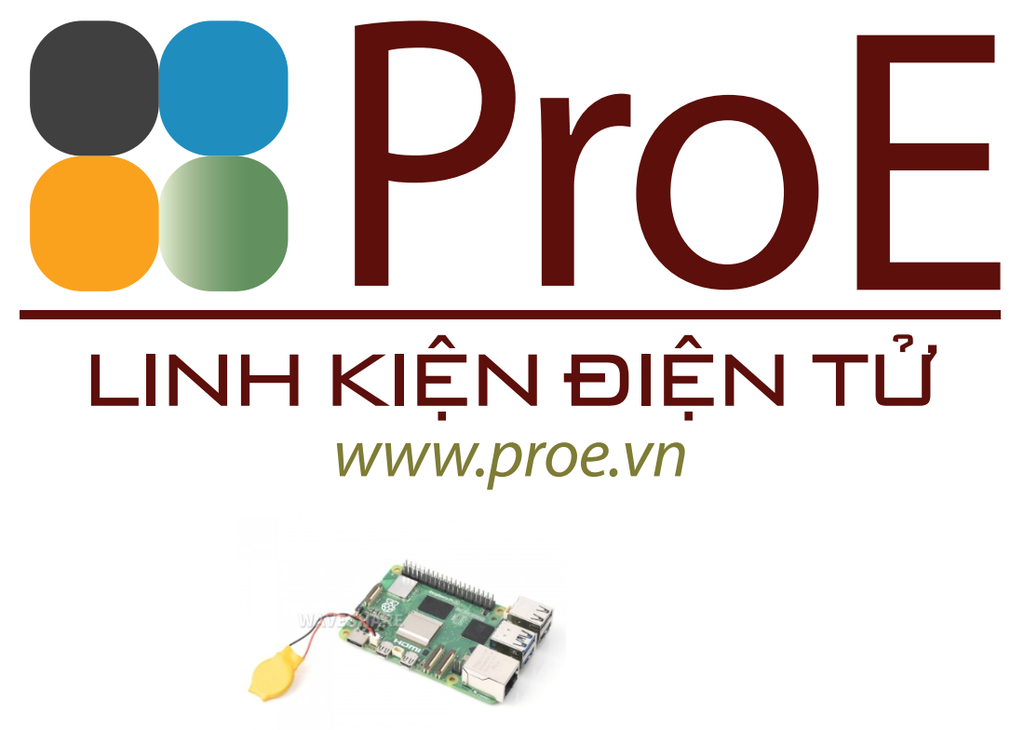

Application Example

Supports Recharging Via The Raspberry Pi 5, Ensuring Longer Battery Life

* for reference only, the Raspberry Pi 5 is NOT included.
