SIM7600G-H 4G Module

PACKAGE CONTENT

Weight: 0.018 kg

SIM7600G-H 4G Module

1. SIM7600G-H 4G Module standard version x1
2. FPC antenna x1

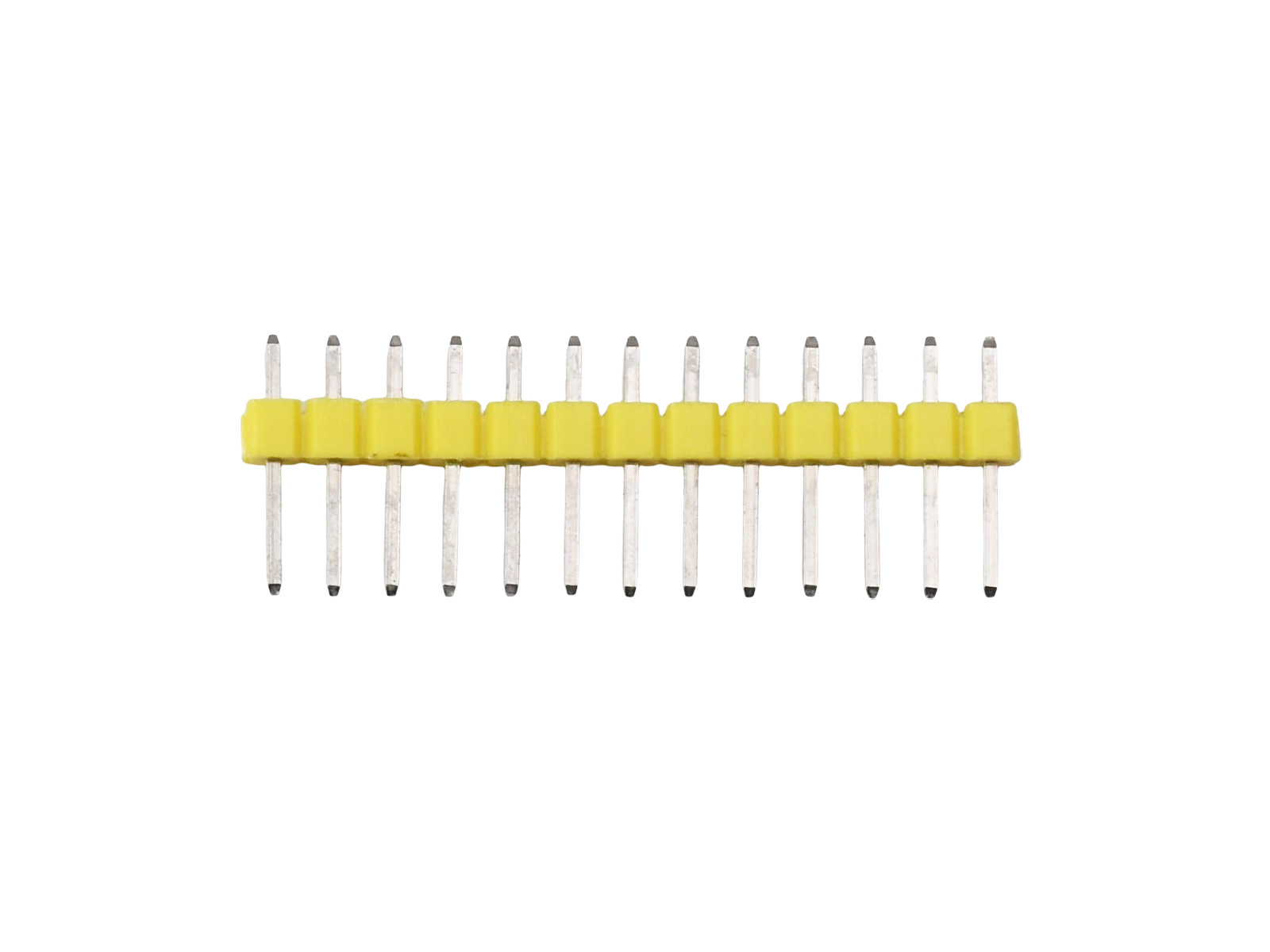

3. 13PIN straight pin header x2

1

2

3

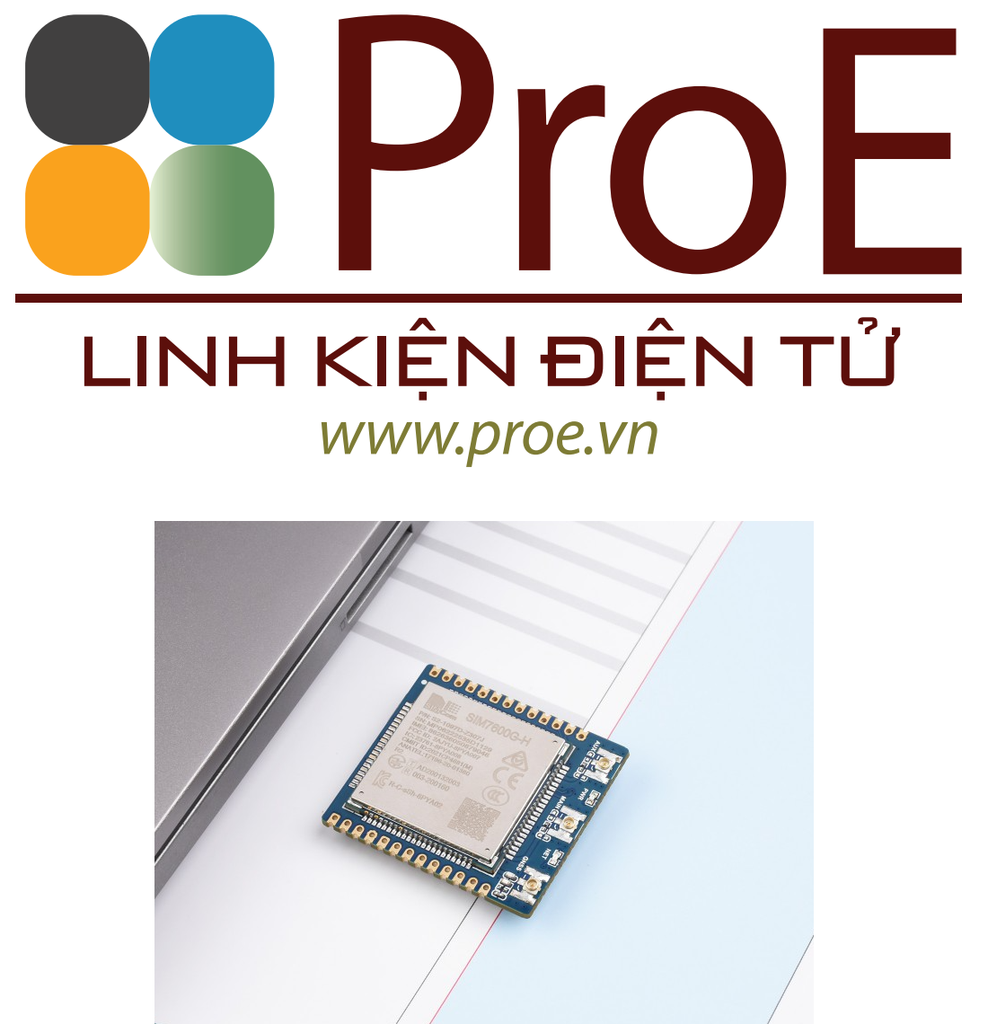

SIM7600G-H 4G Communication Module, Multi-Band Support, Compatible With 4G/3G/2G, With GNSS Positioning

SIM7600G-H 4G Module

Supports 4G/3G/2G Communication And GNSS Positioning

Version Options

Standard version
3× IPEX antenna connector, comes with 2× yellow pin header and FPC antenna

Pre-soldered version
pre-soldered SMA main antenna connector and pin header, comes with SMA antenna

Features At A Glance

• Compatible with 2G/3G/4G network with global support
• Supports dial-up, telephone call, SMS, TCP, UDP, MQTT, DTMF, HTTP, FTP, etc.
• Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
• Onboard USB and UART interface, for dial-up Internet access, cloud platform communication, GNSS positioning, etc.
• Castellated holes with immersion gold design, small size, easy to integrate into the device by soldering directly or inserting via the pin header
• Adapting USB/UART/SIM card/GPIO control pins, easy to develop and debug, better expansibility
• Built in voltage translator, compatible with 3.3V/5V MCU motherboards such as STM32/ESP32/Arduino
• Supports multiple power supply methods: USB port, VIN pin, and VBAT pin (for 3.7V lithium battery)
• Onboard multiple protection circuits: TVS protection for SIM card, power supply isolation between the USB port and pin header, VIN pin power supply anti-reverse, and so on, more safe and reliable
• 2x LED indicators, easy to monitor the operating status
• Adopts SIMCOM recommended power supply solution, supports 5~26V wide voltage power supply and 3A high current output, to prevent the module from dropping and restarting due to the large instantaneous power consumption, more stable and reliable in industrial use.
• Onboard Nano SIM card slot, supports 1.8V and 3V SIM cards, near the edge of the board design, for easy accessing SIM card
• Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
• Adapting 3-ch antenna connector, IPEX antenna connector version and SMA connector version optional, supports mass customization

Specifications

Global Band 4G / 3G / 2G Support

Dial-Up On Windows/Linux

LTE Cat-4: Up To 50Mbps (Uplink) / Up To 150Mbps (Downlink)
3G (HSPA+): Up To 5.76Mbps (Uplink) / Up To 42Mbps (Downlink)

Compatible With Multiple Platforms

Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino/STM32 Demos
And User Manuals, Easier To Develop And Integrate, And Better Expansibility

Cloud Communication

Supports Communication Protocols Including
TCP, UDP, MQTT, MQTTS, FTP, FTPS, HTTP, HTTPS...

GNSS Positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS Base Station Positioning

* GNSS antenna is NOT included By default, please choose the GNSS antenna according to your needs:

Active Ceramic Antenna
Compact size, must be used in outdoor

3m External Antenna
Supports indoor positioning near the window area, with a 3m extension cable to place the antenna receiver outdoor

SMS Sending And Receiving Support

Making Telephone Call* Or Sending SMS By AT Commands

* SIM7600G-H module supports telephone call function, since without adapting PCM and audio jack onboard, the AT commands and USB AUDIO development are required to realize telephone call via USB port

Small And Easy Integration

Castellated Design, Small Size, High Integration
Adapting Most Of The Common Interfaces, Easy To DIY And Embed Into The Device

Onboard Resources

Pinout Definition

Hardware Connection Reference

Connected To PC / Raspberry Pi / Jetson Nano Boards Via USB

Connected To 5V* MCU Such As Arduino Via UART And VIN Power Supply Header

* the VIO needs to be connected to 5V when the operating level of Arduino is 5V;
and not connected when the operating level is 3.3V

Connected To 3.3V MCU Such As ESP32 Via UART And 3V3 Power Output Header

With VBAT 3.7V Lithium battery power input

Product Show

Outline Dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/SIM7600G-H_4G_Module
