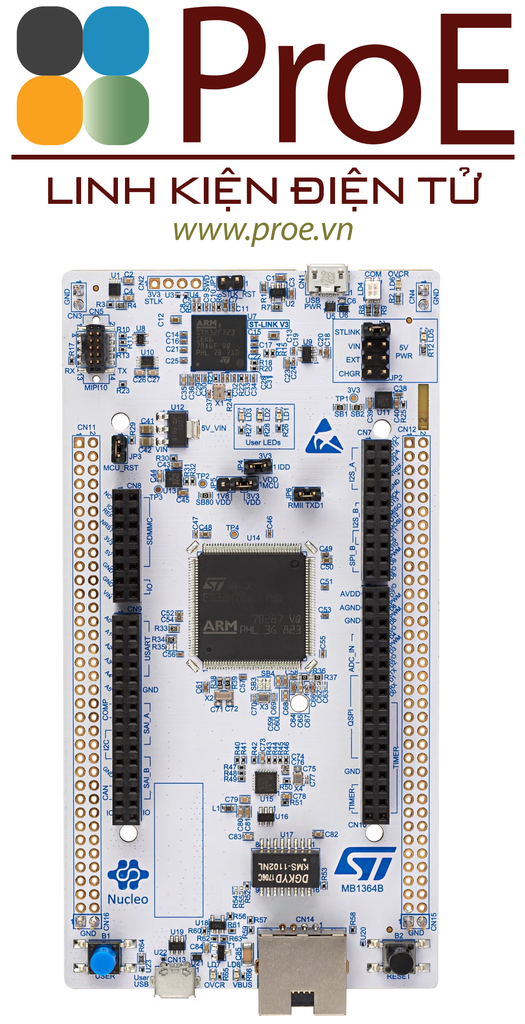

STM32 Nucleo-144 development board with STM32H753ZI MCU, supports Arduino, ST Zio and morpho connectivity

Description

The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ST Zio connector, which extends the ARDUINO^® Uno V3 connectivity, and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo-144 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STM32 Nucleo-144 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

All features

•     ○ Common features
  •        • STM32 microcontroller in an LQFP144 or a TFBGA225 package
  •        • 3 user LEDs
  •        • 2 user and reset push-buttons
  •        • 32.768 kHz crystal oscillator
  •        • Board connectors:
    •            ∙ SWD
    •            ∙ ST Zio expansion connector including ARDUINO^® Uno V3
    •            ∙ ST morpho expansion connector
  •        • Flexible power-supply options: ST-LINK USB V_BUS, USB connector, or external sources
  •        • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
  •        • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench^®, MDK-ARM, and STM32CubeIDE

•     ○ Features specific to some of the boards
  •        • External or internal SMPS to generate V_core logic supply:NUCLEO-L496ZG-P, NUCLEO-L4R5ZI-P, NUCLEO-L552ZE-Q, NUCLEO-H745ZI-Q, NUCLEO-H755ZI-Q, NUCLEO-H7A3ZI-Q, NUCLEO-U575ZI-Q, and NUCLEO-U5A5ZJ-Q
  •        • Ethernet compliant with IEEE-802.3-2002:NUCLEO-F207ZG, NUCLEO-F429ZI, NUCLEO-F439ZI, NUCLEO-F746ZG, NUCLEO-F756ZG, NUCLEO-F767ZI, NUCLEO-H563ZI, NUCLEO-H723ZG, NUCLEO-H743ZI, NUCLEO-H743ZI2, NUCLEO-H745ZI-Q, NUCLEO-H753ZI, NUCLEO-H755ZI-Q, and NUCLEO-H7S3L8
  •        • USB Device only, USB OTG full speed, or SNK/UFP (full-speed or high-speed mode)
  •        • Board connectors:
    •            ∙ MIPI20 compatible connector with trace signals (NUCLEO-H7S3L8)
    •            ∙ USB with Micro-AB or USB Type-C^®
    •            ∙ Ethernet RJ45
  •        • On-board ST-LINK (STLINK/V2-1, STLINK-V3E, or STLINK-V3EC) debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
