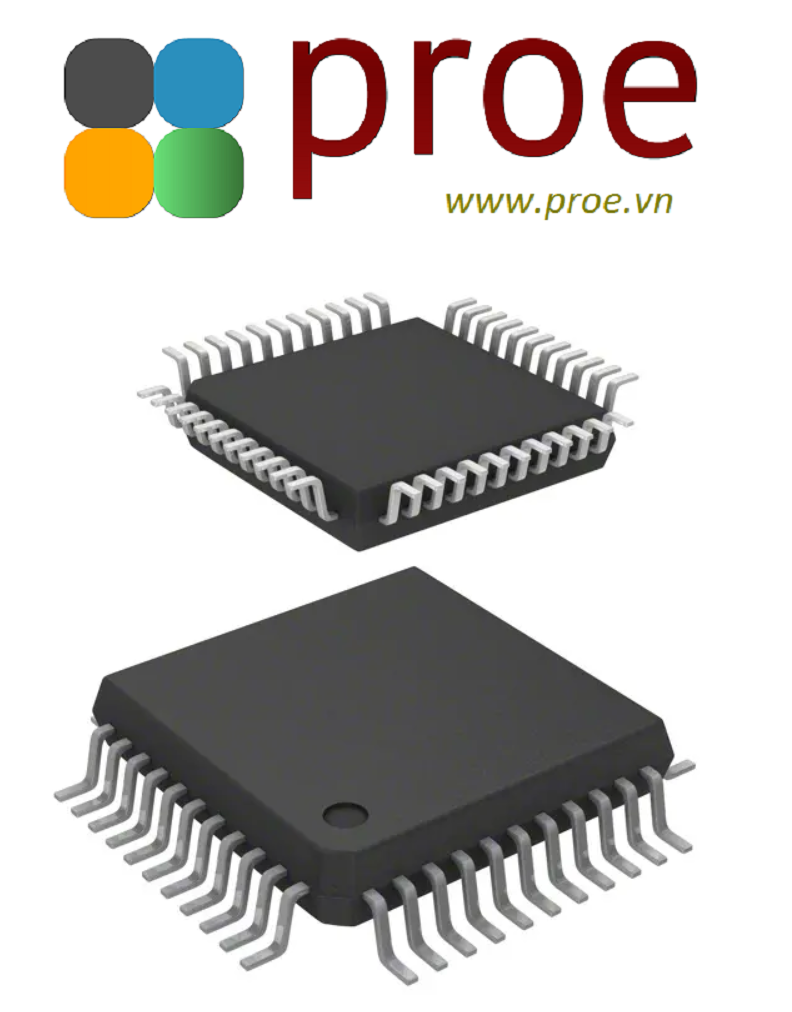

STM8S207S6T6C MCU 8-bit STM8 CISC 32KB Flash 3.3V/5V 44-Pin LQFP Tray
- Mã sản phẩm: STM8S207S6T6C
- Nhà sản xuất: STMicroelectronics
- Website hỗ trợ: https://www.proe.vn
55.000₫
STM8S207S6T6C MCU 8-bit STM8 CISC 32KB Flash 3.3V/5V 44-Pin LQFP Tray
This STM8S207S6T6C microcontroller from STMicroelectronics is perfect for users that want a fast CPU. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 24 MHz. Its ADC resolution is 10. This is a 8 bit processor. This device is based on the STM8 core architecture. Its flash program memory is 32KB. This device has a typical operating supply voltage of 3.3|5 V. Its minimum operating supply voltage of 2.95 V, while its maximum is 5.5 V.
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Family Name | STM8S |
| Instruction Set Architecture | CISC |
| Device Core | STM8 |
| Core Architecture | STM8 |
| Maximum CPU Frequency (MHz) | 24 |
| Maximum Clock Rate (MHz) | 24 |
| Data Bus Width (bit) | 8 |
| Program Memory Type | Flash |
| Program Memory Size | 32KB |
| RAM Size | 6KB |
| Maximum Expanded Memory Size | 16MB |
| Programmability | Yes |
| Interface Type | CAN/I2C/SPI/UART |
| Number of I/Os | 34 |
| No. of Timers | 3 |
| PWM | 1 |
| Number of ADCs | Single |
| ADC Channels | 9 |
| ADC Resolution (bit) | 10 |
| USART | 0 |
| UART | 2 |
| USB | 0 |
| SPI | 1 |
| I2C | 1 |
| I2S | 0 |
| CAN | 1 |
| Ethernet | 0 |
| Watchdog | 2 |
| Special Features | CAN Controller |
| Minimum Operating Supply Voltage (V) | 2.95 |
| Typical Operating Supply Voltage (V) | 5|3.3 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Maximum Power Dissipation (mW) | 443 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Packaging | Tray |
| Standard Package Name | QFP |
| Pin Count | 44 |
| CECC Qualified | No |
| Supplier Package | LQFP |
| Mounting | Surface Mount |
| Package Height | 1.4 |
| Package Length | 10 |
| Package Width | 10 |
| PCB changed | 44 |
| Lead Shape | Gull-wing |
