Tiva C Series TM4C1294

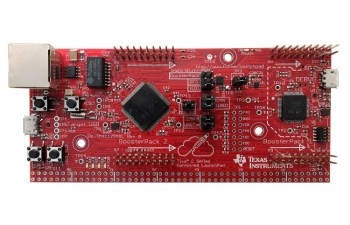

The Tiva™ C Series TM4C1294 Connected LaunchPad Evaluation Board is a low-cost evaluation platform for ARM® Cortex-M4-based microcontrollers. The Connected LaunchPad design highlights the TM4C1294NCPDT microcontroller with its on-chip 10/100 Ethernet MAC and PHY, USB 2.0, hibernation module, motion control pulse-width modulation and a multitude of simultaneous serial connectivity.

Features

• High Performance TM4C1294NCPDT MCU:
  • 120MHz 32-bit ARM Cortex-M4 CPU
  • 1MB Flash, 256KB SRAM, 6KB EEPROM
  • Integrated 10/100 Ethernet MAC+PHY, data protection hardware, 8x 32-bit timers
  • Dual 12-bit 2MSPS ADCs, motion control PWMs
  • USB H/D/O, and many additional serial communication interfaces
• Dual, stackable BoosterPack XL connection sites
• Cloud-based, Exosite QuickStart Application
• TivaWare 2.1
• On-board, in-circuit debug interface (ICDI)
• Multiple development tool chain support: CCS, Keil, IAR, Mentor & GCC

What's Included

• TM4C1294 Connected LaunchPad evaluation kit (EK-TM4C1294XL PCBA w/MCU)
• Retractable Ethernet cable
• USB debug cable
• Read Me First instructions

EK-TM4C1294XL TivaWare for C Series software is available for free downloads.

Click here for the Connected LaunchPad training workshop.
