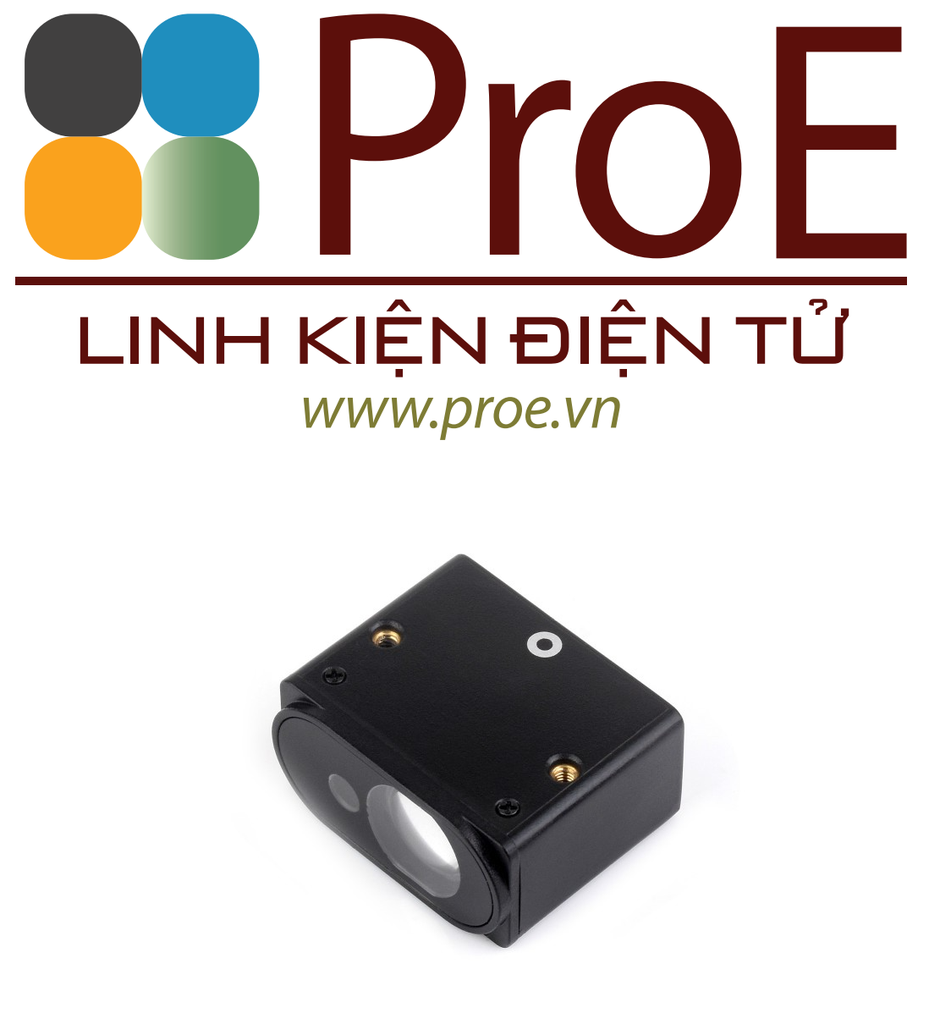

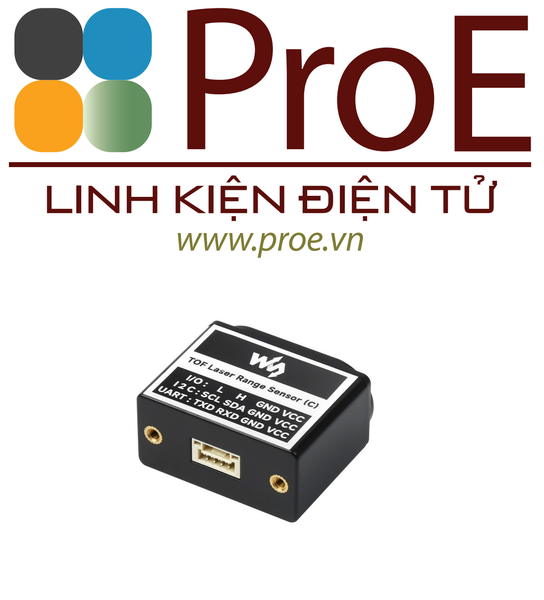

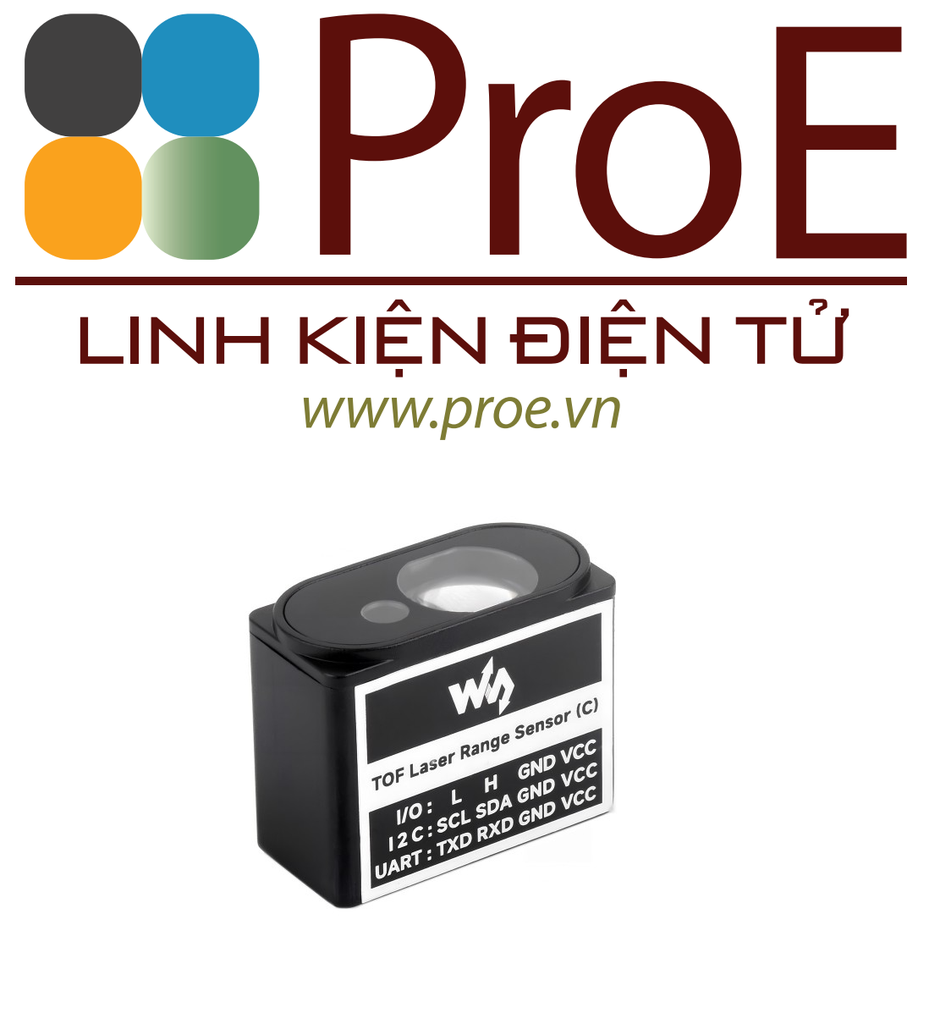

TOF Laser Range Sensor (C)
- Mã sản phẩm: TOF Laser Range Sensor (C)
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
880.000₫
- Package Content
-
Weight: 0.01 kg
- TOF Laser Range Sensor (C) x1
- GH1.25 4PIN squid wire x1
1
2
TOF (time of flight) Laser Range Sensor (C), UART / I2C / IO Communication Support, Long Range
TOF Laser Range Sensor (C)
long range | short blind zone | stable/accurate/sensitive | indoor/outdoor
Product overview
The TOF Laser Range Sensor (C) is a TOF-based (time of flight) laser ranging sensor with embedded MCU and ranging algorithm, which is capable of offering up to 25m measuring range, and ±3cm accuracy. It supports UART or I2C communication bus, features longer measuring distance and higher light interference tolerance capability due to its ultra narrow FOV, suitable for either indoor or outdoor condition. And its ambient light tolerance is up to 100K LUX.
This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as drone altitude setting / ceiling detection, and more...
Specifications
| Typical measuring range | 0.05 ~ 25.0m |
|---|---|
| Typical measuring accuracy | 0.05 ~ 25m ±3cm |
| Wavelength | 905nm |
| Field of view (FOV) | 1° ~ 2° |
| Communication interface | Default: UART (3.3V TTL signal level) |
| I2C (cascading support, the slave address is 0x08+module ID) | |
| complementary I/O level output (distance parameter is not available in this mode) | |
| Baudrate | UART: 4.8Kbps ~ 3000Kbps (921.6Kbps by default) |
| I2C: up to 400Kbps | |
| Power supply | 4.3 ~ 5.2V |
| Power consumption | 250mW (UART active output, 5.0V power supply, 50mA current) |
| Weight | 7.7g |
| Operating temperature | -10°C ~ 60°C |
| Dimensions | 22.7mm × 28mm × 13.6mm (L × W × H) |
Cost effective solution
0.05 ~ 25m long range low cost ranging module
high stability, high accuracy, high sensitivity ranging
UART / I2C / IO communication support
UART mode: supports active query output
I2C mode: up to 8x cascades
I/O mode: unable to output distance parameter
applications
Hydraulic Stacking Detection
Hardware connection
connecting with Raspberry Pi (via I2C)
connecting with Raspberry Pi (via UART)
connecting with Raspberry Pi (via I/O pins)
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/TOF_Laser_Range_Sensor_(C)
