TUL CORPORATION 1M1-M000127DVA

Development Kit, TUL PYNQ-Z2 Advanced Kit, Zynq SoC, Xilinx University, PYNQ Development

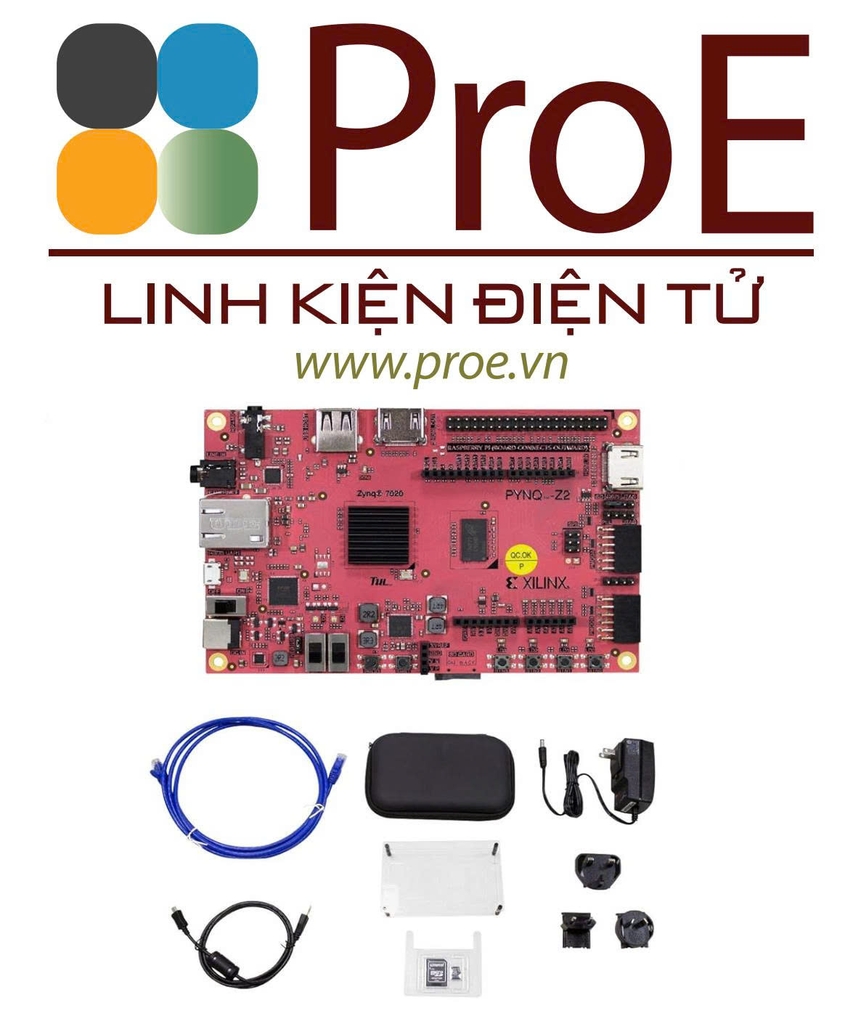

1M1-M000127DVA is a TUL PYNQ™-Z2 Advance kit. TUL PYNQ™-Z2 board, based on Xilinx Zynq SoC, is designed for the Xilinx University Program to support the PYNQ (Python Productivity for Zynq) framework and embedded systems development.

• 650MHz dual-core Cortex-A9 processor, Arduino header, Raspberry Pi, Pmods x2 interfaces GPIO
• High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
• Low-bandwidth peripheral controller: SPI/UART/CAN/I2C, programmable from JTAG/Quad-SPI flash/microSD
• Programmable logic equivalent to Artix-7 FPGA, on-chip analogue-to-digital converter (XADC)
• 13,300 logic slices, each with four 6-input LUTs and 8 flip-flops, 630KB of fast block RAM
• 4 clock management tiles, each with a phaselocked loop and mixed-mode clock manager, 220 DSP slices
• Dual-core ARM Cortex-A9 processor, 1.3M reconfigurable gates FPGA
• 512MB DDR3 / 128Mbit FLASH memory, Micro SD card slot storage
• 10/100/1000 Ethernet network, HP+Mic, Line in, ADAU1761 AUDIO codec audio
• Dimension is 86.86mm x 139.97mm
