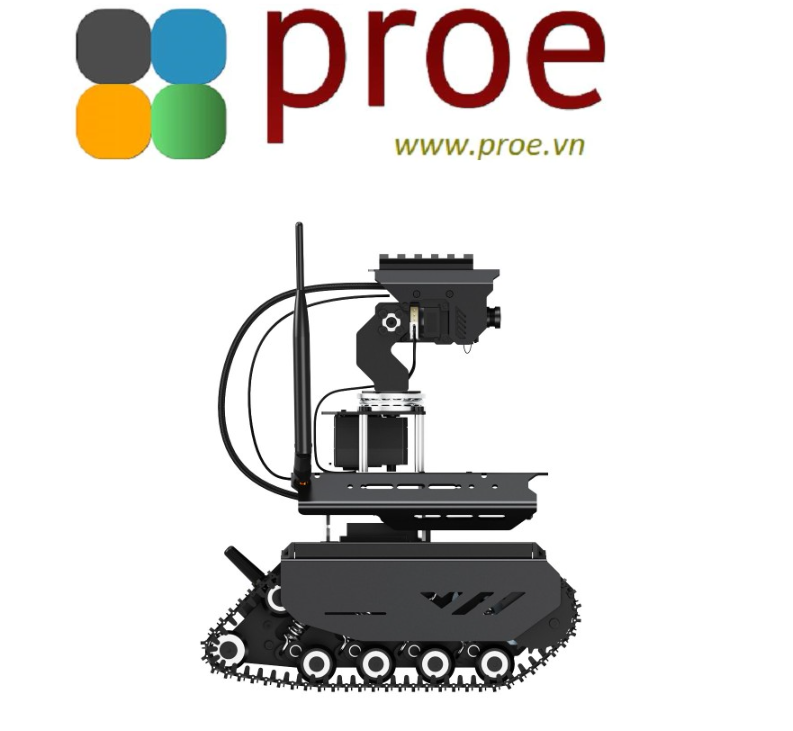

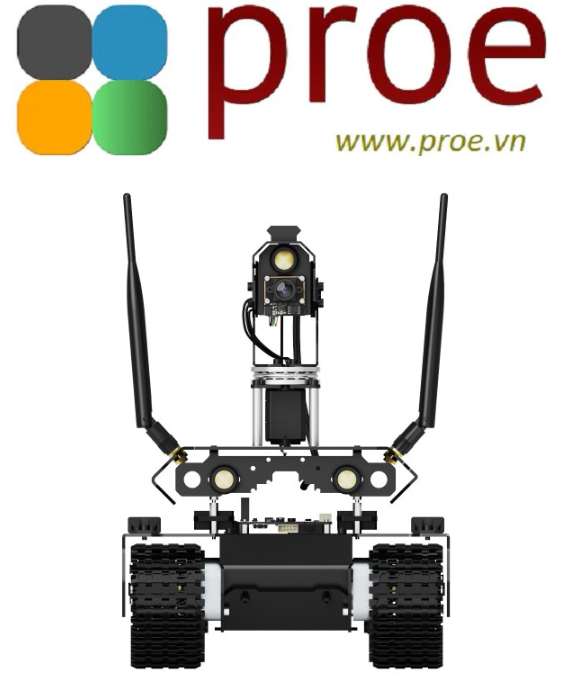

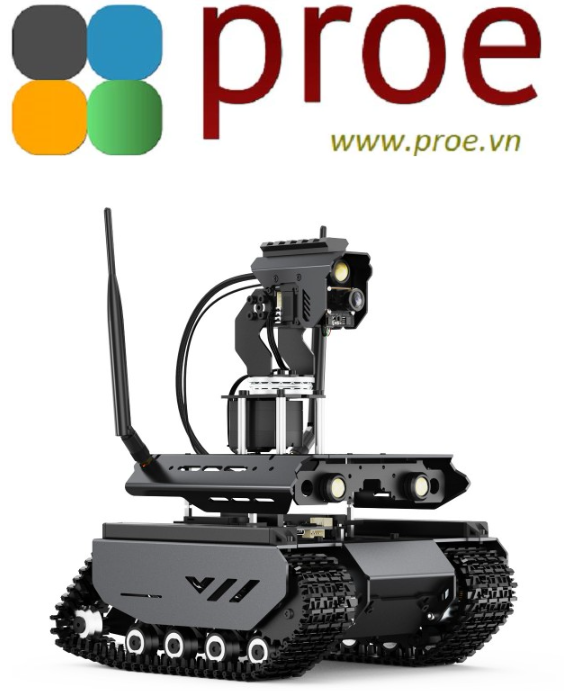

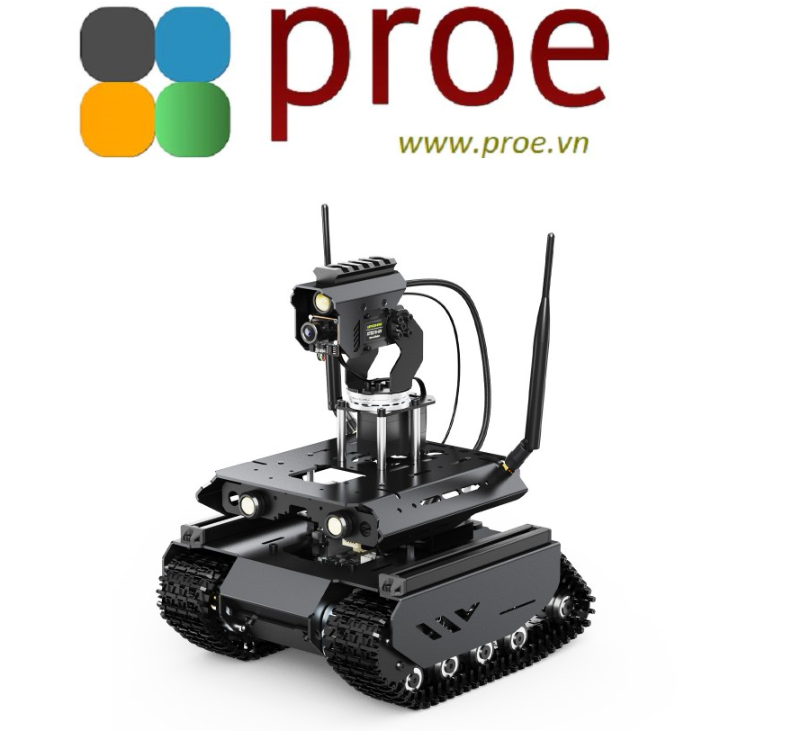

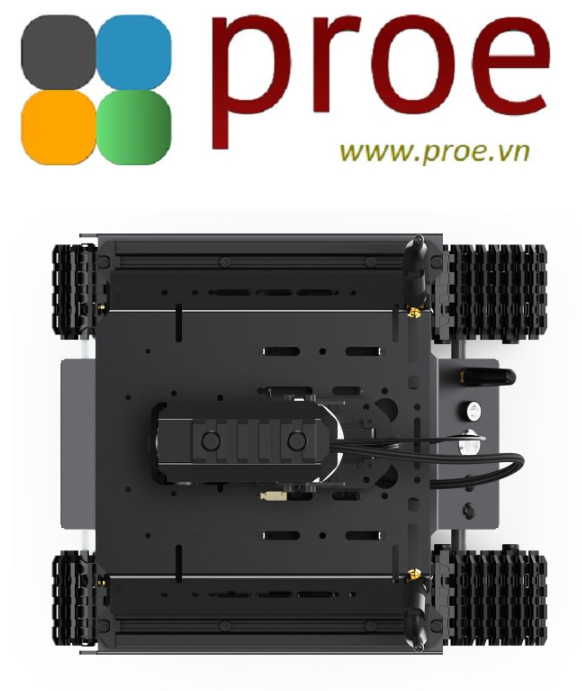

UGV Beast PT Jetson Orin AI Kit Acce (EN)

  • Mã sản phẩm: UGV Beast PT Jetson Orin AI Kit Acce (EN)
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
10.900.000₫
PACKAGE CONTENT

Weight: 1.285 kg

UGV Beast PT Jetson Orin AI Kit

UGV Beast Open-Source Off-Road Tracked AI Robot For Jetson Orin Series Board, Dual Controllers, With Multi-Functional Driver Board And 360° Flexible Omnidirectional Pan-Tilt, Optional For Jetson Orin Nano 4GB Kit

UGV Beast AI Robot for Jetson Orin, usage scenario UGV Beast AI Robot for Jetson Orin, features

Features At A Glance

The UGV Beast is an AI robot designed for exploration and creation, with excellent expansion potential, seamlessly connecting your imagination with reality. Suitable for tech enthusiasts, makers, or beginners in programming, it is your ideal choice for exploring the world of intelligent technology.

Equipped with the high-performance Jetson Orin series computer to meet the challenges of complex strategies and functions, and inspire your creativity. Adopts dual-controller design, combines the high-level AI functions of the host controller with the high-frequency basic operations of the sub controller, making every operation accurate and smooth.

Easy to be controlled remotely via UGV Beast Web Application without downloading any software, just open your browser and start your journey. Supports high-frame rate real-time video transmission and multiple AI Computer Vision functions, the UGV Beast is an ideal platform to realize your ideas and creativity!



Kit Selection

Options for host controller (Jetson Orin Nano 4GB Kit), or you can choose the Acce Version if you've got a Jetson Orin module (including its baseboard).

MODEL UGV Beast PT Jetson Orin AI Kit
(Jetson Orin Nano 4GB Kit + UGV Beast PT accessories pack)
UGV Beast PT Jetson Orin AI Kit Acce
(the UGV Beast PT accessories pack only)
UGV Beast PT Jetson Orin AI Kit UGV Beast PT Jetson Orin AI Kit Acce
DIMENSION 196*231*286 mm
WEIGHT 2854.5±5 g 2679.5±5 g
CHASSIS HEIGHT 26mm
PAN-TILT DOF 2
PAN-TILT SERVO TORQUE 30KG.CM
PAN-TILT SERVO ST3215 Servo
HOST CONTROLLER Jetson Orin Nano 4GB Kit NOT included
HOST SYSTEM SUPPORT ubuntu 22.04
ROS2 VERSION ROS2-HUMBLE-LTS
CAMERA FOV 160°
POWER SUPPLY 3S UPS Module
BATTERY SUPPORT 18650 lithium battery x 3 (NOT included)
DEMO CONTROL METHODS Web application / Jupyter Lab interactive programming
DEFAULT MAX SPEED 035m/s
NUMBER OF DRIVING WHEELS 2
SUSPENSION MATERIAL Stainless steel
TRACK WIDTH 40mm
MINIMUM TURNING RADIUS 0M (In-situ rotation)



Powered By Jetson Orin Series Computer

Optional For Jetson Orin Nano 4GB Kit, Provides Up To 20 TOPS AI Performance. Comes With A 128 GB NVMe Solid State Drive, High-Speed Reading/Writing, Meet The Needs Of Large AI Project Development

UGV Beast AI Robot for Jetson Orin, with dual-controller design



Dual-Controller Design, Provides Efficient Collaboration And Upgraded Performance

The Host Controller Adopts Jetson Orin Nano For AI Vision And Strategy Planning, And The Sub Controller Uses ESP32 For Motion Control And Sensor Data Processing.
Improves The Processing Efficiency And Response Speed Of The Host Computer Without Bearing All Tasks. The Sub Controller Focuses On Basic Functions To Ensure The Accurate And Smooth Actions Of Robot.

UGV Beast AI Robot for Jetson Orin, with dual-controller design

360° Flexible Omnidirectional Pan-Tilt

Equipped With 5MP 160° Wide-Angle Camera For Capturing Every Detail

UGV Beast AI Robot for Jetson Orin, with omnidirectional Pan-Tilt



UGV Beast AI Robot for Jetson Orin, Pan-Tilt control demo

Supports Pan-Tilt drag-and-drop control via mouse or touch panel of the laptop, providing a better control experience as FPS games





Suitable For Tactical Extension

Comes With 21mm Wide Rail And 30KG.CM 45RPM High-Torque Bus Servo For Tactical Extension

UGV Beast AI Robot for Jetson Orin, suitable for tactical extension

for reference only, the accessories in the picture above are NOT included



Continuing The Adventure As Night Falls

High-Brightness LED Light For Ensuring Clear Images In Low-Light Conditions

UGV Beast AI Robot for Jetson Orin, low-light conditions working demo

Standard Aluminum Rail

Comes With 2 × 1020 European Standard Profile Rails, And Supports Installing Additional Peripherals Via The Boat Nuts To Meet Different Needs, Easily Expanding The Special Operation Scenarios

UGV Beast AI Robot for Jetson Orin, with standard Aluminum rail for installing additional peripherals

Supports Driving In Complex Terrain

Adopts Tracked Mobile Robot Chassis With Independent Suspension Systems For More Stable Off-Road Crossing Ability

UGV Beast AI Robot for Jetson Orin, supports driving in complex terrain





Comes With A Multi-Functional
Mounting Plate

Can Be Used To Install A Variety Of Peripherals, Including D500 Lidar, STL-27L Lidar, Camera, Or Other Modules. Open Source For DXF Drawing And 3D Model, Which Is More Convenient For Secondary Development.

UGV Beast AI Robot for Jetson Orin, can be used to install a variety of peripherals

Easy To Control Via
Cross-Platform Web Application

No App Installation Required, Allows Users To Connect And Control The Robot Via Mobile Phones, Tablets And Computers Via Browser Web App. Supports Shortcut Key Control Such As WASD And The Mouse Via A PC With Keyboard

UGV Beast AI Robot for Jetson Orin, can be controlled via Web Application

Real-Time Wireless Transmission Of High Frame Rate Video

Adopts Flask Lightweight Web Application, Based On WebRTC Ultra-Low Latency Real-Time Transmission, Using Python Language And Easy To Extend, Working Seamlessly With OpenCV

UGV Beast AI Robot for Jetson Orin, with real-time wireless transmission support



Recognition, Tracking, And Targeting

Based On OpenCV To Achieve Color Recognition And Automatic Targeting. Supports One-Key Pan-Tilt Control And Automatic LED Lighting, Allows Expansion For More Functions

UGV Beast AI Robot for Jetson Orin, color recognition and automatic targeting demo



Face Detection:
Automatic Picture Or Video Capturing

Based On OpenCV To Achieve Face Recognition, Supports Automatic Photo Taking Or Video Recording Once A Face Is Recognized

UGV Beast AI Robot for Jetson Orin, face recognition demo



Intelligent Object Recognition

Supports Recognizing For Many Common Objects With The Default Model

UGV Beast AI Robot for Jetson Orin, object recognition demo



Gesture Recognition:
AI Interaction With Body Language

Combines OpenCV And MediaPipe To Realize Gesture Control Of Pan-Tilt And LED

UGV Beast AI Robot for Jetson Orin, photo taking gesture control demo

Gesture control for photo taking

 UGV Beast AI Robot for Jetson Orin, blacklight control gesture control demo

LED ON/OFF and brightness control

More MediaPipe Demos For Easily Creating
Complex Video Processing Tasks

MediaPipe is an open-source framework developed by Google for building cross-platform multimedia processing pipelines, provides a set of pre-built components and tools, its high-performance processing capability enables the robot to respond to and process complex multimedia inputs such as real-time video analytics.

UGV Beast AI Robot for Jetson Orin, face recognition demo

Face Recognition

 UGV Beast AI Robot for Jetson Orin, attitude detection demo

Attitude Detection

Vision Line Tracking For Autonomous Driving

Integrated With Vision Line Tracking Function On The Computer Vision Demo, Comes With Yellow Tape For Easier Planning A Path For The Robot. Users Can Understand The Basic Algorithms Of Autonomous Driving With This Simple Demo

UGV Beast AI Robot for Jetson Orin, vision line tracking demo

Reserved Space For Expanding Peripherals

Reserved Space On The Mounting Plate With M2.5 Mounting Holes, For Installing D500 / STL27L LIDAR Or Other Peripherals

UGV Beast AI Robot for Jetson Orin, with mounting plate for expanding peripherals

* Comes with screws and cables for installing the D500 LIDAR, please refer to WIKI for more details. The D500 LIDAR and battery set are NOT included.

Multiple Audio Interaction Methods

Equipped With Audio Driver Board, Dual-Track Speaker, And Onboard Microphone, Built In 3.5mm Audio Jack For Connecting Peripherals To Achieve Text-To-Speech And Audio Playing

UGV Beast AI Robot for Jetson Orin, with multiple audio interaction methods

Obtains Real-Time Information Feedback

Real-Time Monitoring The Operating Status Of The Robot

UGV Beast AI Robot for Jetson Orin to obtain real-time information feedback

Web Page Command Line Tool
Multiple Functions For Easier Expansion

Quick To Set Up, Easy To Expand
Easily Customize And Add New Functions Without Modifying Front-End Code

UGV Beast AI Robot for Jetson Orin, with Web page command line tool





ESP-NOW Wireless Communication
Between Robots

Based On ESP-NOW Communication Protocol, Multiple Robots Can Communicate With Each Other Without IP Or MAC Address, Achieving Multi-Device Collaboration With 100-Microsecond Low-Latency Communication

UGV Beast AI Robot for Jetson Orin, with ESP-NOW wireless communication support

Supports Pan-Tilt Vertical Stabilization Function For Various Road Conditions

Supports Camera Stabilization Function Based On IMU Sensor To Keep The Image Stable. Realizes IMU Data Reading, Calculation And Pan-Tilt Control Via Sub Controller, Which Will Not Occupy Computing Resources Of The Host

UGV Beast AI Robot for Jetson Orin, supports Pan-tilt vertical stabilization function

Gamepad Control For Better Operation Experience

Comes With A Wireless Gamepad, Making Robot Control More Flexible. You Can Connect The USB Receiver To Your PC And Control The Robot Remotely Via The Internet. Provides Open Source Demo For Customizing Your Own Interaction Method

UGV Beast AI Robot for Jetson Orin, supports wireless gamepad control

Realizes Remote Control Across The Internet

  • Our web application demos are based on WebRTC for real-time video transmission.
  • WebRTC (Web Real-Time Communications) is a technology that enables web applications and sites to establish peer-to-peer connection and capture optionally stream audio and/or video media, as well as to exchange arbitrary data between browsers without requiring an intermediary.
  • We provide comprehensive Ngrok tutorials* to help you get started quickly and realize robot control across the internet.

UGV Beast AI Robot for Jetson Orin, web application demos are based on WebRTC for real-time video transmission and robot remote control

* Provides the usage tutorials of Ngrok only, we do not provide any Ngrok accounts or Servers. You can follow our tutorial to open your own Ngrok service, or choose other tunneling services according to your needs.

Supports Installing Smartphone Holder

If You Have A Spare Phone, You Can Install It On The Robot Via Holder As Below, Using The Phone To Create A Hotspot For The Robot And Achieving Remote Control Across The Internet At A Lower Cost

UGV Beast AI Robot for Jetson Orin, supports installing smartphone holder

* Comes with a smartphone holder with 1/4″ screw in the package

Cross-Platform Interactive Tutorial
Develop While You Learn

Supports Accessing Jupyter Lab Via Devices Such As Mobile Phones And Tablets To Read The Tutorials And Edit The Code On The Web Page, Making Development Easier

UGV Beast AI Robot for Jetson Orin, supports accessing via Jupyter Lab



UGV Beast AI Robot for Jetson Orin, controlled by Jupyter Lab via PC



Rich Tutorial Resources

We Provide Complete Tutorials And Demos To Help Users Get Started Quickly For Learning And Secondary Development

UGV Beast AI Robot for Jetson Orin, host controller tutorials introduction UGV Beast AI Robot for Jetson Orin, host controller learning tutorials introduction UGV Beast AI Robot for Jetson Orin, sub controller learning tutorials introduction

Open-Source All Demos
Full Dual-Controller Technology Stack

UGV Beast AI Robot for Jetson Orin, open-source all demos

18650 Lithium Battery Support

Onboard High-Efficiency UPS Module, Supports Charging And Discharging At The Same Time To Ensure Continuous Standby Time

* the 18650 batteries are NOT included

UGV Beast AI Robot for Jetson Orin, 18650 lithium battery support

Large Internal Space For Extension

  • Supports installing larger lithium battery set with XH2.54 interface to replace the UPS module
  • Please refer to the open-source drawing for the detailed internal space dimensions

UGV Beast AI Robot for Jetson Orin, with large internal space

High Strength Aluminum Body

UGV Beast AI Robot for Jetson Orin, with high strength aluminum body

High-Speed Motor + High-Frequency PID Closed-Loop Speed Control

Supports Quick Response Without Occupying The Resources For The Host Controller

UGV Beast AI Robot for Jetson Orin, with high-speed motor

More Design Details

UGV Beast AI Robot for Jetson Orin, can create a hotspot for accessing when there is no network

Automatically creates a hotspot for accessing when there is no available network connection after powering on

 UGV Beast AI Robot for Jetson Orin, with built in active cooling fan

Built in high-efficient active cooling for long-time operation of the host controller even when compiling complex ROS2 packages

 UGV Beast AI Robot for Jetson Orin, with OLED display for real-time information displaying

OLED display for real-time information displaying

 UGV Beast AI Robot for Jetson Orin, supports expanding external battery set

Supports expanding external battery set via DC5521 port

Multi-Functional Driver Board

  • Used as the sub controller of the robot, onboard ESP32 module and can be controlled via serial port, http request, ESP-NOW and other communication protocols, provides a web application for some basic control of the robot.
  • ESP32 can handle low-level computations for the robot, such as high-frequency PID controller for controlling wheel speed, high-frequency inverse kinematics calculations for robotic arm linkages, position interpolation calculation, Pan-Tilt angle control and OLED screen control, etc.
  • ESP32 is also responsible for data reading of various sensors, such as IMU (9-axis attitude sensor) and INA219 (battery voltage detection), and can independently achieve the camera vertical stabilization function, effectively saving computing and IO resources for the host controller.

UGV Beast AI Robot for Jetson Orin, multi-functional driver board

  1. ESP32 module
  2. ESP32 module antenna connector
  3. Motor control interfaces
  4. Battery voltage detection IC
    INA219
  5. Power supply
  6. USB communication / downloading
  7. Lidar USB connector
  8. ESP32-IO0 button
  9. ESP32-EN button
  10. I2C device interface



  1. Lidar UART interface
  2. Bus servo control interfaces
  3. Motor driver IC
    TB6612FNG
  4. Host controller 40PIN extended header
  5. Host controller connection header
  6. I2C device interface
  7. 9-axis IMU attitude sensor
    ICM20948
  8. 12V switch controlled by ESP32-IO4
  9. 12V switch controlled by ESP32-IO5



Audio Driver Board

Onboard dual-channel microphone and speaker header, USB HUB interface for connecting Lidar and 3.5mm audio jack for external audio connection

UGV Beast AI Robot for Jetson Orin, audio driver board

  1. Lidar UART to USB IC
  2. USB HUB IC
  3. Type-C port
  4. Lidar UART Interface
  5. 3.5mm AUX audio jack
  6. Audio amplifier IC
    APA2068KAI-TRG



  1. Audio control IC
    SSS1629A5
  2. Cooling fan power supply header
  3. Dual-track microphone
  4. Dual-track speaker header



Product Show

UGV Beast AI Robot for Jetson Orin, product show

Outline Dimensions

UGV Beast PT Jetson Orin AI Kit, outline dimensions

Resources & Services


WIKI: www.waveshare.com/wiki/UGV_Beast_PT_Jetson_Orin_AI_Kit
