Universal E-Paper Raw Panel Driver Shield (B) For NUCLEO / Arduino, Onboard MX25R6435F Flash Chip, Supports Expanding External RAM

WIKI: www.waveshare.com/wiki/e-Paper_Shield_(B)

PACKAGE CONTENT

Weight: 0.005 kg

1. e-Paper Shield (B) x1
2. e-Paper Adapter with 24PIN FFC cable ~200mm x1

1

2

DESCRIPTION

Universal E-Paper Raw Panel Driver Shield (B) For NUCLEO / Arduino, Onboard MX25R6435F Flash Chip, Supports Expanding External RAM, Suitable For Various SPI Interface E-Paper From Waveshare

Universal E-Paper Driver Shield (B)

Supports host boards like nRF528xx/Arduino/NUCLEO, etc.

Can Be Used To Drive Various SPI Interface E-Paper From Waveshare

Features At A Glance

• Standard Arduino connectivity, compatible with host boards like nRF528xx, UNO, Leonardo, NUCLEO, XNUCLEO
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Onboard MX25R6435F Flash chip
• Reserved external RAM soldering pads for expanding more space
• Comes with online resources and manual

Specifications

Comes With Adapter Board And FFC Cable

Expanding Display Interface Via FFC Cable, For Easy Connecting To The E-Paper

Compatible With Multiple E-Paper Models And Various Motherboards

Connecting with nRF528xx development board
and 2.13inch e-Paper

Connecting with nRF528xx development board
and 7.5inch e-Paper (B)

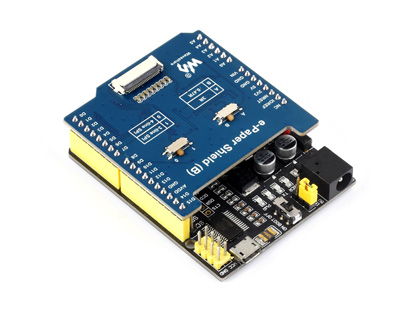

Connecting with R3 PLUS development board

Connecting with STM32 development board

for reference only, the motherboards and e-paper screens are NOT included

Pin Definition

What's On Board

1. Waveshare e-Paper driver resistor selection
2. 3-wire/4-wire SPI selection
3. 24PIN e-paper connector
4. Arduino standard interface
5. Voltage translator
6. Flash Chip

7. DIP switch
   Arduino board SPI communication selection (ICSP by default)
8. ICSP header
9. Power selection
   IOREF by default
10. Reserved RAM soldering pads

Product Show

Outline Dimensions
