Waveshare RP2350-Zero Mini

Package Content

Weight: 0.003 kg

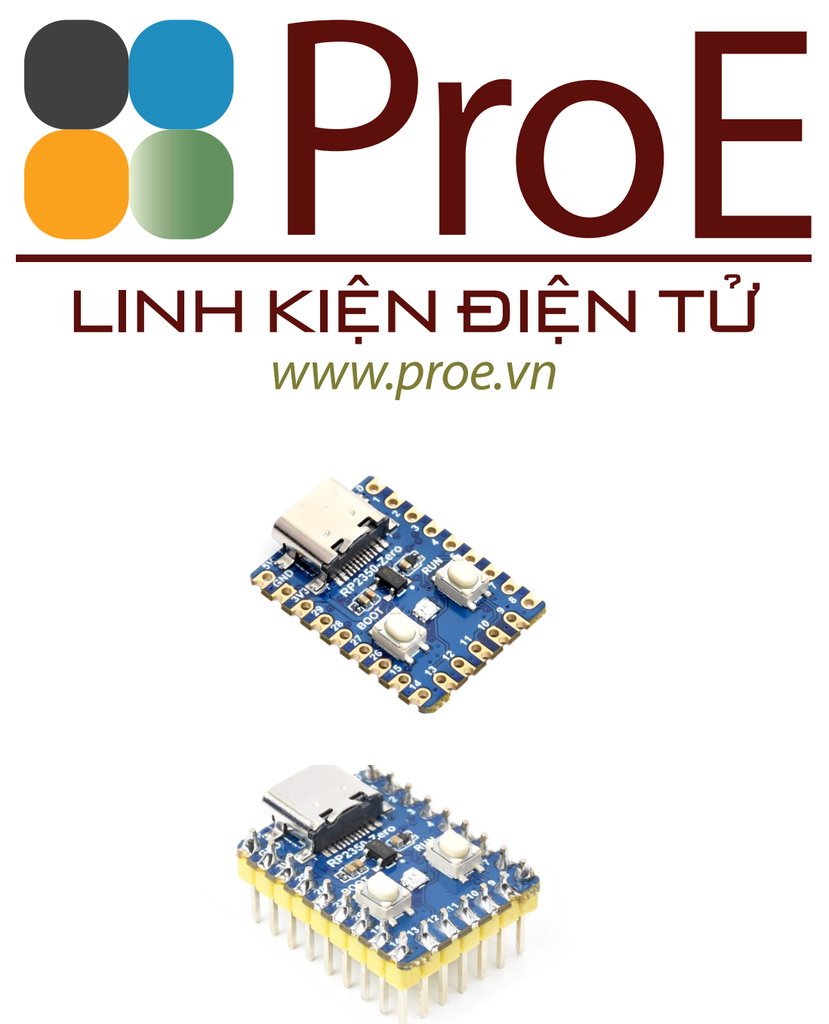

RP2350-Zero

RP2350-Zero x1

RP2350-Zero-M

RP2350-Zero with pre-soldered header x1

Waveshare RP2350-Zero Mini Development Board, Raspberry Pi Microcontroller Development Board, Based On Raspberry Pi Dual-core & Dual-architecture Microcontroller

RP2350 MCU Board Zero

a Pico-like MCU board based on Raspberry Pi RP2350A

Castellated module, suitable for SMD applications

Board specifications

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
• 520KB of SRAM, and 4MB of on-board Flash memory
• Type-C connector, keeps it up to date, easier to use
• Castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 24 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 12 × Programmable I/O (PIO) state machines for custom peripheral support

Pinheader options

C/C++, MicroPython support

Comprehensive SDK, dev resources, tutorials to help you easily get started

dual-core, dual-architecture

Adopts dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz

29 × multi-function GPIO pins

configurable pin function, allows flexible development and integration

What's On Board

1. USB Type-C connector
   for program downloading, supports USB1.1 hosts and slave devices
2. ME6217C33M5G
   Low dropout regulator, 800mA output (Max.)
3. BOOT button
   Press it when resetting to enter download mode
4. RUN reset button
5. WS2812
   cool RGB LED

6. P25Q32SH-UXH-IR
   4MB NOR-Flash
7. RP2350A
   Dual-core and dual-architecture design, up to 150 MHz operating frequency
8. RP2350A pins
   10x solder points, 9 of which are GPIO pins
9. Debug pins

outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/RP2350-Zero
