ZED Box NVIDIA® Jetson Orin™ NX 16GB

The ZED Box Orin™ series, with an optional quad-port GMSL2 interface, is designed to streamline the utilization of the new ZED X GMSL2 cameras and can manage up to two ZED X together or four single GMSL2 cameras.

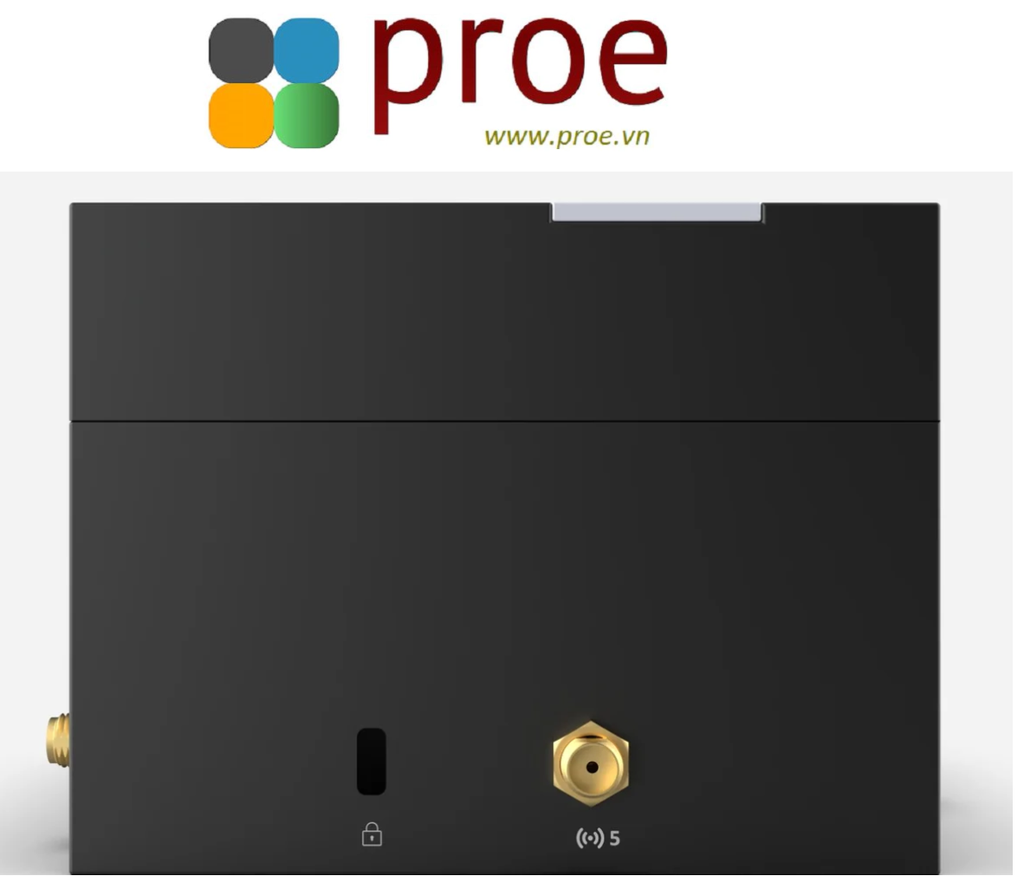

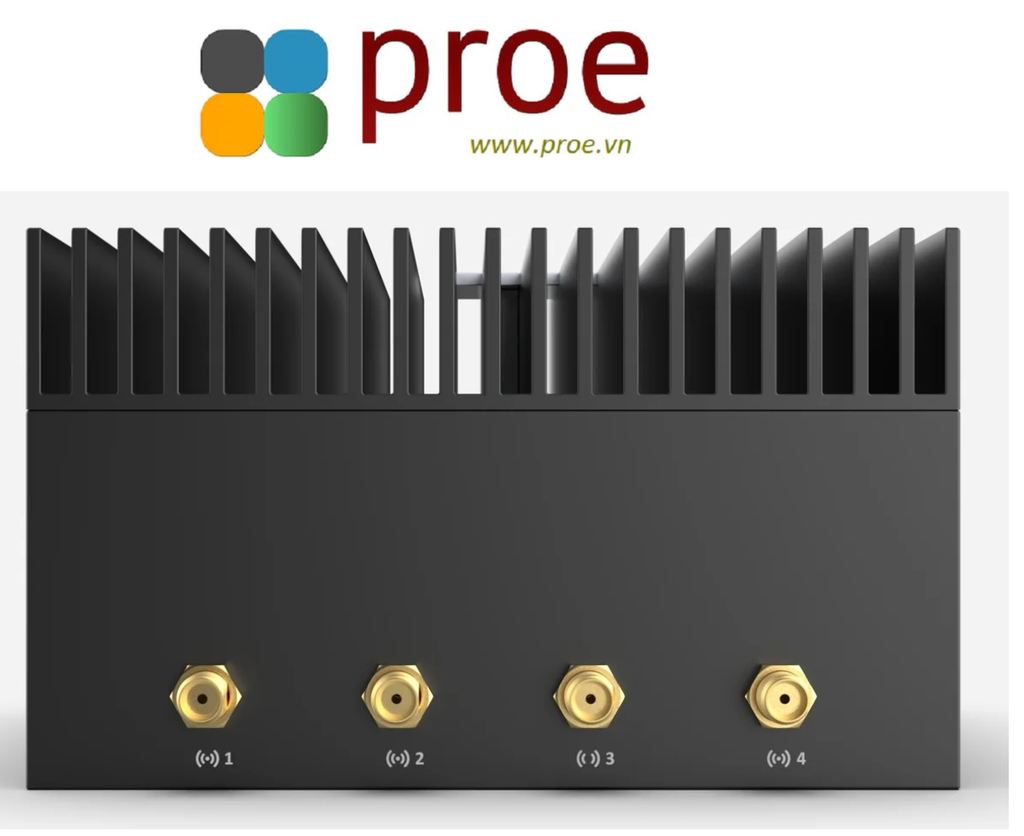

Sporting a vast selection of I/O options such as USB 3.2, HDMI, and PoE+, the ZED Box Jetson Orin™ NX is ideal for both indoor and outdoor applications. Through the addition of RTK GNSS technology, high-precision autonomous navigation is now possible. Wi-Fi 6 is now integrated in the form of M.2 E-Key modules, with up to 5 antenna ports (2 for Wi-Fi), allowing for low latency and dependable wireless data transmission. The integration of onboard PoE+ and ZED Hub remote control accelerates the deployment and management of multi-camera edge deployments in digital twin and smart building projects.

NVIDIA® Jetson Orin™ NX 16GB  Specifications

- NVIDIA® Jetson™ Orin NX 16GB module
- AI Performance: 100 TOPS
- GPU: 1,024-Core NVIDIA® Ampere™ architecture with 32 Tensor Cores @918MHz
- CPU : 8-Core Arm® Cortex®-A78AE  @2GHz
- DL accelerator: 2xNVDLA v2 @614MHz
- Memory : 16GB  LPDDR5 102.4 GB/s

General Specifications
- 1x WiFi 6 connectivity included
- Power: PoE+(25W) or DC-IN 5A 12-19V
- NVIDIA® Jetson™ Power mode: 10W | 15W | 25W

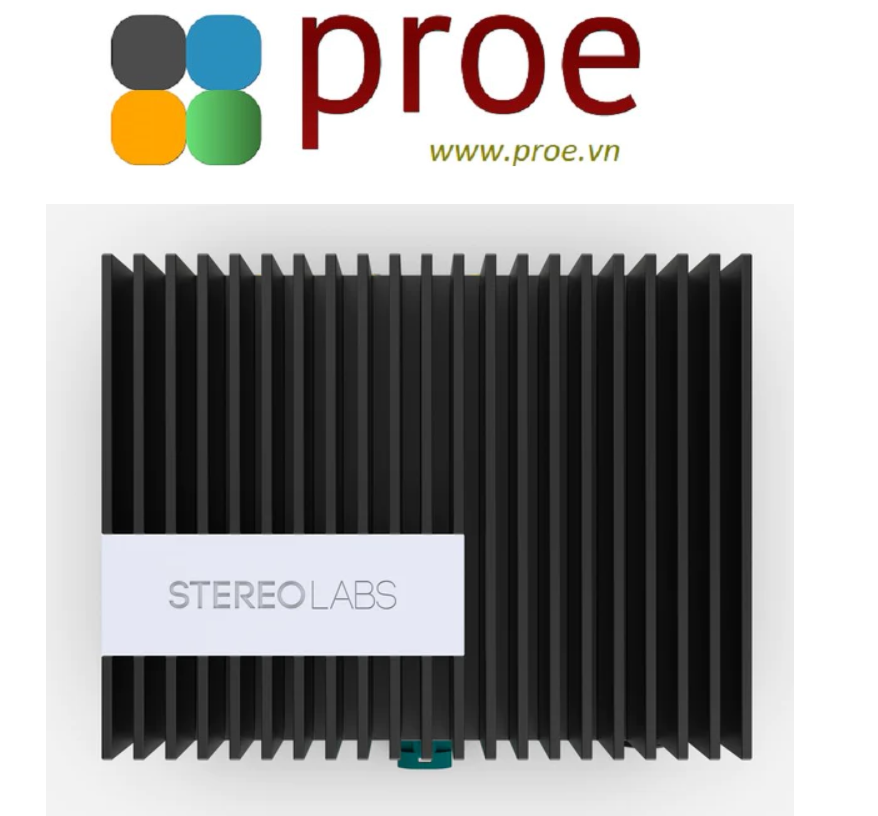

- Aluminium case passively cooled
- Dimensions: 118 x 92 x 71 mm (LxWxH) / 4.6 x 3.6 x 2.7 inches
- Mounting options: 92x45mm mounting holes, wall (brackets provided) and DIN-rail mounting
- Weight: 0.7 kg (1.5lb)

Storage Options

- SSD 256GB or 1TB

GMSL2 Option

- Quad-port GMSL2 interface for 2x stereo cameras or 4x mono cameras (1 to 4 GMSL2 cable included)

GPS Option

 - GPS RTK U-blox ZED-F9P
