0.96inch OLED Module (C)
- Mã sản phẩm: 0.96inch OLED Module (C)
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
150.000₫
- PACKAGE CONTENT
-
Weight: 0.009 kg
- OPTIONS 0.96inch OLED Module x1
- Jumper cable female-female 7PIN x1
1
2

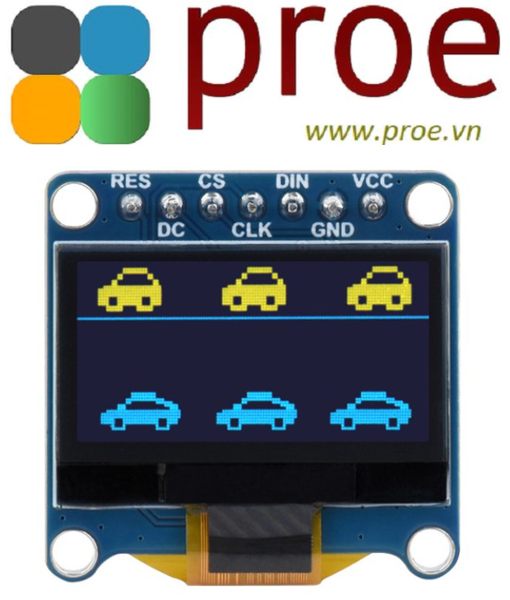

0.96inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication
0.96inch OLED Display Module
Embedded SSD1315 Driver Chip, SPI / I2C Communication
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
- Size
0.96" - Resolution
128×64 - Display Color
yellow&blue(two blocks)
/white/blue (optional) - Interface
SPI/I2C - Display Panel
OLED - Driver
SSD1315
Version Options
Features At A Glance
- Ultra-narrow bezel, conpact size, with onboard voltage translator
- Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
| OPERATING VOLTAGE | 3.3V / 5V | DISPLAY PANEL | OLED |
|---|---|---|---|
| RESOLUTION | 128 × 64 pixels | PIXEL SIZE | 0.15 × 0.15 mm |
| COMMUNICATION INTERFACE | 4-wire SPI / I2C | DRIVER | SSD1315 |
| DISPLAY SIZE | 21.74 × 11.18 mm | MODULE SIZE | 26.00 × 26.00mm |
| DISPLAY COLOR | (C): upper yellow & lower blue; (D): white; (E): blue | ||
Control Interface
| RES | Reset, low active |
|---|---|
| DC | Data/Command selection (high for data, low for command) |
| CS | Chip selection, low active |
| CLK | Clock input |
| DIN | Data input |
| GND | Ground |
| VCC | Power (3.3V / 5V input) |
Hardware Connection
Connecting With Raspberry Pi Via SPI Interface
Connecting With Arduino Board Via SPI Interface
Usage Example
for reference only, the STM32 board is NOT included.
Product Show
Outline Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/0.96inch_OLED_Module
