2 IN 1 Soil Conductivity Sensor

2 IN 1 Soil Conductivity Sensor = Conductivity +       Moisture

If you need Conductivity + temperature

You can leave a message to us

output is similar:

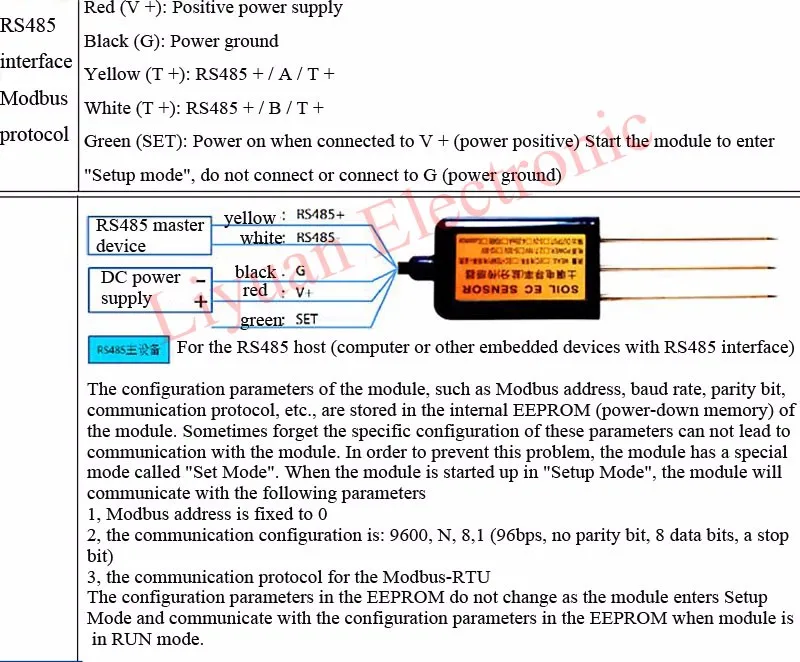

RS485 communication:

Power supply range: 3.6-30VDC

Power consumption (static): 6mA 24VDC

0-2V Output:

Power supply range: 3.6-30VDC

Power consumption (static): 6mA 24VDC

4-20MA output:

Power supply range: 12-30VDC

Power consumption (static): 50mA 24VDC

Conductivity Range:

Optional: 0-10000us / cm, 0-20000us / cm

Accuracy: 0-10000us / cm within ± 3%, 0-20000us / cm within the range of ± 5%

Conductivity temperature compensation: built-in temperature compensation sensor, compensation range 0-50C

Temperature measurement range: range -40 ~ 80C, resolution: 0.1C, accuracy: ± 0.5C

Measurement principle and measurement method: In-situ soil insertion or immersion into the culture night, water and fertilizer in one nutrient solution test

Protection class: IP68, long-term immersion in water use

Operating environment: -40 ~ 85C

Cable length: 2M

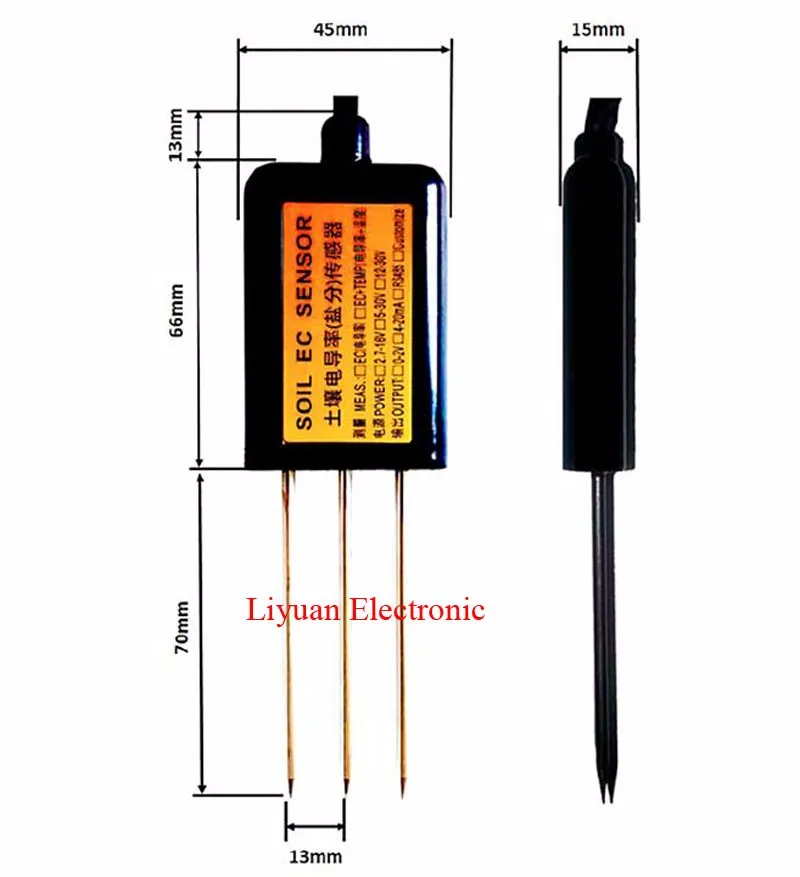

Overall dimensions: 45 * 15 * 145mm

Electrode length: 70 mm

Cable length: 2m

Note: 0-2V, RS485, 4-20M

Note: 0-2V, RS485, 4-20MA

Please choose the message you want the output, the default sent 0-2V
