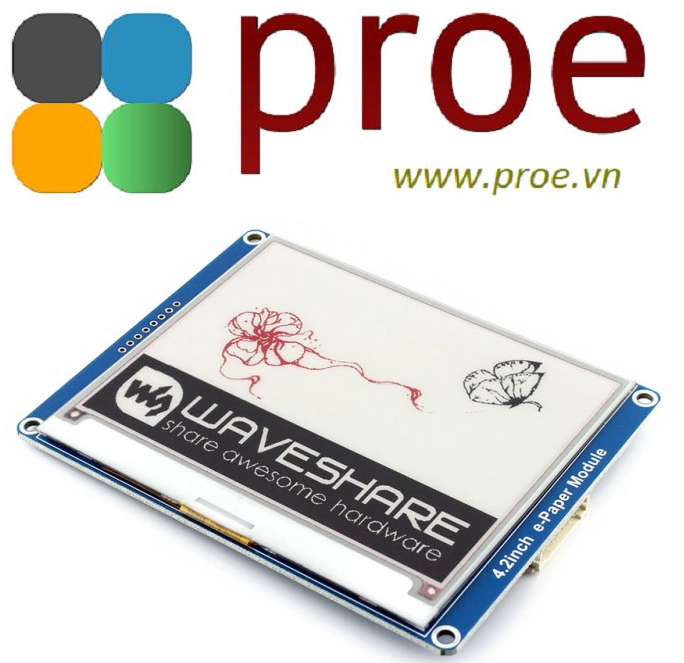

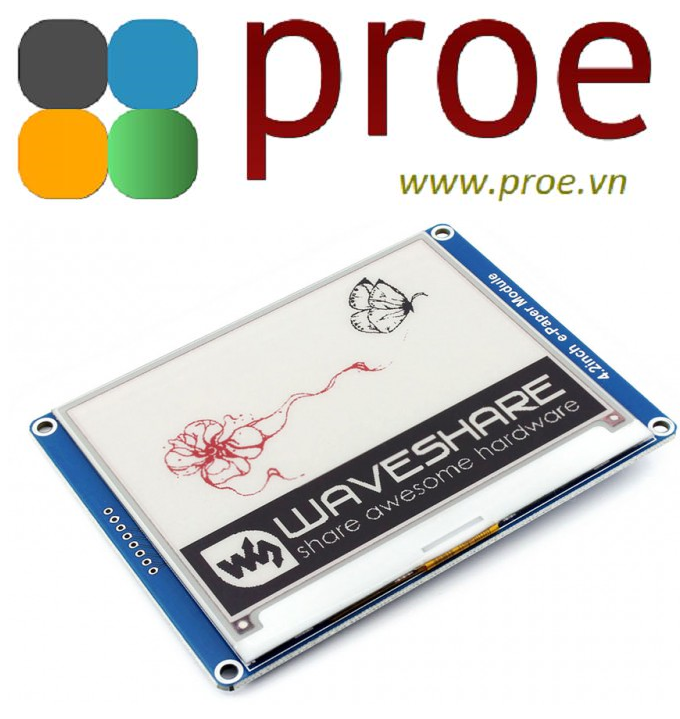

4.2inch e-Paper Module (B) 400x300, 4.2inch E-Ink display module, three-color

400x300, 4.2inch E-Ink Display Module, Three-Color, SPI Interface

Overview

This is an E-Ink display module, 4.2inch, 400x300 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

• Operating voltage: 3.3V~5V
• Interface: 3-wire SPI, 4-wire SPI
• Outline dimension: 103.0mm × 78.5mm
• Display size: 84.8mm × 63.6mm
• Dot pitch: 0.212 × 0.212
• Resolution: 400 × 300
• Display color: red, black, white
• Grey level: 2
• Full refresh time: 15s
• Refresh power: 26.4mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°

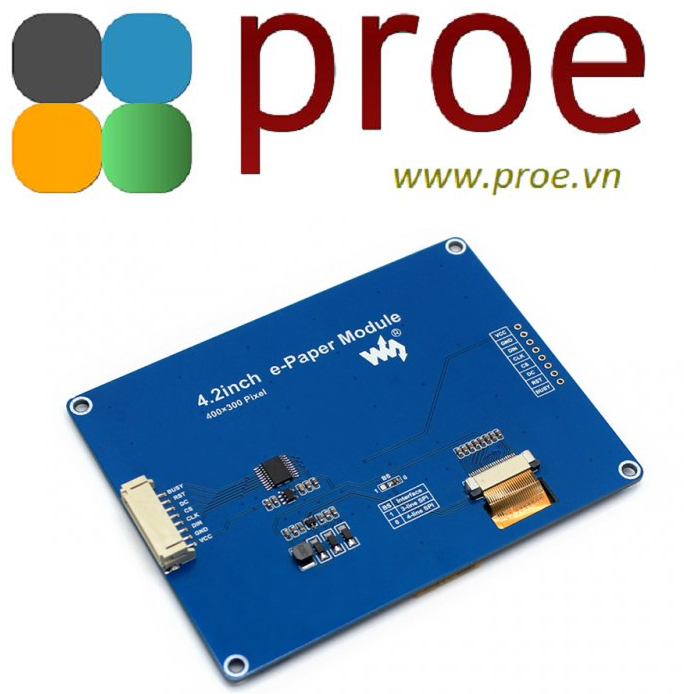

Interface

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/4.2inch_e-Paper_Module_(B)

Weight: 0.054 kg

1. 4.2inch e-Paper Module (B) x1
2. PH2.0 20cm 8Pin x1
