5.83inch e-Paper HAT (B)

5.83inch e-Paper HAT (B)  600x448, 5.83inch E-Ink display HAT for Raspberry Pi, red/black/white three-color, SPI interface

Overview

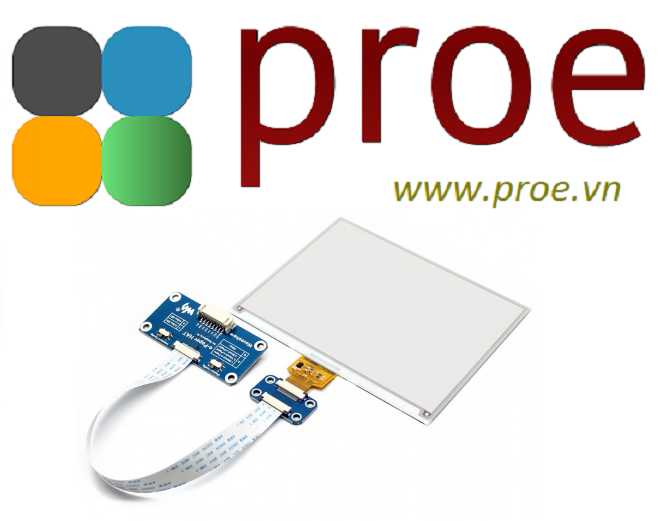

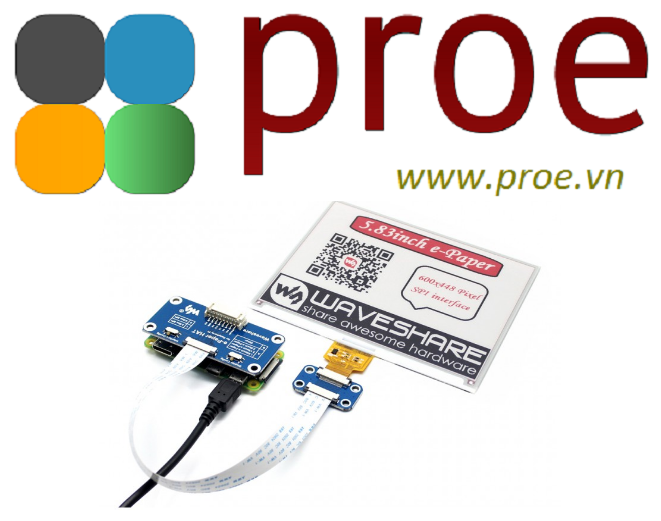

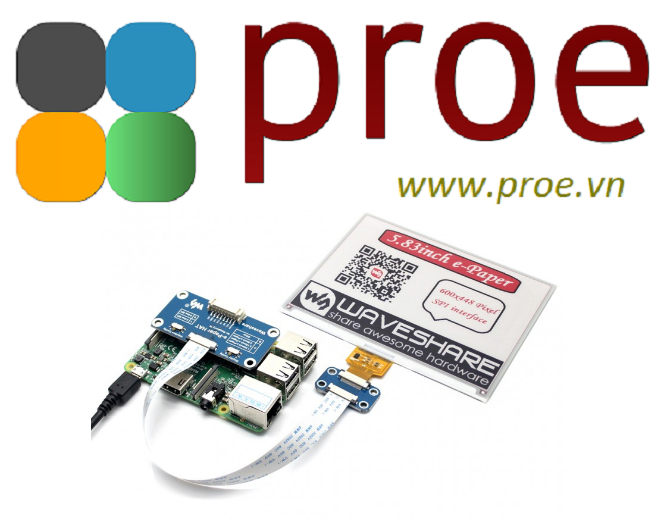

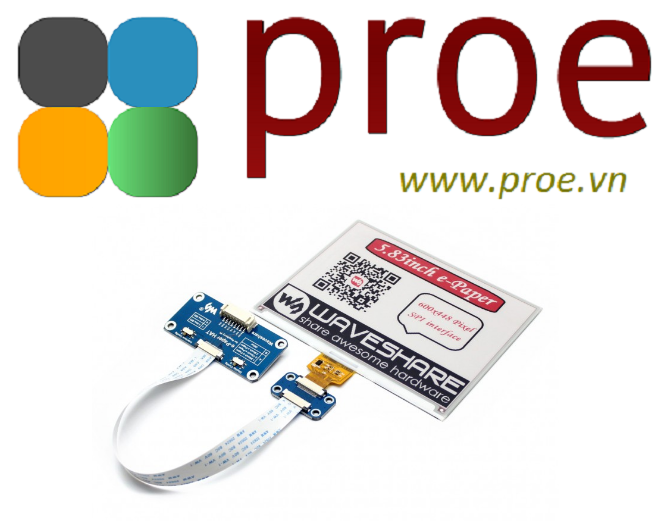

This is an E-Ink display HAT for Raspberry Pi, 5.83inch, 600x448 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
• SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

• Operating voltage: 3.3V~5V
• Interface: SPI
• Outline dimension: 125.40mm × 99.50mm
• Display size: 118.80mm × 88.26mm
• Dot pitch: 0.198 × 0.197
• Resolution: 600 × 448
• Display color: red, black, white
• Grey level: 2
• Full refresh time: 14s
• Refresh power: 26.4mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°

Interface

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/5.83inch_e-Paper_HAT_(B)_
