5G DONGLE Expansion Board, USB 3.2

Wiki: www.waveshare.com/wiki/USB_3.2_Gen1_5G_DONGLE

Weight: 0.115 kg

USB 3.2 Gen1 5G DONGLE

1. USB 3.2 Gen1 5G DONGLE x1
2. 5G antenna x4
3. USB Type-A to Type-C cable ~1m x1
4. IPEX adapter cable ~6cm (4pcs) x1
5. IPEX adapter cable ~13cm x1
6. Thermal pad x1
7. SMA protective cap (4pcs) x1

SIM8202G-M2 5G DONGLE (B)

1. USB 3.2 Gen1 5G DONGLE x1
2. SIM8202G-M2 x1
3. 5G antenna x4
4. USB Type-A to Type-C cable ~1m x1
5. IPEX adapter cable ~6cm (4pcs) x1
6. IPEX adapter cable ~13cm x1
7. Thermal pad x1
8. SMA protective cap (4pcs) x1

SIM8262E-M2 5G DONGLE (B)

1. USB 3.2 Gen1 5G DONGLE x1
2. SIM8262E-M2 x1
3. 5G antenna x4
4. USB Type-A to Type-C cable ~1m x1
5. IPEX adapter cable ~6cm (4pcs) x1
6. IPEX adapter cable ~13cm x1
7. Thermal pad x1
8. SMA protective cap (4pcs) x1

SIM8262A-M2 5G DONGLE (B)

1. USB 3.2 Gen1 5G DONGLE x1
2. SIM8262A-M2 x1
3. 5G antenna x4
4. USB Type-A to Type-C cable ~1m x1
5. IPEX adapter cable ~6cm (4pcs) x1
6. IPEX adapter cable ~13cm x1
7. Thermal pad x1
8. SMA protective cap (4pcs) x1

RM520N-GL 5G DONGLE (B)

1. USB 3.2 Gen1 5G DONGLE x1
2. RM520N-GL x1
3. 5G antenna x4
4. USB Type-A to Type-C cable ~1m x1
5. IPEX adapter cable ~6cm (4pcs) x1
6. IPEX adapter cable ~13cm x1
7. Thermal pad x1
8. SMA protective cap (4pcs) x1

RM530N-GL 5G DONGLE (B)

1. USB 3.2 Gen1 5G DONGLE x1
2. RM530N-GL x1
3. 5G antenna x4
4. USB Type-A to Type-C cable ~1m x1
5. IPEX adapter cable ~6cm (4pcs) x1
6. IPEX adapter cable ~13cm x1
7. Thermal pad x1
8. SMA protective cap (4pcs) x1

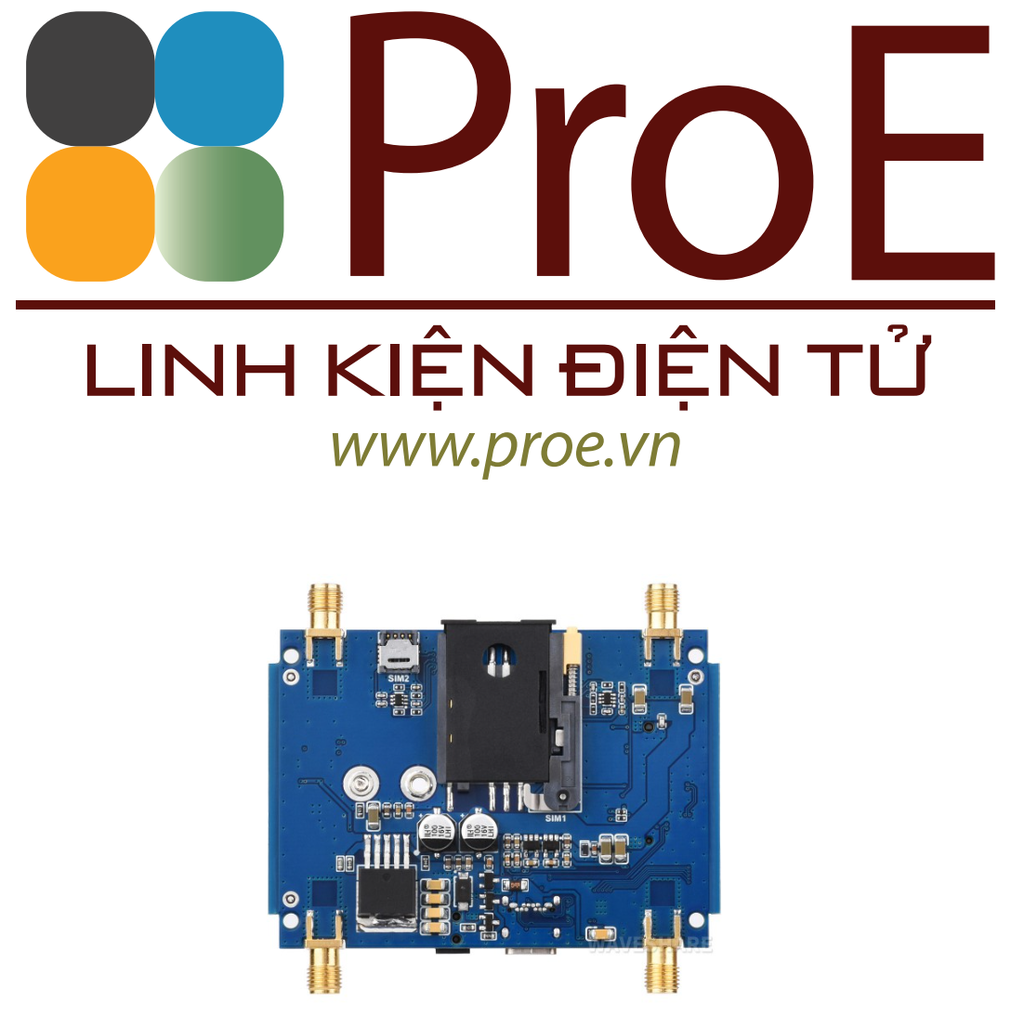

5G DONGLE Expansion Board, USB 3.2 Port, Aluminum Alloy Case, Quad Antennas, Onboard M.2 Key B Interface, Options For 5G Module

5G DONGLE Expansion Board

5G M.2 to USB 3.2 Port

Supports SIMCom / Quectel / Fibocom mainstream 5G M.2 modules
Compatible with 3042 / 3052 packages

* Note: the 5G module is NOT included in the USB 3.2 Gen1 5G DONGLE kit and needs be purchased separately. It is recommended to select the kits with 5G module, please refer to the Kit Selection table for more details.

Features At A Glance

• Supports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from brands such as SIMCom, Quectel, and Fibocom
• Supports 5G modules in 3042 / 3052 packages such as SIM82XX, RM5XX and FM650XX series
• Onboard USB 3.2 Type-C port for connecting to Raspberry Pi or PC for 5G networking, firmware updating, and external power supply input
• Built-in UART communication interface for data transmission and other functions with some modules
• Onboard 4-ch IPEX 4 to SMA antenna connector for direct mounting of antennas
• Onboard voltage translator circuit, supports 5 ~ 12V power supply via DC 3.5mm jack, or 5V / 2A power supply via USB 3.2 port
• Onboard 1-ch standard SIM card slot, 1-ch eSIM card slot in QFN-8 (5x6) package, dual card single standby, switchable via AT command
• Onboard power supply and network indicators for checking working status of the module and 5G debugging
• Aluminum alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, desktop or wall-mount support

Compatible 5G modules

Multiple Size Compatible

Supports 3042 / 3052 packages

Connection examples

Connect to Windows PCs, Raspberry Pi motherboards and Jetson Nano series motherboards via USB port for 5G networking

Connect to Raspberry Pi 5

Connect to CM5-PoE-BASE-A

Connect to Jetson Nano

* for reference only, please refer to the Package Content for the detailed part list.

Multi system support, easy to use

supports Windows / Linux...

Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use

Application Scenarios

Interface Introduction

Industrial Grade Aluminium Alloy Enclosure

Aluminum alloy enclosure with oxidation dull-polish surface, solid and durable, compact size, desktop or wall-mount support

Outline Dimensions

* Note: The above dimensions are measured manually, there is a certain error

5G module installation Introduction

* Note: the 5G module is NOT included in the USB 3.2 Gen1 5G DONGLE kit and needs be purchased separately. It is recommended to select the kits with 5G module, please refer to the Kit Selection table for more details.
