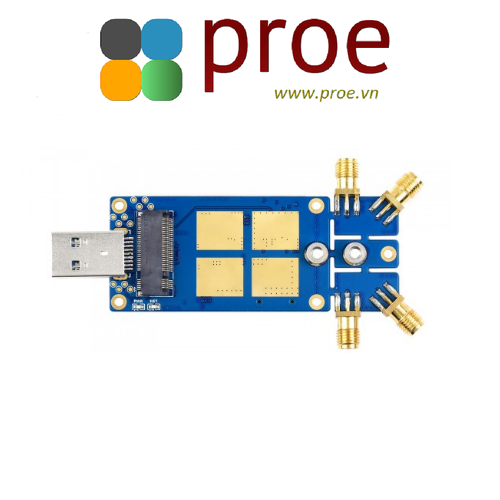

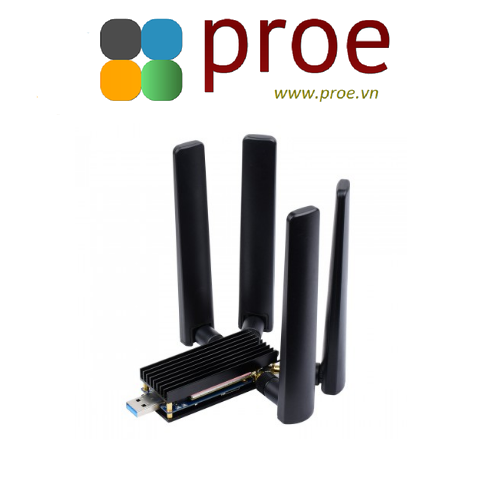

5G DONGLE Module, quad antennas, USB3.1 port, Aluminum Alloy Heatsink, M.2 Key B Interface, Options For 5G Module

5G DONGLE Module, quad antennas, USB3.1 port, Aluminum Alloy Heatsink, M.2 Key B Interface, Options For 5G Module

Mã sản phẩm: USB TO M.2 B KEY
Nhà sản xuất: Waveshare
Website hỗ trợ: https://www.proe.vn

0₫ Giá thị trường: Tiết kiệm:

Wiki: www.waveshare.com/wiki/5G_M.2_TO_Gigabit_ETH

PACKAGE CONTENT

Weight: 0.243 kg

USB TO M.2 B KEY

USB TO M.2 B KEY x 1
Aluminum Alloy case (top and bottom) x 1
Antenna x 4
IPEX adapter cable x 4
USB3.0 female to dual USB male extension cable x 1
SMA Protective Cap x 4
Thermal tape x 1
Screws pack x 1

5G M.2 TO Gigabit ETH

5G M.2 TO Gigabit ETH x1
5G antenna x4
OPTIONS 12V Power Supply x1
USB Type-A to Type-C cable ~1m x1

SIM8262E-M2 5G M.2 TO ETH

5G M.2 TO Gigabit ETH x1
SIM8262E-M2 + Heatsink x1
5G antenna x4
OPTIONS 12V Power Supply x1
USB Type-A to Type-C cable ~1m x1

DESCRIPTION

5G M.2 To Gigabit Ethernet Converter, 5G M.2 To USB3.1, Aluminum Alloy Case, Wall-Mount Support, Quad Antennas, Onboard M.2 Key B Interface, USB3.1 Port, Options For 5G Module

5G M.2 To Gigabit Ethernet Converter

5G M.2 to Gigabit Ethernet + 5G M.2 to USB3.1

Supports SIMCom / Quectel / Fibocom Mainstream 5G M.2 Modules
Compatible With 3042 / 3052 Packages

Features At A Glance

Supports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from the brands such as SIMCom, Quectel, and Fibocom
Supports 5G modules in 3042/3052 packages such as SIM82XX, RM5XX and FM160XX series
Onboard RTL8125 Ethernet chip, supports 5G to Gigabit Ethernet for high speed 5G networking via the Gigabit Ethernet port
Onboard USB 3.1 Type-A port for connecting to PC, Raspberry Pi, or Jetson series motherboards for high-speed 5G networking or debugging
Onboard voltage translator circuit, supports 9-12V power supply via DC 5.5mm jack, or 5V/2A power supply via USB 3.1 port
Onboard standard SIM card slot
Onboard power supply and network indicator, reset button, for checking the working status of the module and 5G debugging
Aluminum alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, desktop or wall-mount support
Comes with 4× 5G omnidirectional high-gain antennas and 12V power supply adapter, easy to use directly with 5G module

Compatible 5G Modules

MODEL	SIM8202G-M2	SIM8262E-M2	SIM8262A-M2	RM500U-CNV	RM502Q-AE	RM520N-GL	FM160-EAU
5G STANDARD	3GPP R15	3GPP R16		3GPP R15		3GPP R16
APPLICABLE REGIONS	except Americas		Americas	China, EMEA, Asia-Pacific	Global (except China)	Global	EMEA, Australia
CHIP	Qualcomm Snapdragon X55	Qualcomm Snapdragon X62		UNISOC	Qualcomm Snapdragon X55	Qualcomm Snapdragon X62
FREQUENCY BAND
Sub-6G	n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79	n2, n5, n7, n12, n13, n14, n25, n30, n41, n48, n66, n71, n77, n78, n79	5G NR NSA: n41, n78, n79	5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	5G NR NSA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n77, n78
Sub-6G		n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n79		5G NR SA: n1, n2, n3, n5, n8, n28, n41, n77, n78, n79	5G NR SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79	5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n77, n78
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71	B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71	B1, B3, B5, B8	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71		B1, B3, B5, B7, B8, B20, B28, B32
LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B48	B38, B39, B40, B41, B42, B43	B41, B46, B48	B34, B38, B39, B40, B41	B38, B40, B42, B43
LAA	-				B46		-
WCDMA	B1, B2, B3, B4, B5, B8	B1, B5, B8	B2, B4, B5	B1, B5, B8	B1, B2, B3, B4, B5, B6, B8, B19	B1, B2, B4, B5, B8, B19	B1, B5, B8
GNSS	GPS / GLONASS / BeiDou(Compass) / Galileo / QZSS (RM500Q-GL and RM502Q-AE do not support)
DATA RATE
Sub-6G	2.4Gbps (DL) / 500Mbps (UL)			5G NR SA: 2Gbps (DL) / 1Gbps (UL)	5G NR SA: 4.2Gbps (DL) / 450Mbps (UL)	5G NR SA: 2.4Gbps (DL) / 900Mbps (UL)
Sub-6G	2.4Gbps (DL) / 500Mbps (UL)			5G NR NSA: 2.5Gbps (DL) / 575Mbps (UL)	5G NR NSA: 5.0Gbps (DL) / 650Mbps (UL)	5G NR NSA: 3.4Gbps (DL) / 550Mbps (UL)
LTE	1.0Gbps (DL) / 200Mbps (UL)			600Mbps (DL) / 150Mbps (UL)	2.0Gbps (DL) / 200Mbps (UL)	1.6Gbps (DL) / 200Mbps (UL)
UMTS	42Mbps (DL) / 5.76Mbps (UL)
Dimensions	42.0 × 30.0 × 2.3mm			52.0 × 30.0 × 2.3mm
Note: 5G module is optonal. This table only lists some supported models after actual testing, and the pin compatibility should be tested if used with other models.

Supports Multiple Operating Modes

USB3.1 Port Direct Connection Mode

Enabling 5G High Speed Networking For PC / Raspberry Pi /Jetson Series / Industrial Control Host Via USB3.1 Port

Gigabit Ethernet Port Direct Connection Mode

Enabling 5G High Speed Networking For PC / Raspberry Pi /Jetson Series / Industrial Control Host Via Gigabit Ethernet Port

Router Mode

The Router Accesses The 5G Network Via Gigabit Ethernet Port, And Then Distributes To All Devices Connected For The 5G Networking

USB 3.1 Port And Gigabit Ethernet Port Simultaneous Networking Mode *

Provides 5G Network For Two Devices Separately Via USB3.1 Port And Gigabit Ethernet Port.

* Note: The 5G module needs to support the simultaneous conversion of USB port and Gigabit Ethernet port for networking. All 5G modules in the Compatible 5G Modules table can support this function, except for RM502Q-AE and RM520N-GL, which can only support one channel at a time.

Networking Example

Supports 5G Networking Via USB 3.1 Interface And Gigabit Ethernet Port At The Same Time *

Note: the 5G network speed will be shared if using laptop and Raspberry Pi to access 5G network at the same time

Multiple Size Compatible

Support 3042/3052 Package

Industrial Grade Aluminium Alloy Enclosure

Aluminum Alloy Enclosure With Oxidation Dull-Polish Surface, Solid And Durable, Desktop Or Wall-Mount Support

Application Scenarios

Interface Introduction

* Note: USB Type-C port is enabled via jumper by default for power supply and communication, requires 5V/2A or more power. And the jumper cap should be removed if powered separately via the DC power port.

Product Show

Outline Dimensions

* Note: The above dimensions are measured manually, there is a certain error

5G Module Installation Introduction

* Note: the 5G module is NOT included in the 5G M.2 TO Gigabit ETH kit and needs be purchased separately. It is recommended to select the kits with 5G module, please refer to the Kit Selection table for more details.
