7.5inch E-Paper E-Ink Display Module for Raspberry Pi Pico, 800×480, Black / White, SPI

PACKAGE CONTENT

Weight: 0.077 kg

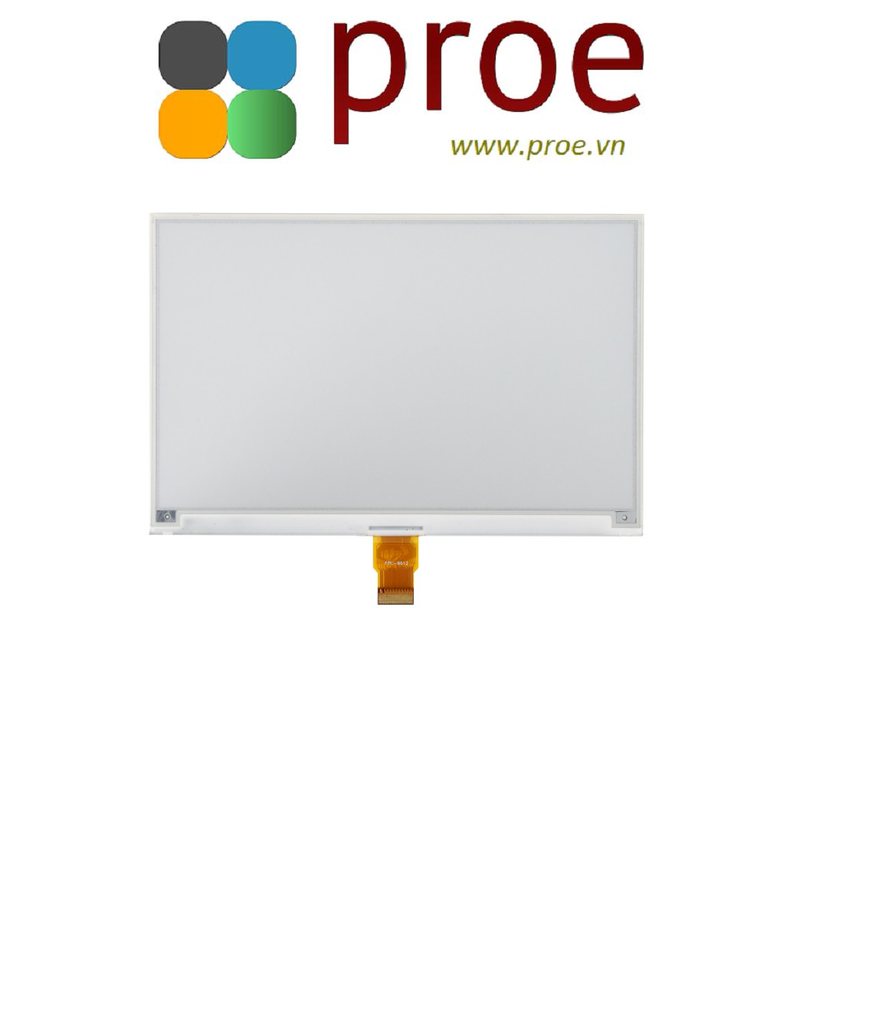

1. 7.5inch e-Paper x1

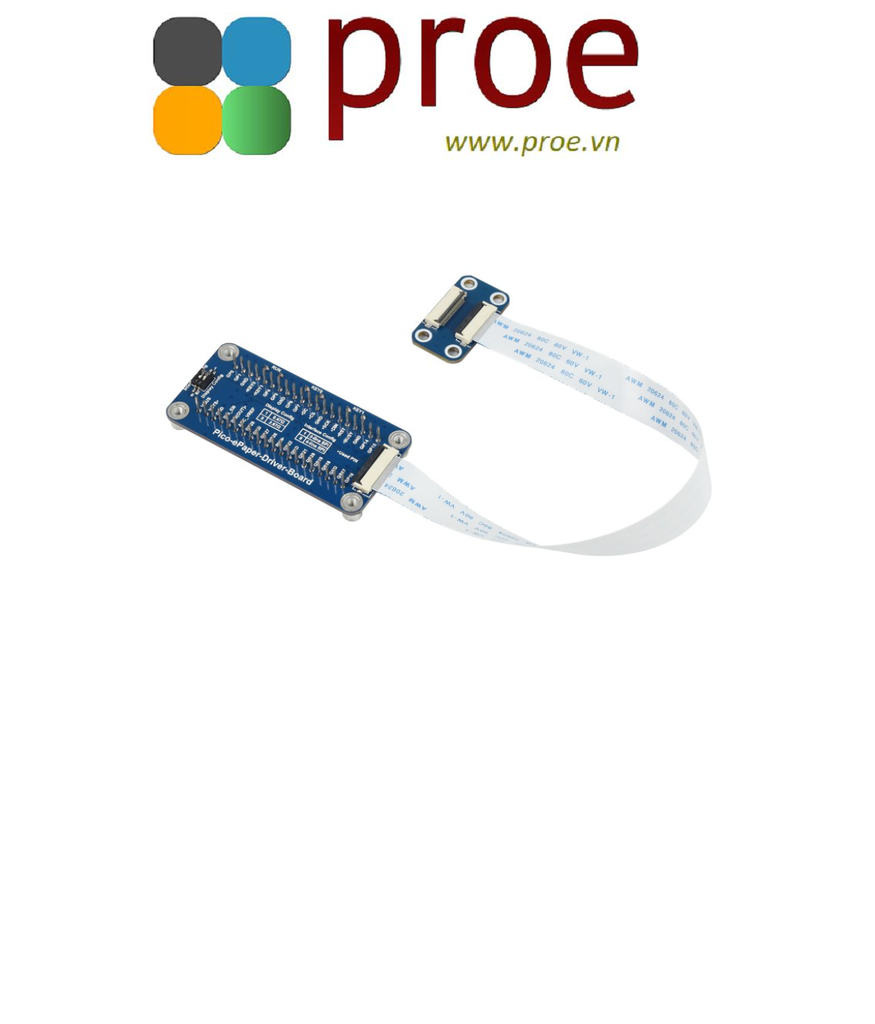

2. Pico-ePaper-Driver-Board x1
3. Standoff pack x1

1

2

3

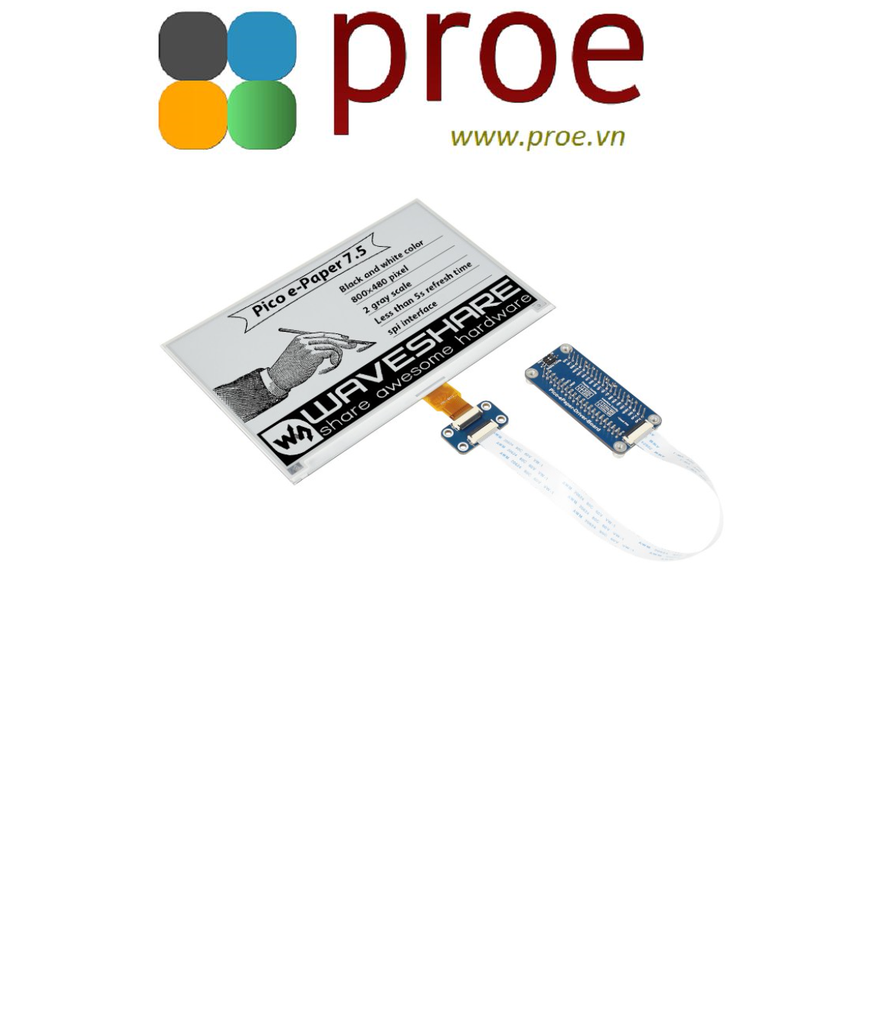

7.5inch E-Paper E-Ink Display Module For Raspberry Pi Pico, 800×480 Pixels, Black / White, SPI Interface

7.5" E-Paper Module For Pico

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

• Size7.5"
• Resolution800×480
• Viewing Angle>170°
• Display ColorBlack / White
• Grey Scale2
• CommunicationSPI
• Display PanelE-paper
• ExperiencePaper-like
• Comfortably ReadingEye Care, No Bluelight
• EnvironmentAmbient Light Required
• Display TypePassively Reflective
• Power ConsumptionUltra Low
• Display DurationPersists without Power

Features At A Glance

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• SPI interface, requires minimal IO pins
• 2x user buttons and 1x reset button for easy interacting
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

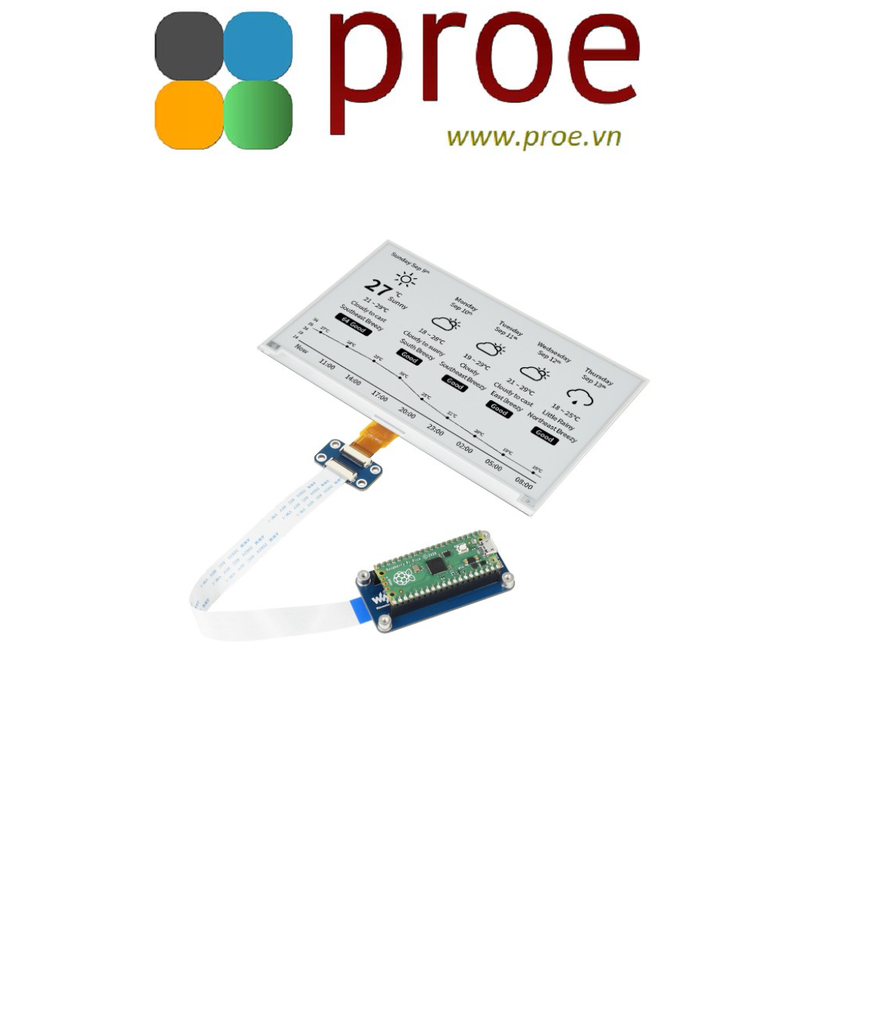

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
2x User Buttons And 1x Reset Button For Easy Interacting

Stackable Design

Extended Pico Header, Allows Attaching More Modules For Pico

Raspberry Pi Pico and other modules are NOT included.

Widely Compatible Driver Board

Onboard Switch For Using With Multi E-Paper Displays, Or Selecting SPI Bus

Pinout Definition

Application Examples

Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

Outline Dimensions

Resources & Services

WIKI: Pico-ePaper-7.5
