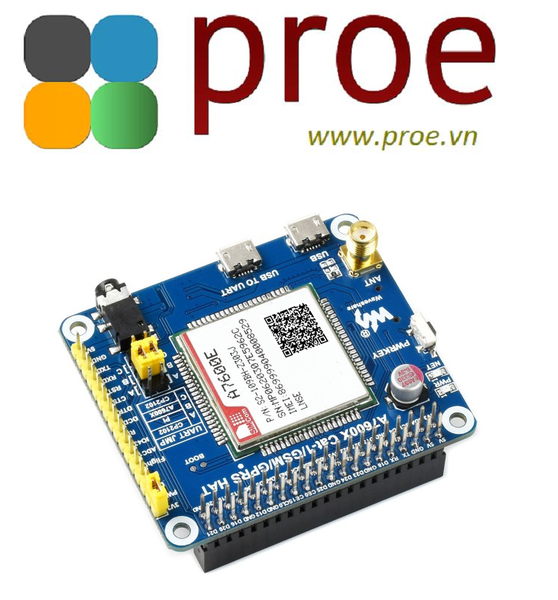

A7600E Cat-1/GSM/GPRS HAT

A7600E LTE Cat-1 HAT for Raspberry Pi, Low Speed 4G Module, 2G GSM / GPRS, for Southeast Asia, West Asia, Europe, Africa

DESCRIPTION

PACKAGE CONTENT

A7600E LTE Cat-1 HAT For Raspberry Pi, Low Speed 4G Module, 2G GSM / GPRS Support, LBS Positioning

For different regions, we provide multiple LTE Cat-4/Cat-1 HATs to choose from:

• SIM7600A-H 4G HAT: mainly applicable in North America (US, CA)
• SIM7600E-H 4G HAT, SIM7600E LTE Cat-1 HAT, A7600C1 Cat-1/GSM/GPRS HAT: mainly applicable in Europe, Southeast Asia, West Asia, Africa, China, North Korea
• SIM7600SA-H 4G HAT: mainly applicable in Australia, New Zealand, Taiwan, Latin America
• SIM7600CE 4G HAT, SIM7600CE-CNSE 4G HAT, A7600C1 Cat-1/GSM/GPRS HAT: mainly applicable in China, and some Southeast Asia countries
• SIM7600G-H 4G HAT: the global version

Please check the supported bands according to your local service provider, select the proper one when placing order.

LTE CAT-1 HAT FOR RASPBERRY PI

Enabling LTE Cat-1 / 2G Communication & LBS Positioning

Based on A7600E



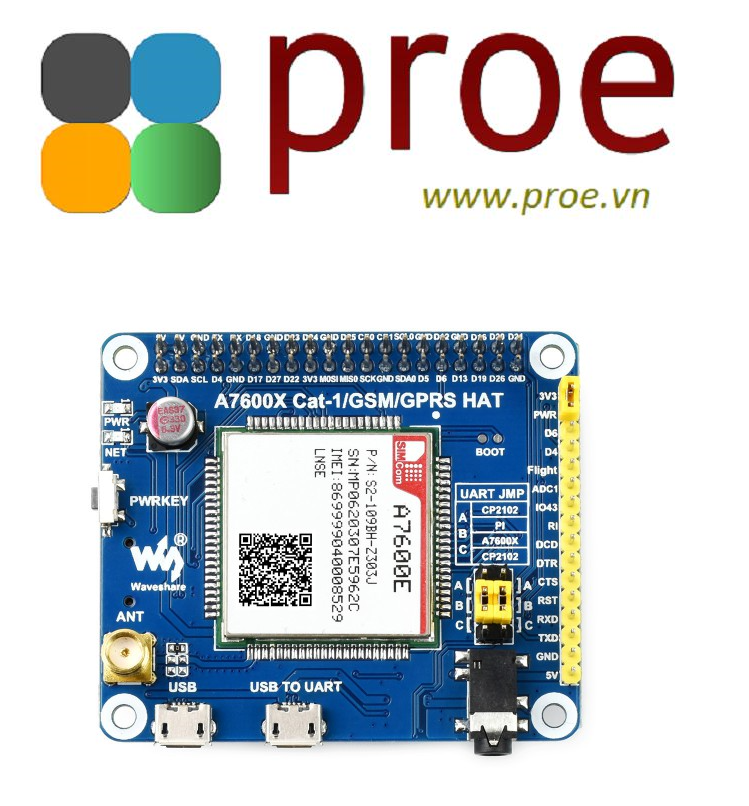

Features At A Glance

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL
• Supports dial-up, telephone call, SMS
• Supports LBS base station positioning, it is able to get the approximate position info via mobile network
• TTS (Text To Speech) feature, texts in Chinese/English can be converted into spoken words
• Onboard USB interface, for testing AT Commands, network communication, and so on
• Onboard audio jack for sound recording, making telephone call, listening the TTS resulting speech, etc.
• Onboard USB to UART converter, for serial debugging, or accessing the Raspberry Pi
• Breakout common used control pins of the A7600X module, make it easy to connect with hosts boards like Arduino/STM32

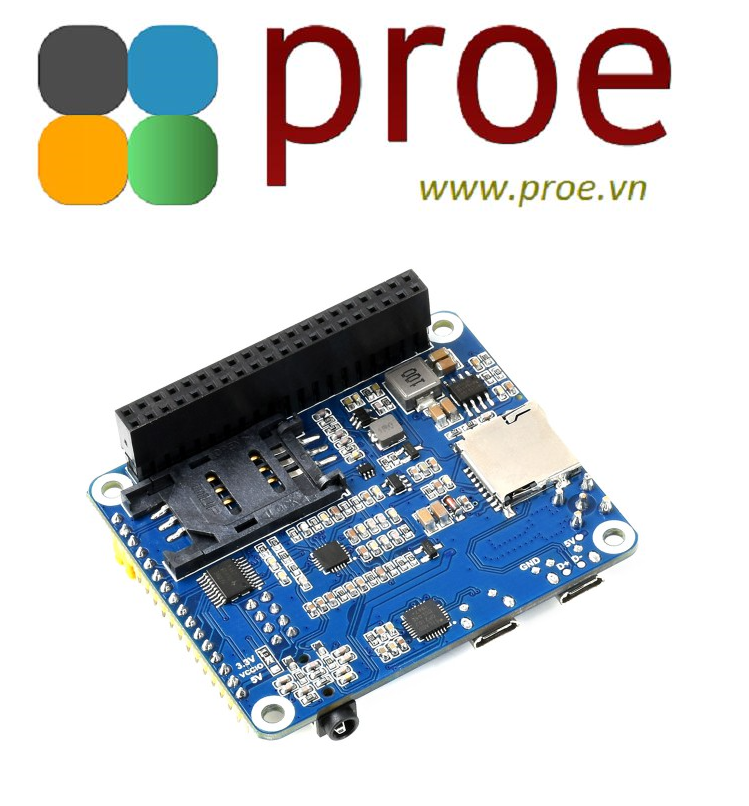

• SIM card slot, supports 1.8V/3V SIM card

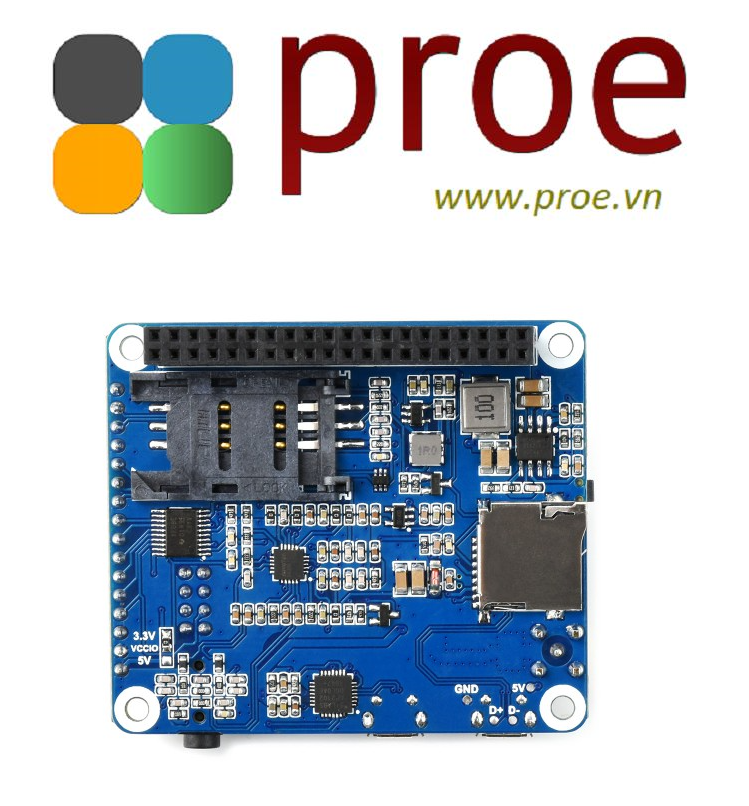

• TF card slot for storing data like files, audio data, etc.
• 2x LED indicators, easy to monitor the operating status
• Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via 0Ω resistor jumper
• Baudrate: 300bps ~ 4Mbps (default: 115200bps)
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

FREQUENCY BAND
LTE Cat-1	LTE-FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B38/B40/B41
2G	GSM/GPRS/EDGE: 900/1800 MHz
SMS AND AUDIO
SMS	Supported types: MT, MO, CB, Text, PDU
	Storage: USIM card and ME (default)
Audio feature	Supports echo cancellation
	Supports noise reduction
OTHER
Power supply	5V
Operating voltage	5V / 3.3V (configured via 0Ω resistor jumper)
Operating temperature	-30°C ~ 80°C
Storage temperature	-45°C ~ 90°C
Dimensions	56.01mm × 65.00mm

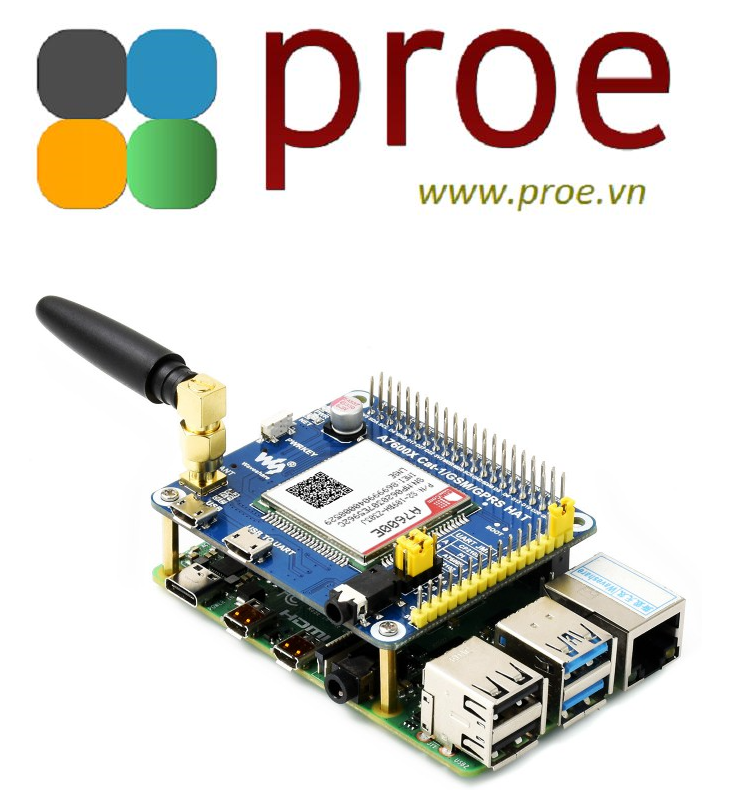

Standard Raspberry Pi 40PIN GPIO

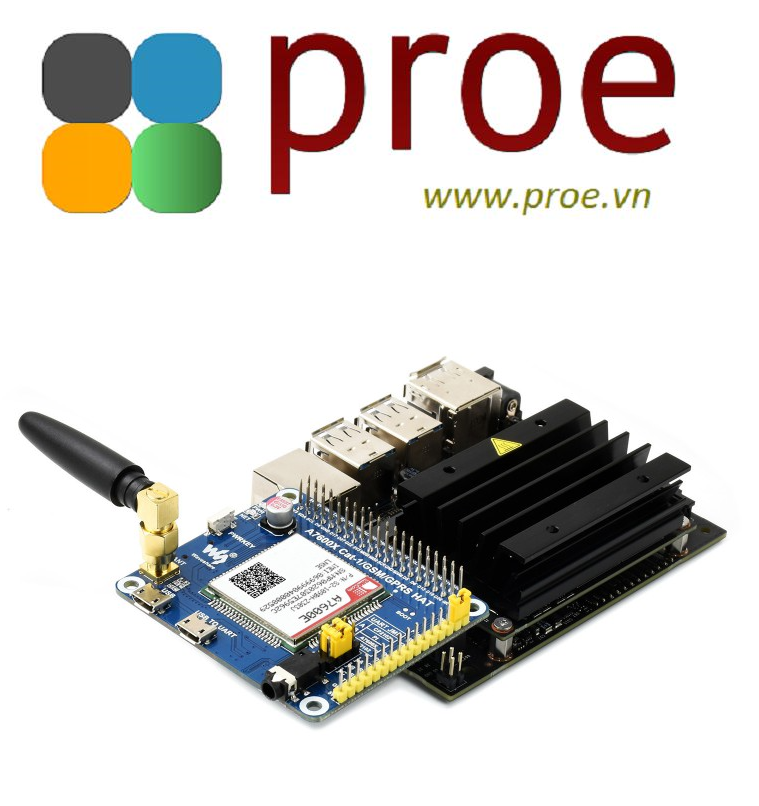

Compatible With Raspberry Pi Series Boards, Jetson Nano
