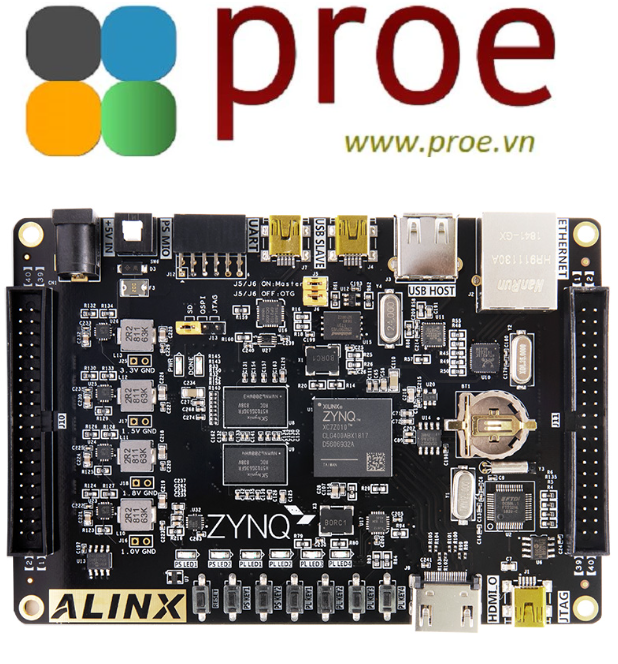

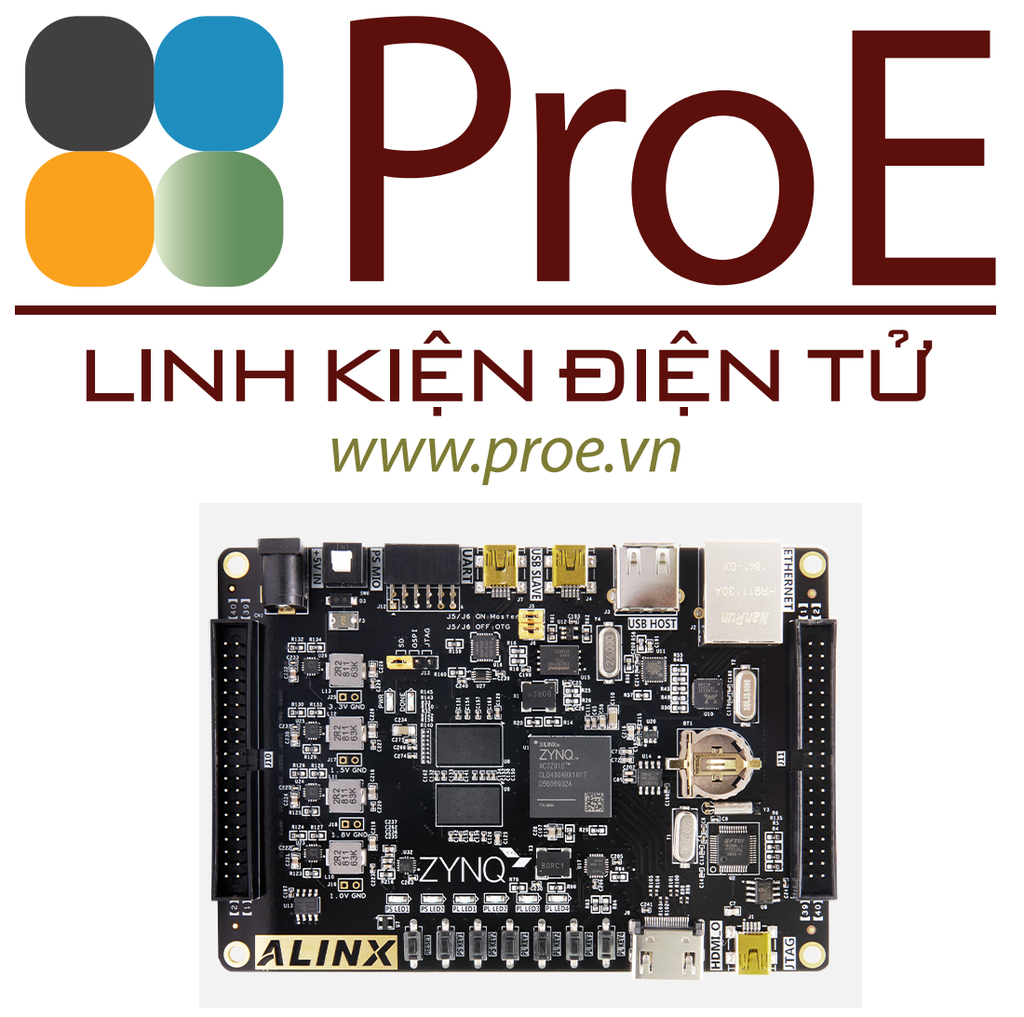

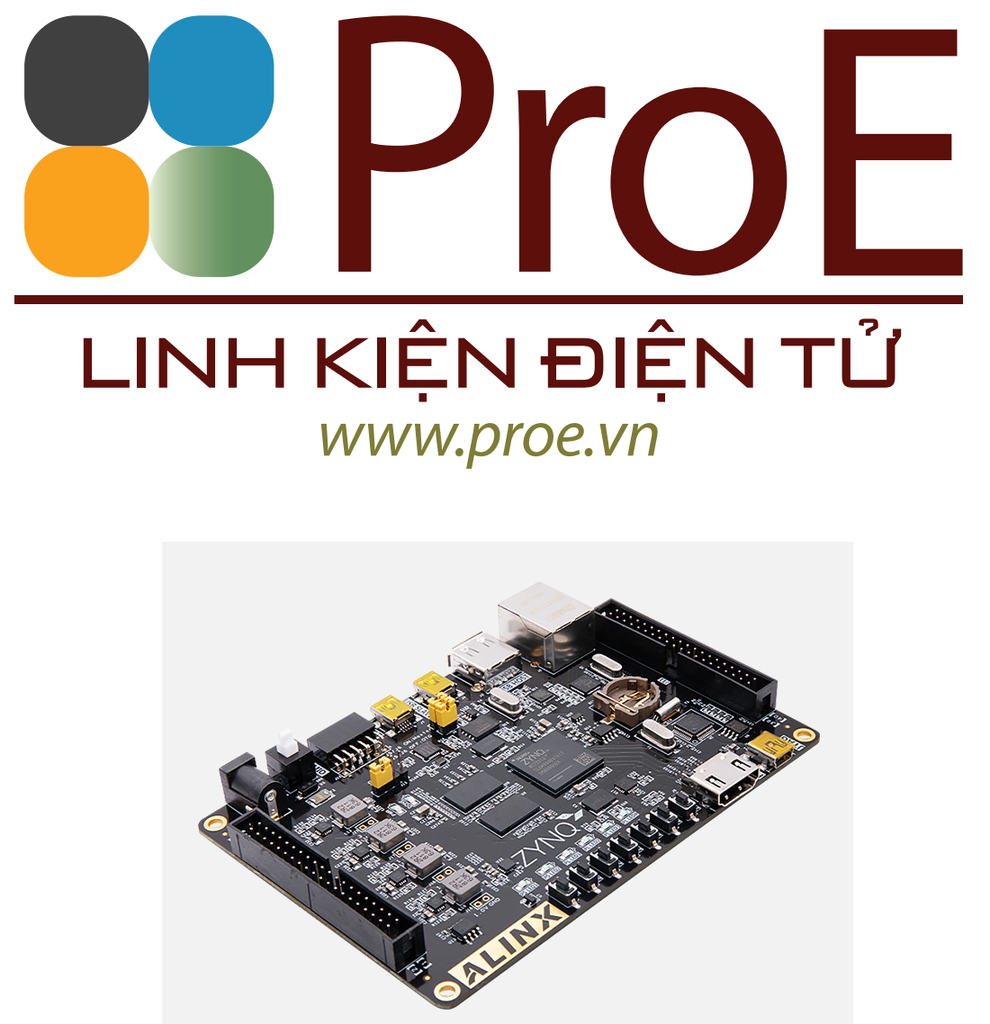

ALINX AX7020 with AMD Zynq 7000 SoC FPGA Development Board

ALINX AX7020: with the AMD Zynq 7000 SoC XC7Z020 FPGA Development Board, it features embedded processing with Dual ARM Cortex-A9 core processors. The AX7020 industrial FPGA board includes all the basic components of hardware, and pre-verified reference designs, Gigabit Ethernet, HDIM Video Output, USB 2.0 Host, USB 2.0 OTG, USB-to-UART, PMOD, Micro SD TF Card Slot, 2*40-pin connectors (expansion opportunities with ALINX Module, such as AD/DA data acquisition module, camera and LCD module), AMD USB Cable downloader circuit. Provide user manual, Schematic and Verilog HDL Demos for study, supports PYQN development.

The AX7020 FPGA board is the ZYNQ Entry-level Development Platform, it is suitable for software verification and for hardware design of hardware developers, accelerate the development process of the project.

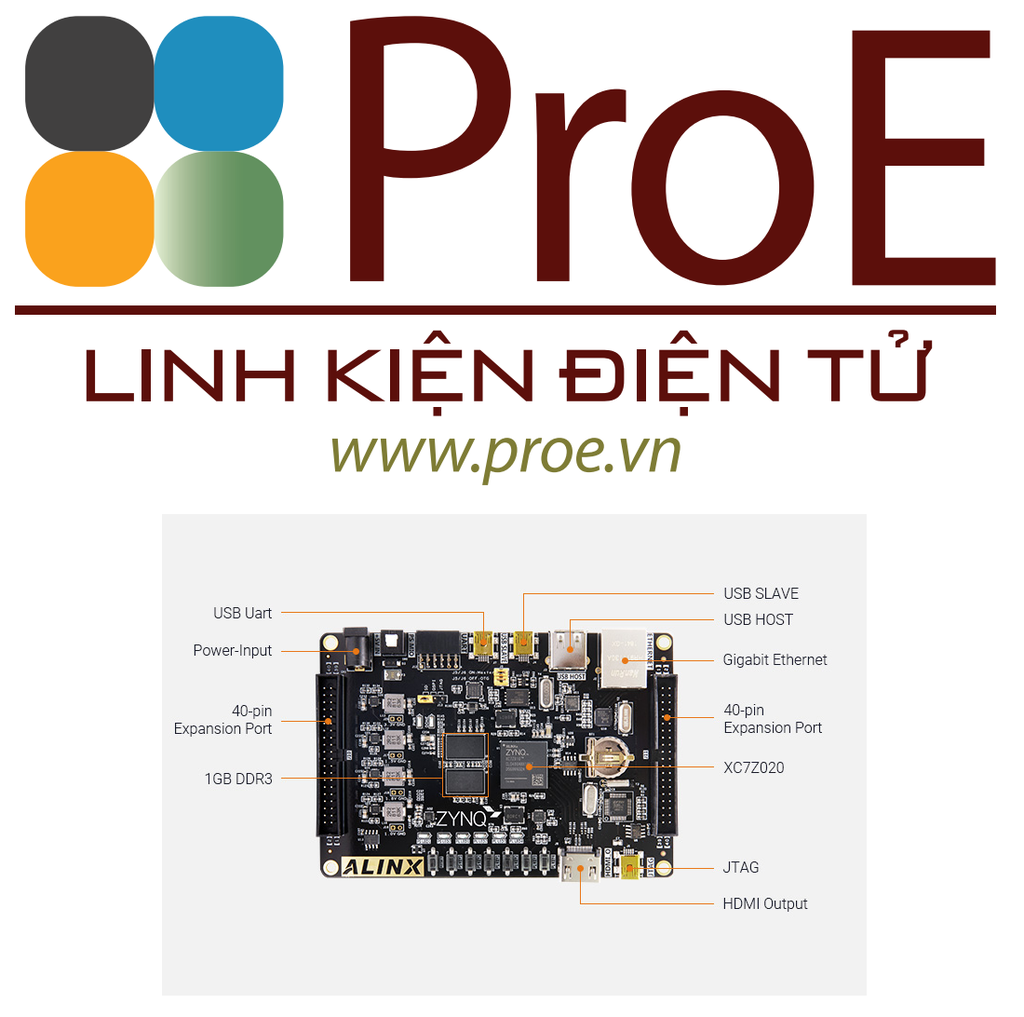

Key Features and Benefits

• 10/100/1000 Ethernet RJ45 Connector
• USB2.0 HOST/OTG connector
• USB-UART connector

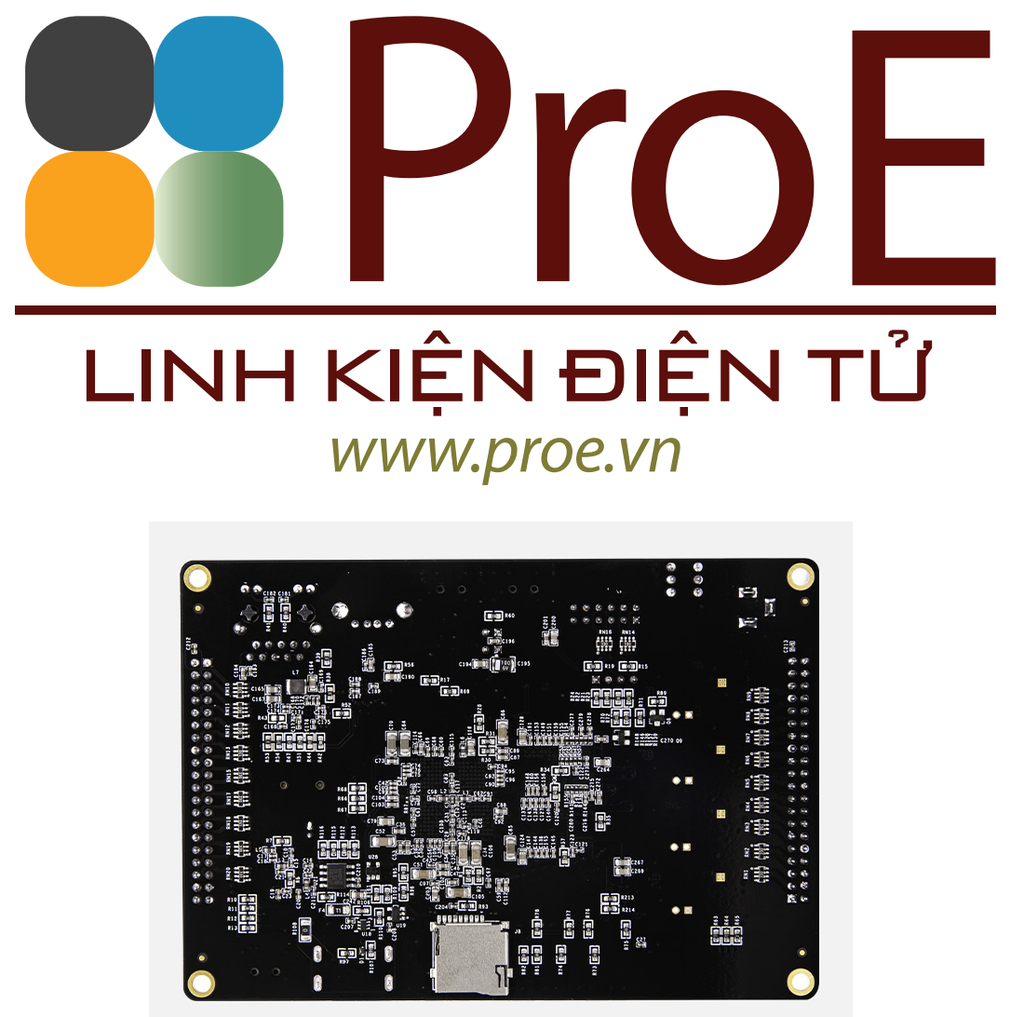

• Micro SD socket
• HDMI output Output up to 1080P, 60Hz
• 1GByte DDR3 memory
• 128Mbit QSPI FLASH
• AMD chip XC7Z020
• Two 40pin Expansion connector

What's Included

• 5V 2A DC Adaptor
• AX7020 FPGA Development Board
• Mini USB Cable, 2 pics
• TF Card and Card Reader
• Transparent Protection Board (Fixed on the Board)
