Arducam 2MP Low Light USB Camera Module with M12 Lens
- Mã sản phẩm: B0520
- Nhà sản xuất: uctronics
- Website hỗ trợ: https://www.proe.vn
2.700.000₫
Overview
The Arducam Tiny USB Camera features a high-quality Sony 1/2.8″ CMOS sensor with an 80dB wide dynamic range.
This compact camera measures just 19.5 x 15 x 17.3 mm and includes a pinhole lens with a 95° diagonal angle. It boasts the smallest camera board and M12 lens, housed in a CNC metal heat dissipation casing.
TThe camera is UVC drive-free, supporting Windows XP/7/8/10, Linux, and Mac OS. Just plug it into your device via USB Type-C or the included Type-C to USB-A adapter—no additional drivers needed.
Applications
- Home Security Surveillance
- Video Surveillance
- 3D Scanning and Metrology
- Live Streaming
- Nanny Camera
Features
- High-Quality Imaging: Equipped with a Sony 1/2.8″ color CMOS sensor with an 80dB wide dynamic range, and a conical lens providing a 95° diagonal angle for fluent 1080P30 video recording.
- Enhanced Low Light Performance: Designed to excel in low light conditions, capturing detailed HD images even in minimal lighting.
- Compact and Portable: Measuring just 19.5 x 15 x 17.3 mm, this lightweight camera is perfect for use with smartphones, tablets, and laptops, making it easy to carry and connect on the go.

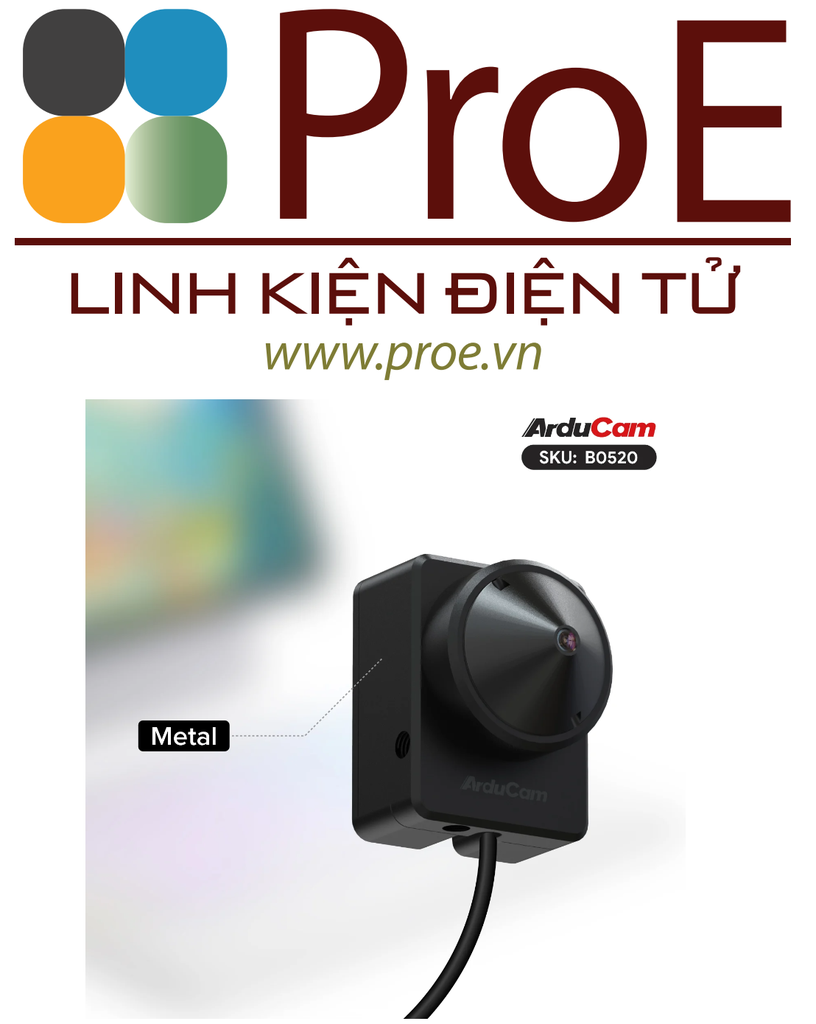

- Miniature Design: Features the smallest camera board and M12 lens in a unique CNC metal heat dissipation housing. Includes a Type-C connector and a Type-C to USB-A port adapter, expanding your connectivity options.
- Plug & Play: UVC drive-free compatibility supports Windows XP/7/8/10, Linux, and Mac OS. Easily connect to your PC, laptop, or Raspberry Pi via USB with no additional drivers needed.
Specifications
| Image Sensor | |
| Still Resolution | 2 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Rolling |
| Optical Size | 1/2.8″ |
| Output Format | MJPG/YUY2/H.264 |
| Pixel Size | 2.9μm x 2.9μm |
| Sensor Active Area | 1937(H) x 1097(V) |
| Frame Rate (USB 2.0) | MJPG: 30fps@1920×1080, 1280×720, 800×600, 640×480, 320×240; YUY2: 30fps@640×480, 320×240; 10fps@1280×720,800×600; 5fps@1920×1080; H.264: 30fps@1920×1080, 1280×720, 800×600, 640×480, 320×240; |
| Lens | |
| Focus Type | Manual Focus |
| FOV | 95°(D) ×82° (H)×66°(V) |
| Lens Mount | M12 Lens |
| F.NO | F2.5 |
| E.F.L | 3.7mm |
| TV Distortion | <-13% |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Default Focus Range | 1m-∞ |
| USB Interface | |
| Interface | USB 2.0 Device |
| Connector | USB Type-C |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical | |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.1W |

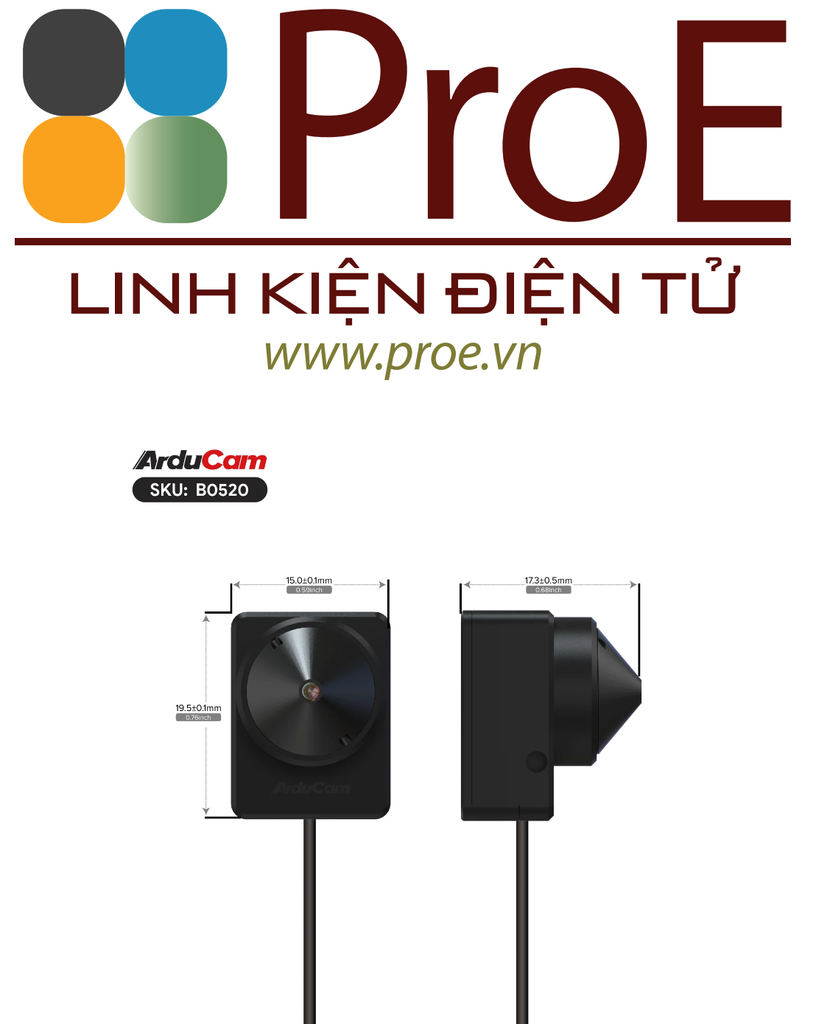

| Overall Size | 19.5×15×17.3 mm |
| Functionality and Compatibility | |
| Supported OS | Windows, Linux, Android and MAC OS |
| Recommend Sample Application | Amcap for Windows |
| UVC Controls | Brightness, Hue, Contrast, Saturation, Sharpness, Gamma, White Balance (Manual/Auto), Gain, Backlight Comp, Exposure (Manual/Auto) |

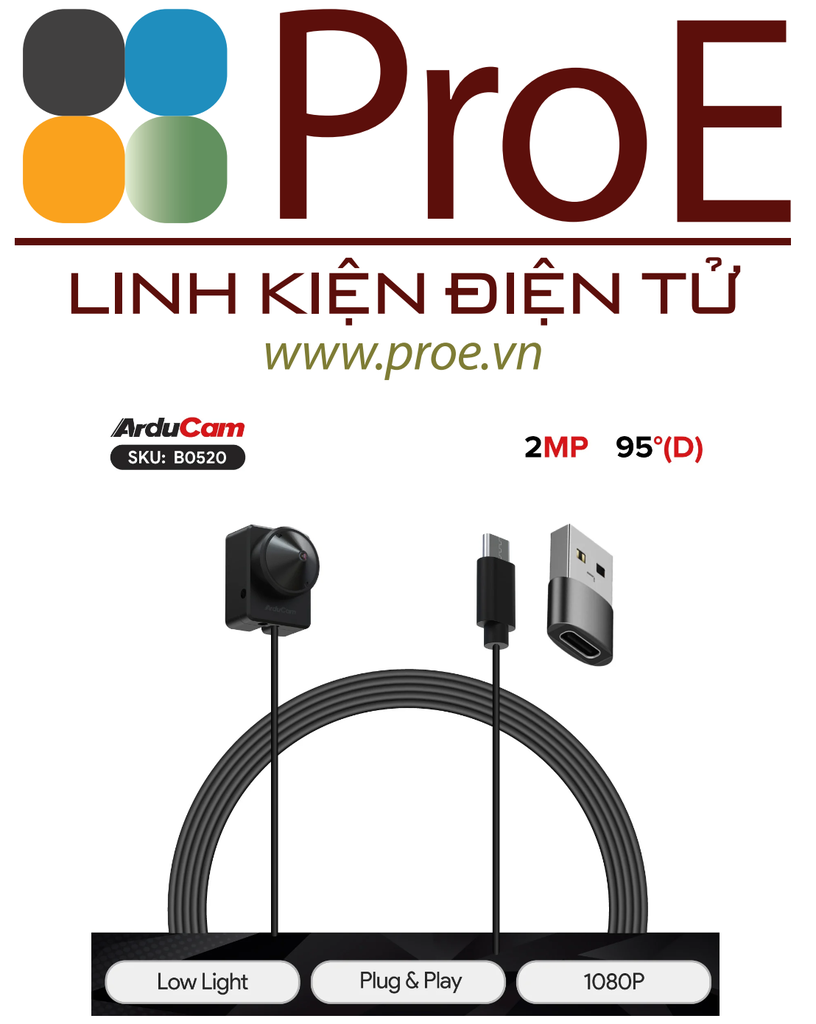

Package Including
- 1 x Arducam 2MP Camera Module with USB Type-C Cable (1m)
- 1 x USB Type-C to USB A adapter
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description
Documentation
