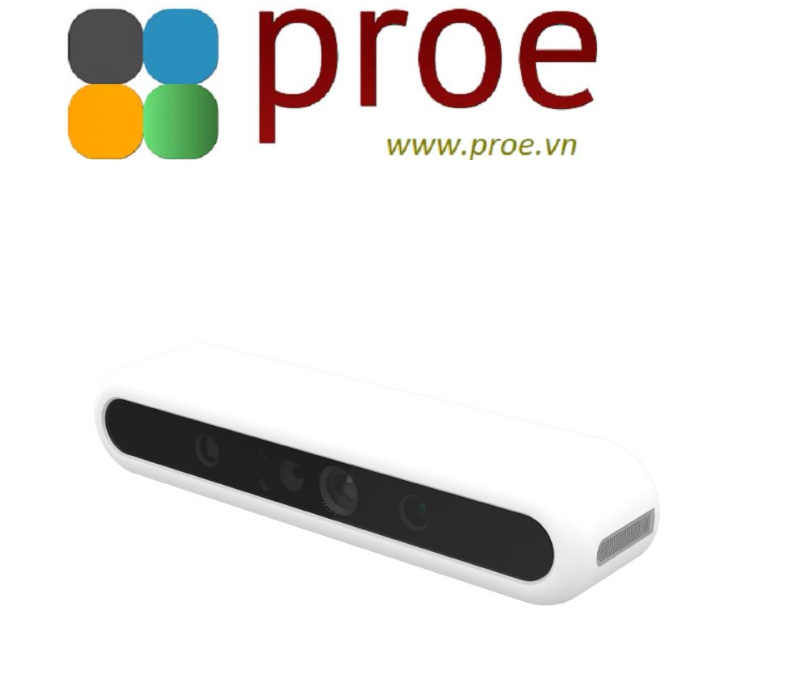

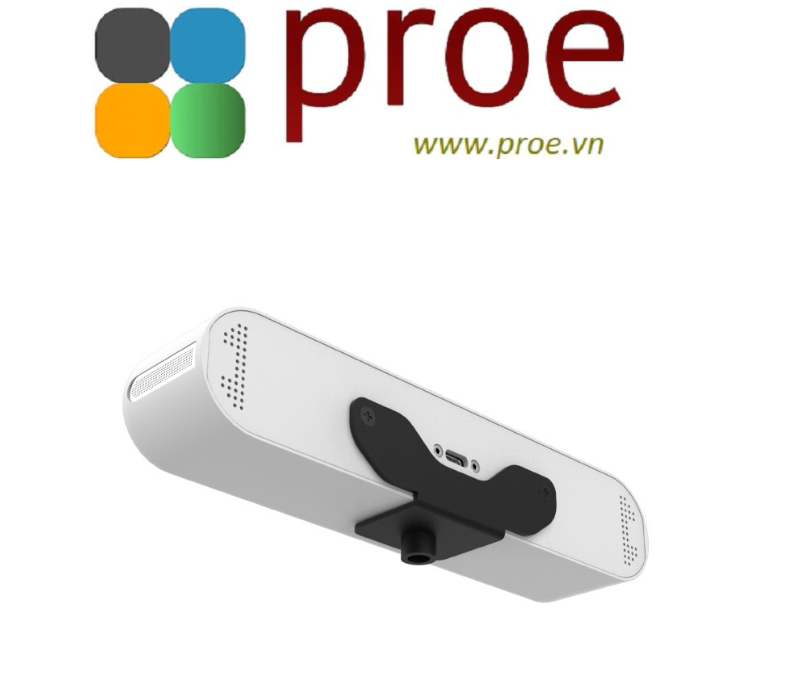

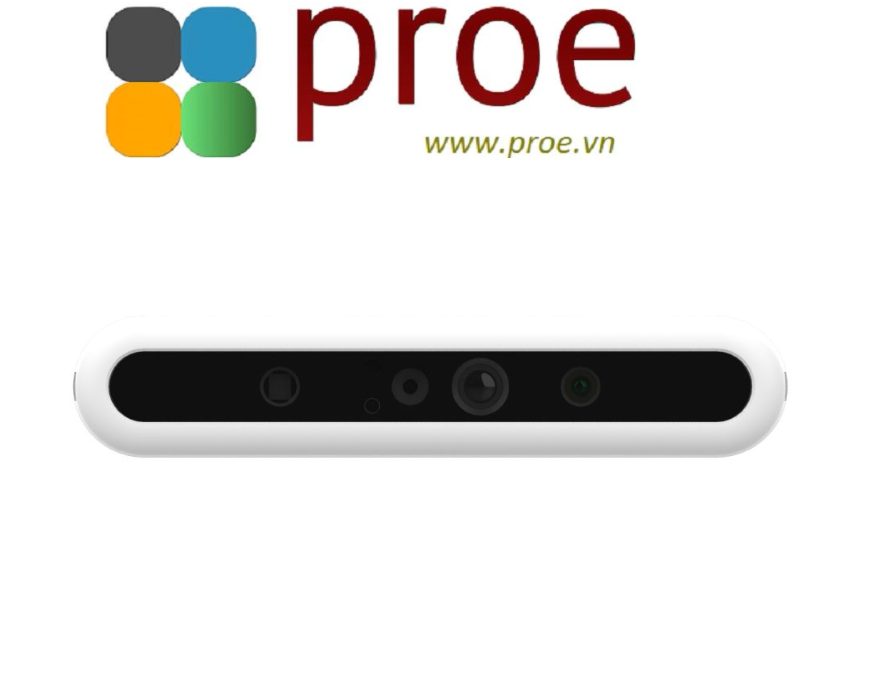

ASTRA + DEVELOPER KIT

Details

The Astra + Developer kit is a cutting-edge spatial computing developer kit with sophisticated computer vision and advanced AI sensors. Using structured light and image processing, Astra + computes a 3D image of the observed environment in real-time. Astra + provides accurate 3D perception even under difficult conditions.

Using Astra + Developer Kit provides a base for manufacturing, retail, healthcare, and businesses to leverage spatial data to increase performance, improve outcomes, and revolutionize the customer experience. The Astra + offers high resolution, precision via Orbbec’s innovative sensor technology, plus powerful features at an attractive price, making the Astra + premier in the market.

Technical Specs

Product Name

Astra +

Range

0.6m – 8m

RGB FOV

H74°, V59°, D86.5°

DEPTH FOV

H55°, V45, D65°

RGB Image Resolution

Up to 1920 x 1080 @30fps

Depth Image Resolution

640 x 480 @30fps

Power Supply

USB Type C

Temperature

0 – 40°C

Data Transfer

USB 3.0 Type-C

Power Consumption

Average 804mA (Depth VGA @ 30fps, RGB 1080P @ 30fps)

Operating Systems

Android / Linux / Windows7/8/10

SDK

Orbbec SDK

Dimensions

178.32*35.32*38.10mm

Weight

252g
