Product Description

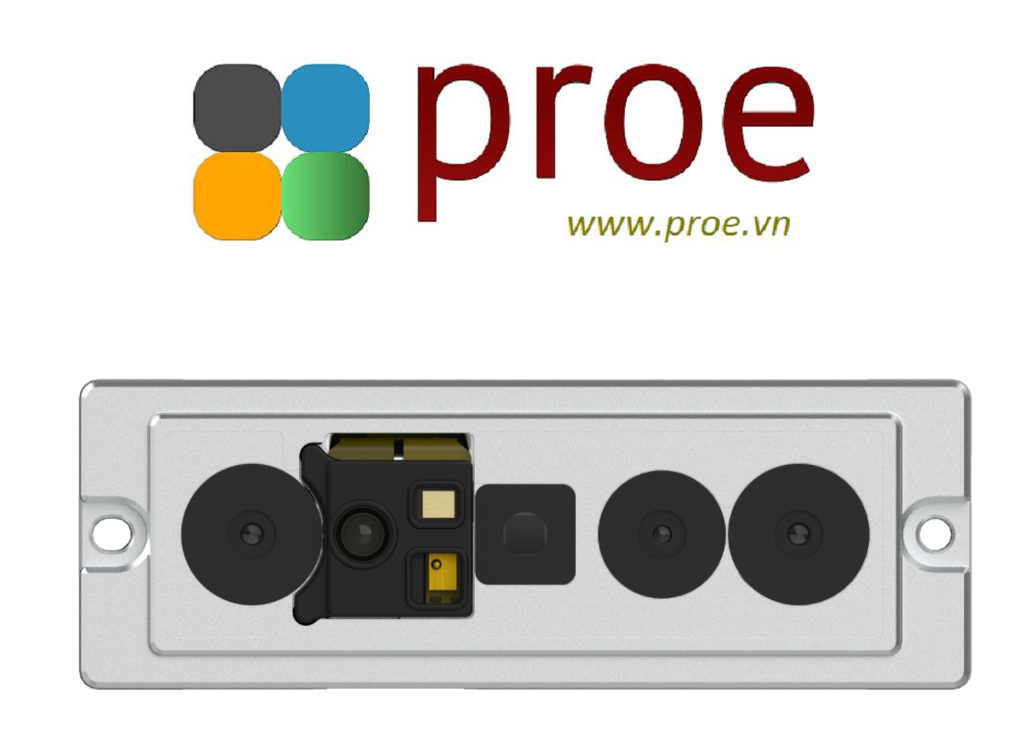

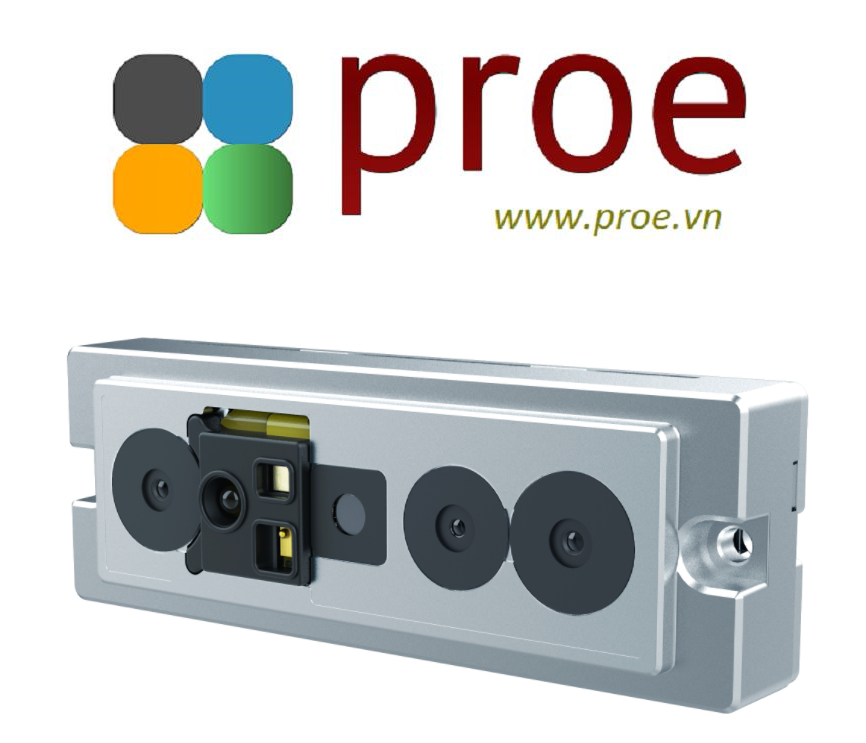

Astra Stereo S U3 combines all the benefits of Astra Stereo S but with a USB 3.0 to provide for a more powerful camera but with the same great outdoor and multi-camera capabilities. This advanced 3D camera has another trick up its sleeve! A lot of depth applications require the need for multiple cameras, especially in retail environments. The Astra Stereo S US solves this problem by allowing 3D cameras to be placed in close proximity to one another.
The Astra Stereo S U3 provides computer vision that enables dozens of functions for close range high precision applications such as retail, automotive, robot picking, objective measurement, and home security etc.
Product Name |
Astra Stereo S U3 |
Dimensions |
65.3mm x 22.50mm x 12.30mm |
Range |
0.25-2.5m |
Power Consumption |
Average: 2.2W |
Depth Resolution Framerate |
1280×800@30FPS; 640×400@60FPS; 640×400@30FPS |
RGB Resolution Framerate |
1920×1080@30FPS; 1280×720@30FPS; 640×480@30FPS |
Depth FOV |
H67.9° V45.3° D78°±3.0° |
RGB FOV |
H71.5° V56.7° D84° |
Data Transfer |
USB Type C |
RGB Interface |
UVC |
Operating System |
Android / Linux / Windows7/8/10 |
Power |
USB Type C |
Operating Temperature |
10°C ~ 40°C |
Rating |
Class 1 Laser Product |
