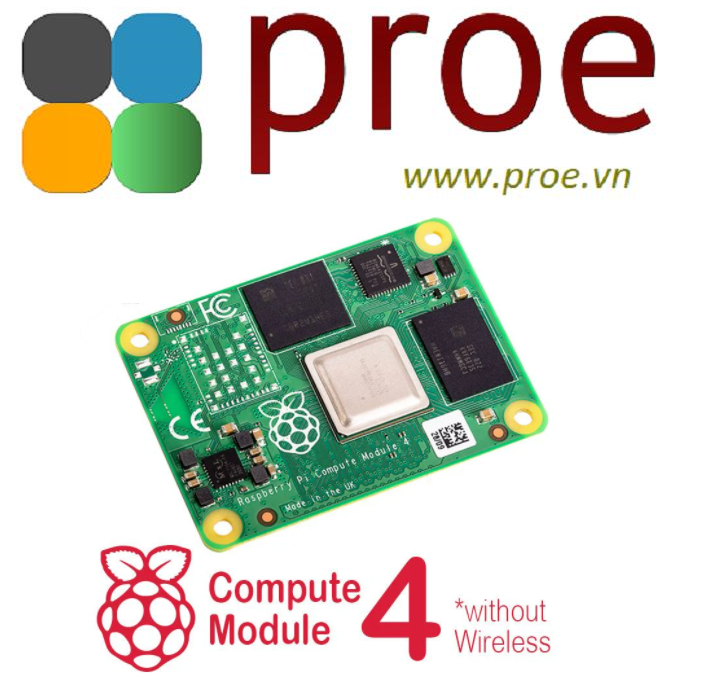

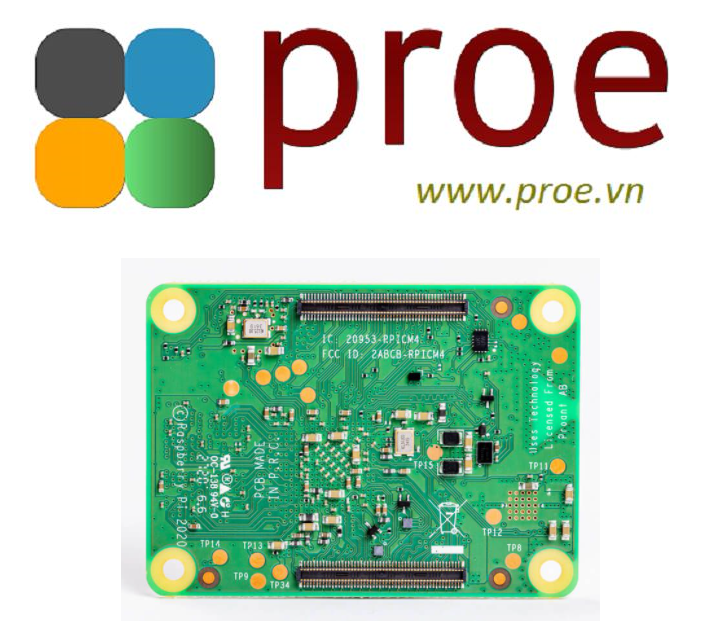

CM4 1GB RAM 16GB eMMC

Products to help you design with Compute Module 4

The Raspberry Pi Compute Module 4 IO Board is an invaluable development tool. Exposing every interface from Compute Module 4, the IO Board provides a development platform and reference base-board design for our most powerful Compute Module yet, and is also designed for integration into end products.

The Raspberry Pi Compute Module 4 Antenna Kit is certified for use with Raspberry Pi Compute Module 4.

Specification

• Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
• OpenGL ES 3.0 graphics
• Options for 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on variant)
• Options for 0GB ("Lite"), 8GB, 16GB or 32GB eMMC Flash memory (depending on variant)
• Option for fully certified radio module:
  2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless;
  Bluetooth 5.0, BLE;
  On-board electronic switch to select either external or PCB trace antenna

Documents

Raspberry Pi Compute Module 4 product brief

Raspberry Pi Compute Module 4 datasheet

Compute Module 4 STEP file

Compute Module 4 Lite (without eMMC) STEP file
