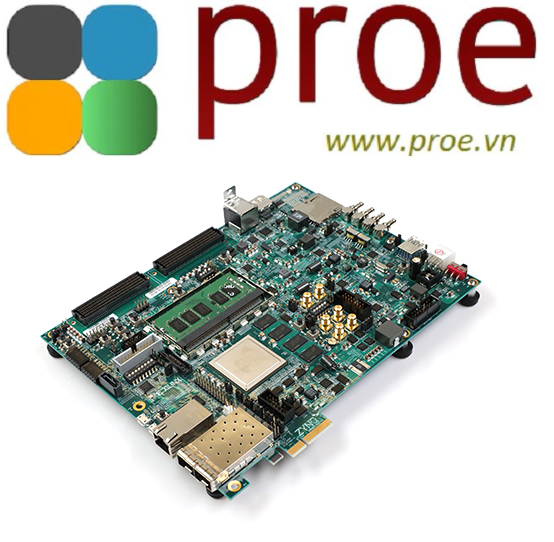

EK-U1-ZCU106-G Zynq UltraScale+ MPSoC ZCU106 Evaluation Kit

Product Description

The ZCU106 Evaluation Kit enables designers to jumpstart designs for video conferencing, surveillance, Advanced Driver Assisted Systems (ADAS) and streaming and encoding applications. This kit features a Zynq® UltraScale+™ MPSoC EV device and supports all major peripherals and interfaces, enabling development for a wide range of applications. The included ZU7EV device is equipped with a quad-core Arm® Cortex®-A53 applications processor, dual-core Cortex-R5 real-time processor, Mali™-400 MP2 graphics processing unit, 4KP60 capable H.264/H.265 video codec, and 16nm FinFET+ programmable logic.

Key Features & Benefits

• Optimized for quick application prototyping with Zynq UltraScale+ MPSoC
• Integrated video codec unit supports H.264/H.265
• HDMI video input and output
• PCIe® Endpoint Gen3x4, USB3, DisplayPort & SATA

• DDR4 SODIMM – 72-bit attached to processor subsystem
• DDR4 Component – 64-bit attached to programmable logic
• 2x SFP+ cages
• 2x FPGA mezzanine card (FMC) interfaces for I/O expansion

Featured Xilinx Devices

Featuring the Zynq UltraScale+ XCZU7EV-2FFVC1156 MPSoC

Board Features

Featuring the Zynq UltraScale+ XCZU7EV-2FFVC1156 MPSoC

Configuration

• Onboard JTAG circuitry to enable configuration over USB
• Dual quad-SPI flash memory
• Boot from SD card

Memory

• PS DDR4 72-bit SODIMM
• PL DDR4 component
• Quad-SPI flash
• SD card slot

Control & I/O

• 6x directional pushbuttons
• DIP switches
• PMBUS & System Controller MSP430 for power, clocks, and I2C bus switching
• USB2/3

Expansion Connectors

• 2x FMC-HPC connectors
• 2 Pmod headers

Communication & Networking

• SDI (x1 GTH)
• AES3 audio connector
• SFP+ cage (2x 2GTH)
• SMA (x1 GTH)
• UART to USB bridge
• RJ-45 Ethernet connector
• SATA (1x GTR)
• PCIe Gen3 Endpoint (x4 GTH)

Display

• HDMI video input and output (x3 GTH)
• DisplayPort (2x GTR)

Clocking

• Programmable clocks
• System clocks, user clocks, jitter attenuated clocks

What's Inside

ZCU106 Evaluation Board

Access to a full seat of Vivado® Design Suite: Design Edition

Node locked & Device-locked to the XCZU7EV MPSoC FPGA, with 1 year of updates

Ethernet Cable

USB Micro Cable

4-Port USB 3.0 Hub

ATX Power Supply Adapter Cable

Power Cord and Adapter
