EK-V7-VC707-G Xilinx Virtex-7 FPGA VC707 Evaluation Kit

Product Description

The Virtex®-7 FPGA VC707 Evaluation Kit is a full-featured, highly-flexible, high-speed serial base platform using the Virtex-7 XC7VX485T-2FFG1761C and includes basic components of hardware, design tools, IP, and pre-verified reference designs for system designs that demand high-performance, serial connectivity and advanced memory interfacing. The included pre-verified reference designs and industry-standard FPGA Mezzanine Connectors (FMC) allow scaling and customization with daughter cards.

Key Features & Benefits

• 40Gb/s Connectivity platform for high-bandwidth and high-performance applications using Virtex-7 VX485T FPGAs
• Hardware, design tools, IP, and pre-verified reference designs
• Supports embedded processing with MicroBlaze, soft 32bit RISC
• Enabling serial connectivity with PCIe Gen2x8, SFP+ and SMA Pairs, UART, IIC

• Advanced memory interface with 1GB DDR3 SODIM Memory up to 800MHz / 1600Mbps
• Develop networking applications with 10-100-1000 Mbps Ethernet (GMII, RGMII and SGMII)
• Expand I/O with the FPGA Mezzanine Card (FMC) interface

Featured Xilinx Devices

Featuring the ROHS compliant kit including the XC7VX485T-2FFG1761 FPGA

PRODUCT INFORMATION

• Specifications
• What’s Inside

Board Features

Featuring the VC707 Evaluation Board

Clocking

• Fixed Oscillator with differential 200MHz output used as the “system” clock for the FPGA
• Programmable Oscillator with 156.250 MHz as the default output and frequency targeted for Ethernet applications but oscillator is programmable for many end uses
• Differential SMA clock input
• Differential SMA GTX reference clock input
• Jitter attenuated clock used to support CPRI/OBSAI applications that perform clock recovery from a user-supplied SFP/SFP+ module

Configuration

• Onboard JTAG configuration circuitry to enable configuration over USB
• JTAG header provided for use with Xilinx download cables such as the Platform Cable USB II
• 128MB (1024Mb) Linear BPI Flash for PCIe® Configuration
• 16MB (128Mb) Quad SPI Flash

Expansion Connectors

• FMC1 – HPC (8 XCVR, 160 single ended or 80 differential (34 LA pairs, 24 HA pairs, 22 HB pairs) user-defined pins)
• FMC2 – HPC (8 XCVR, 116 single ended or 58 differential (34 LA pairs, 24 HA pairs) user-defined pins)
• Vadj supports 1.8V
• IIC

Communication & Networking

• Gigabit Ethernet GMII, RGMII and SGMII
• SFP+ transceiver connector
• GTX port (TX, RX) with four SMA connectors
• UART To USB Bridge
• PCI Express x8 gen2 Edge Connector (lay out for Gen3)

Memory

• 1GB DDR3 SODIMM 800MHz / 1600Mbps
• 128MB (1024Mb) Linear BPI Flash for PCIe Configuration
• SD Card Slot
• 8Kb IIC EEPROM

Control & I/O

• 5X Push Buttons
• 8X DIP Switches
• Rotary Encoder Switch (3 I/O)
• AMS FAN Header (2 I/O)

Debug & Analog Input

• 8 GPIO Header, 9 pin removable LCD
• Analog Mixed Signal (AMS) Port

Power

• 12V wall adapter or ATX
• Voltage and Current measurement capability

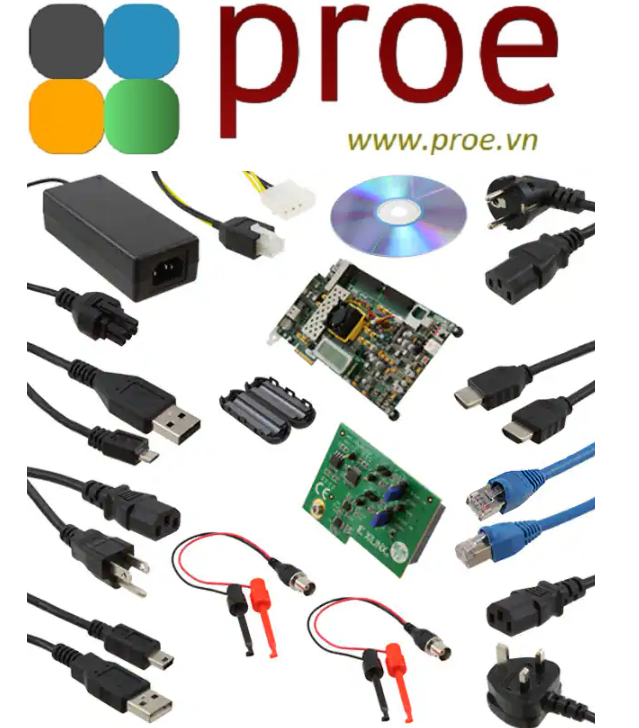

What's Inside

VC707 Evaluation Board

Featuring the Virtex-7 XC7VX485T-2FFG1761C FPGA

Full seat Vivado® Design Suite: Design Edition

Node locked & Device-locked to the Virtex-7 XC7VX485T FPGA, with 1 year of updates

AMS 101 Evaluation Card

Pairs with free AMS Evaluator tool for analyzing analog data, internal temperature and voltage measurements, and saving data to a .csv file

Ethernet Cable

Micro USB Cable

Mini USB Cable

Power Adapter

Power Cord
