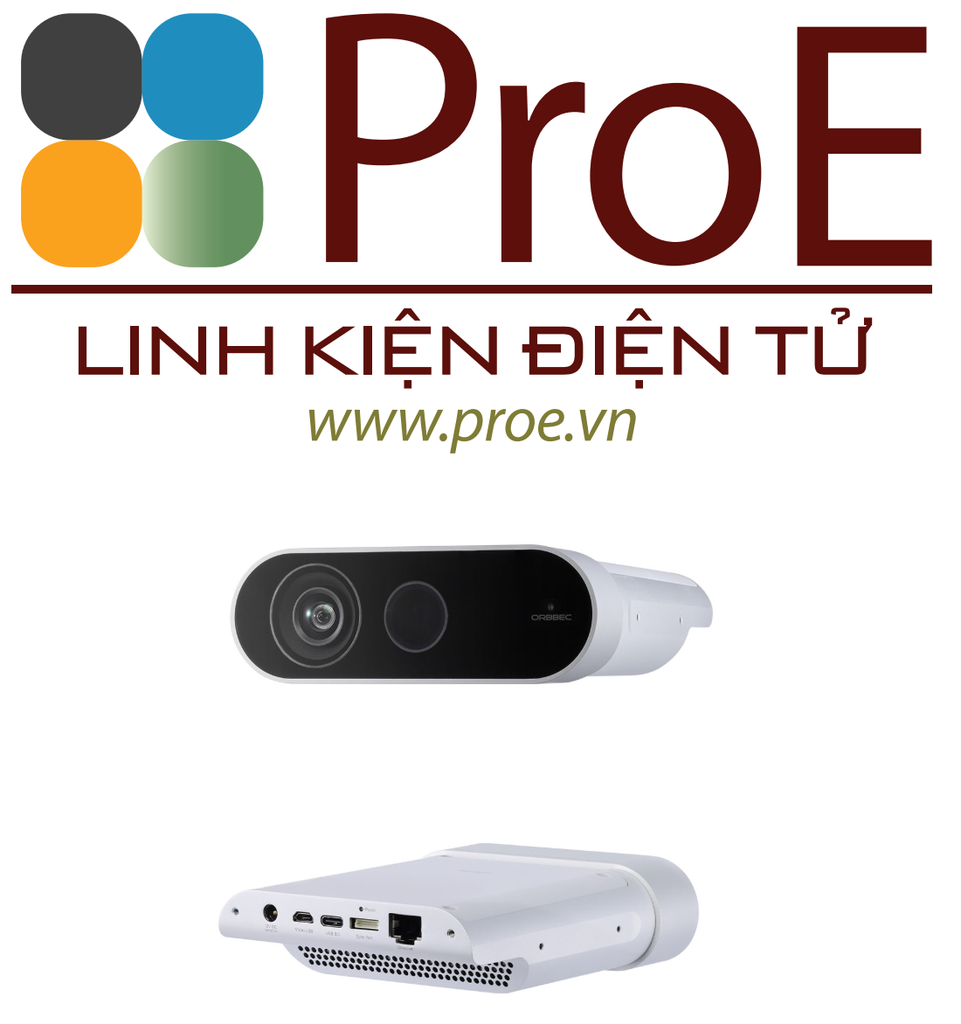

FEMTO MEGA Depth and RGB Camera

Details

Femto Mega is a programmable multi-mode Depth and RGB camera with real-time streaming of processed images over Ethernet or USB connections. The camera uses Microsoft’s industry proven ToF technology and the NVIDIA® Jetson™ platform to deliver a software-defined Depth and RGB vision platform for computer vision and AI developers.

Performance
-High resolution sensor provides detailed scene understanding.
-Wide Field of View covers large area.
-Various operating modes for different applications.

Programmability
-In-camera processing of advanced depth vision algorithms.
-Integrated NVIDIA Jetson Nano™ system-on-module for AI processing can remove need for dedicated compute.
-Orbbec SDK enables easy setup and has a rich set of APIs for integration with various applications.


Technical Specs

Product Name

Femto Mega

Certifications

Class 1, FCC, RoHS 2.0, CE

Accuracy

< 11 mm + 0.1% distance

Depth FOV

NFoV unbinned & binned: H 75° V 65°
WFoV unbinned & binned: H 120° V 120°

RGB FOV

H 80° V 51° D 89°

RGB Resolution Framerate

3840x2160 @Up to 25 FPS
1920x1080 @Up to 30 FPS

Depth Resolution Framerate

WFOV unbinned 1024x1024 @Up to 15 FPS
WFOV 2x2 binned 512x512 @Up to 30 FPS
NFOV unbinned 640x576 @Up to 30 FPS
NFOV 2x2 binned 320x288 @Up to 30 FPS

Range

WFOV unbinned 0.5-3.86m
WFOV 2x2 binned 0.5-5.46m
NFOV unbinned 0.25-2.88m
NFOV 2x2 binned 0.25-2.21m

Processor

Nvidia Jetson Nano

Operating Systems

Windows/ Linux

SDK

Orbbec SDK

Temperature

10-25°C

Data Transfer

USB 3.0 Ethernet

Average Power Consumption

DC: 11W
POE: 13W

IMU

6DoF

Sync

8-Pin Connector

Power Supply

USB Type C;
Power Adapter 5V/3A;
PoE
