Game HAT for Raspberry Pi

PACKAGE CONTENT

Weight: 0.212 kg

For users who have bought this product, you may want the additional HDMI adapter to support the Raspberry Pi 4, please feel free to contact us.

• The 18650 batteries are NOT included.
• Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported, learn more

1. Game HAT x1
2. Acrylic case x1
3. HDMI connector (A) x1
4. HDMI connector (B) x1
5. RPi screws pack x1

1

2

3

4

5

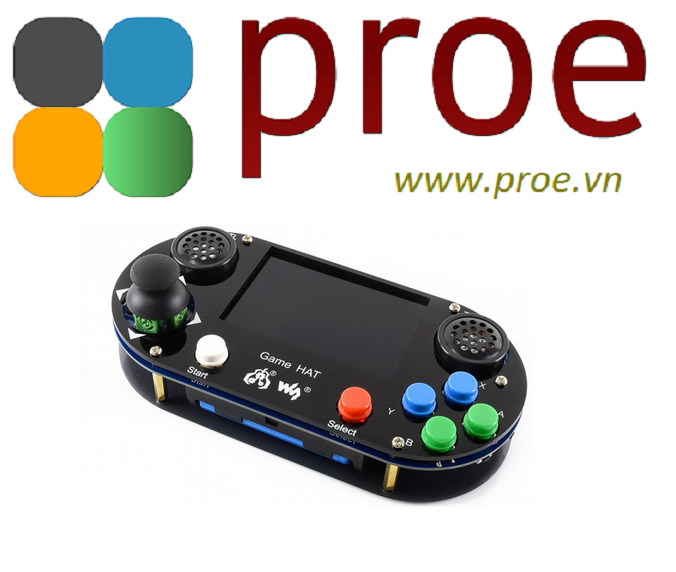

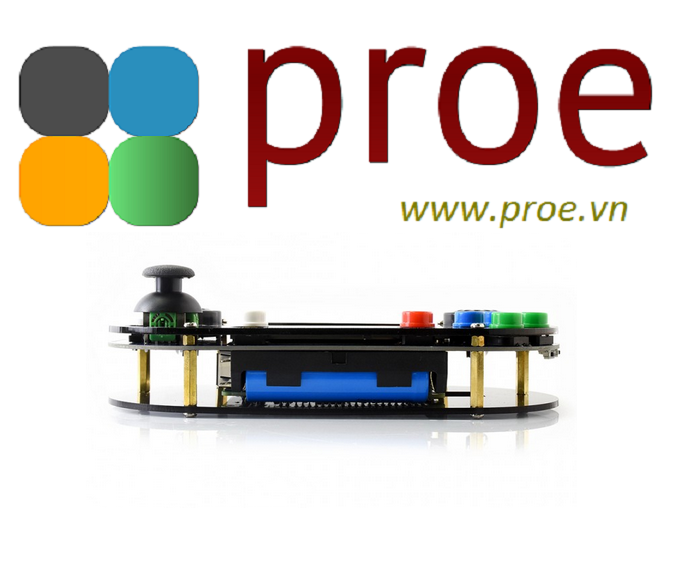

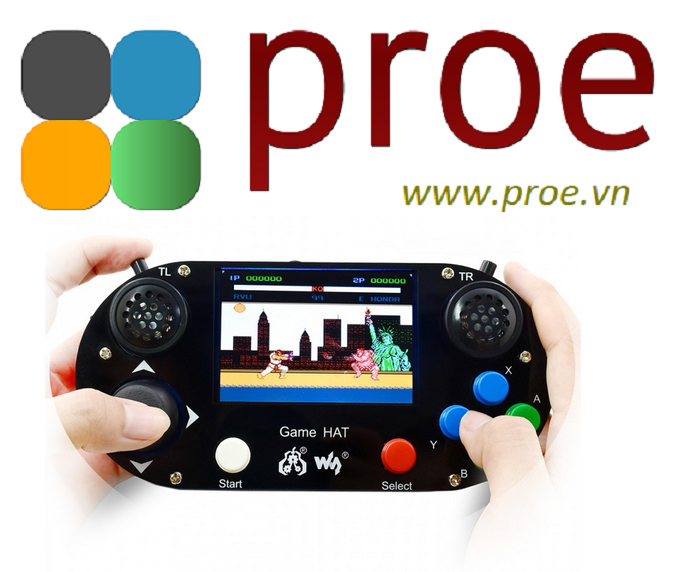

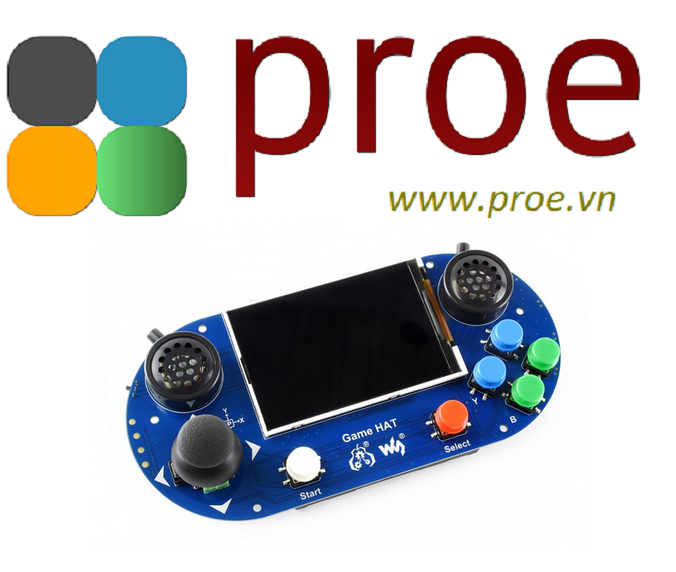

Game HAT for Raspberry Pi, make your own game console

Overview

This Game HAT will turn your Raspberry Pi into a classic game console in a second, recalls you all the gaming pleasures in the memory.

Game HAT Features

• 3.5inch IPS screen, 480×320 resolution
• 60 frame experience, smoothly display, no more frame loss
• Compatible with Raspberry Pi A+/B+/2B/3B/3B+ (Raspberry Pi Zero/Zero W/Zero WH requires another HDMI cable)

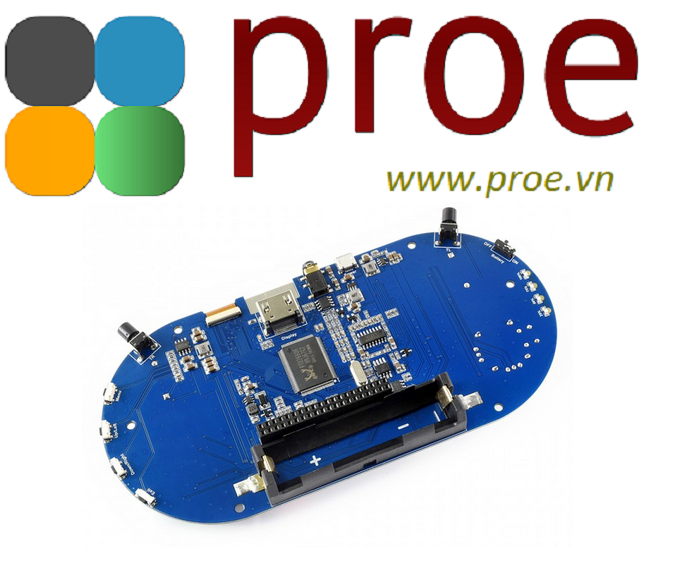

• Integrates battery charge circuitry, powered from a 18650 lithium battery (NOT included), plays anywhere anytime
• Battery capacity indicator
• Onboard speaker and earphone jack, listen to the familiar BGM from the old days

Keys Introduction

• Game function keys vary according to specific game
• Start + Select to exit current game
• Menu, Up/Left, Down/Right, Exit, this four keys on the bottom allow to adjust screen brightness/contrast, volume, etc.

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Game_HAT
