IMX219-83 Stereo Camera

Weight: 0.023 kg

1. IMX219-83 Stereo Camera x1
2. FFC (2PCS) x1
3. PH2.0 4PIN wire x1

1

2

3

Binocular Camera Module, Dual IMX219, 8 Megapixels, Stereo Vision, Depth Vision

Overview

This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.

The module supports NVIDIA Jetson Nano Developer Kit B01 version, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.

Specifications

• 8 Megapixels
• Sensor: Sony IMX219
• Resolution: 3280 × 2464 (per camera)
• Lens specifications:
  • CMOS size: 1/4inch
  • Focal Length: 2.6mm
  • Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
  • Distortion: <1%
  • Baseline Length: 60mm
• ICM20948:
  • Accelerometer:
    • Resolution: 16-bit
    • Measuring Range (configurable): ±2, ±4, ±8, ±16g
    • Operating Current: 68.9uA
  • Gyroscope:
    • Resolution: 16-bit
    • Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec
    • Operating Current: 1.23mA
  • Magnetometer:
    • Resolution: 16-bit
    • Measuring Range: ±4900μT
    • Operating Current: 90uA
• Dimension: 24mm × 85mm

Applications

AI vision applications like depth vision and stereo vision.

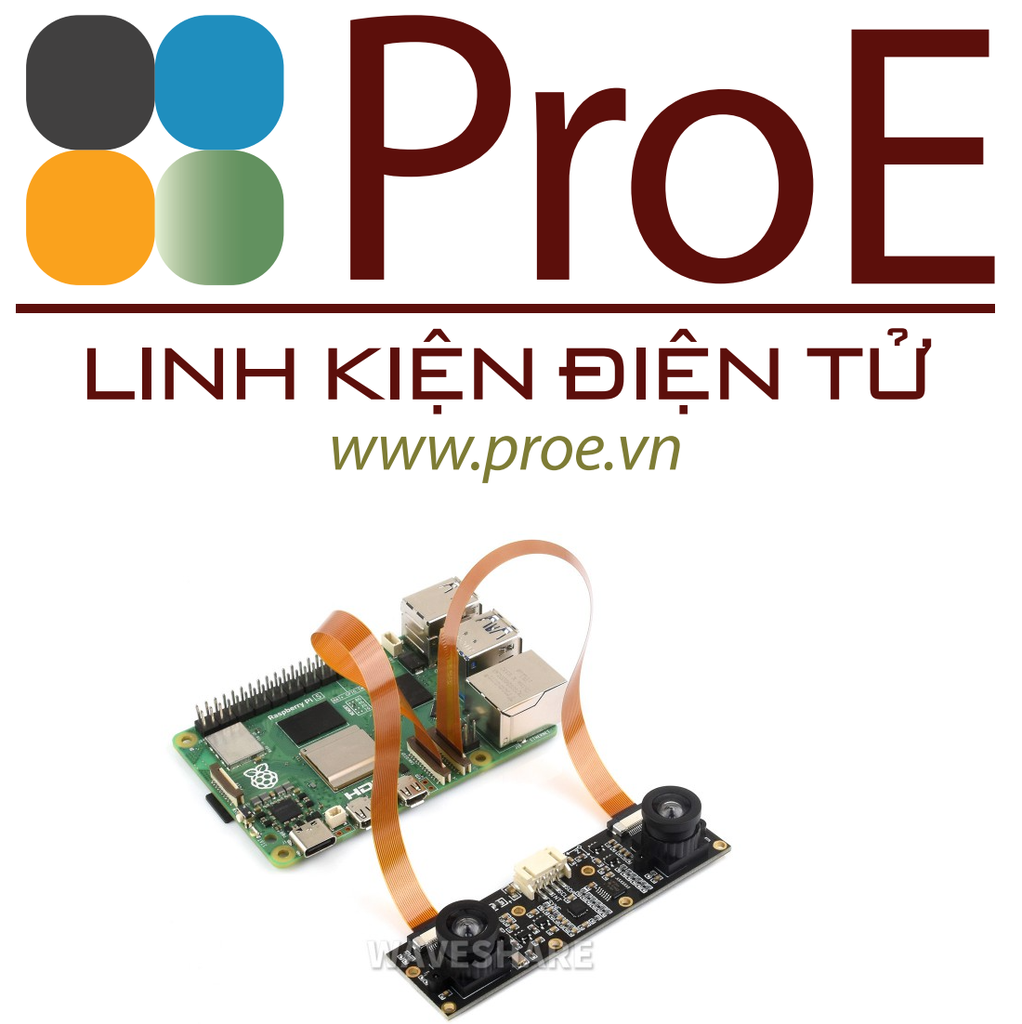

Example

Note: for reference only, Jetson Nano Developer Kit (B01) is NOT included.

Dimensions

Development Resources

Wiki: www.waveshare.com/wiki/IMX219-83_Stereo_Camera
