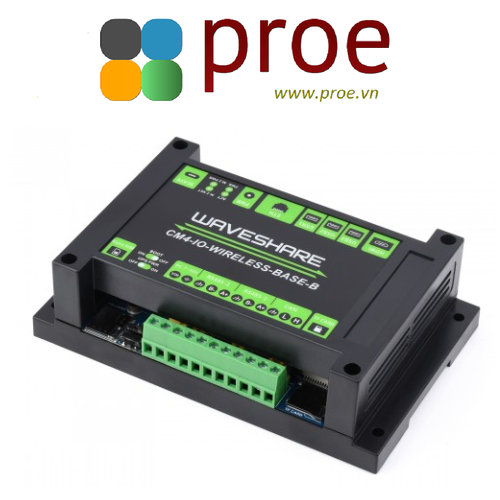

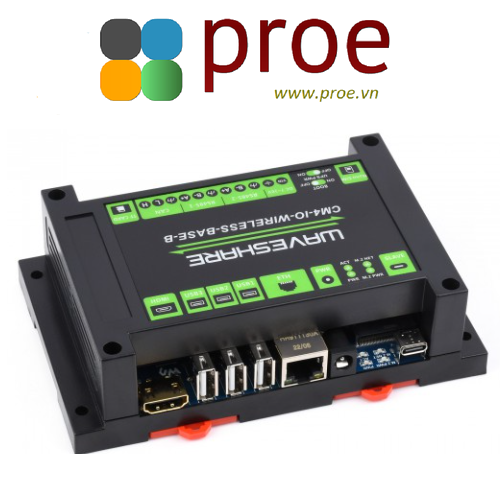

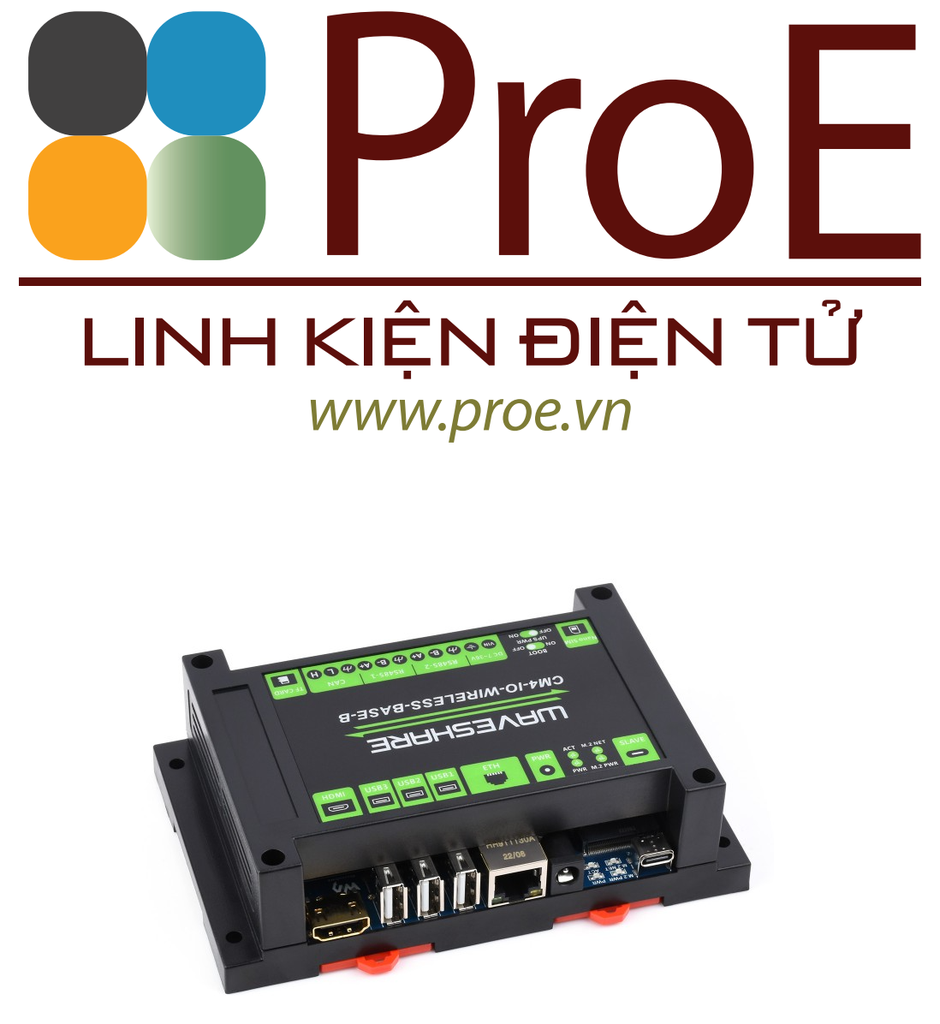

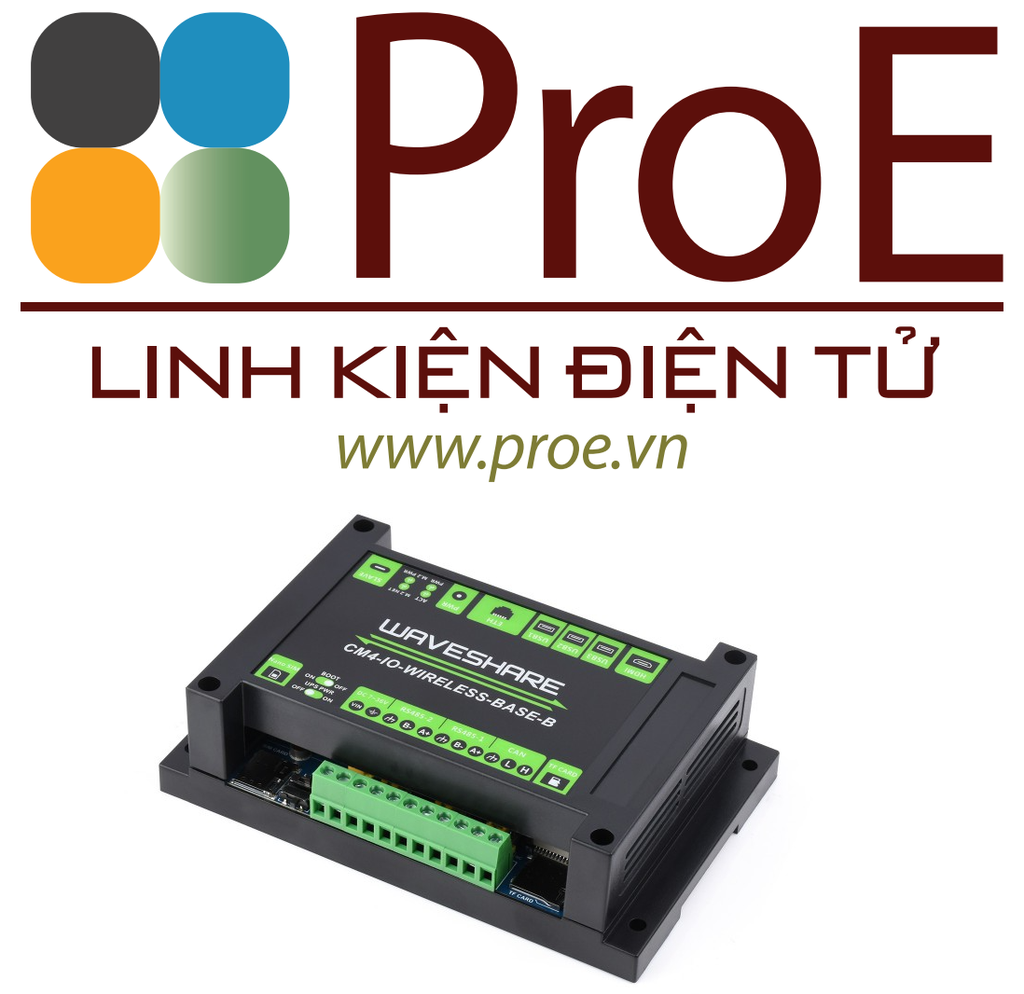

Industrial IoT 5G/4G Wireless Expansion Module Designed for Raspberry Pi Compute Module 4, With UPS Module, Onboard M.2 Slot

WIKI: www.waveshare.com/wiki/CM4-IO-WIRELESS-BASE-B

PACKAGE CONTENT

1. CM4-IO-WIRELESS-BASE-B x1
2. Screwdriver x1
3. OPTIONS 4G module
   SIM7600G-H-M.2 x1
   12V 2A power adapter x1
   PCB antenna (IPEX connector) x1

DESCRIPTION

Industrial IoT 5G/4G Wireless Expansion Module Designed For Raspberry Pi Compute Module 4, With UPS Module, Onboard M.2 Slot

Industrial IoT Module Based On CM4 With UPS Module

Suitable For IoT Applications Like IoT Getaway, Wireless Router, Intelligent Data Acquisition...

4G/5G Support, Multi Interfaces, Onboard UPS Module

This is an industrial expansion module based on Raspberry Pi CM4 with UPS module, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G wireless communication modules to be connected via the M.2 B KEY socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.

Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.

Version Upgrade

Old Version
CM4-IO-WIRELESS-BASE

New version
CM4-IO-WIRELESS-BASE-B
Onboard UPS Module

Part List Comparison

* please refer to Package Content for exact part list info.

Specifications

Connecting With Compute Module 4

Standard CM4 Socket And Partial Raspberry Pi GPIO Header
Suitable For Compute Module 4 Lite/EMMC Series Module

* for renference only, the CM4 and 10440 lithium batteries are NOT included

4G/5G Wireless Modules Support

Onboard M.2 B KEY Slot, Compatible With 4G/5G Wireless Modules With M.2 B Connector

An additional communication module is required to enable 5G/4G/3G/2G cellular network, recommended: SIM7600G-H-M.2, SIM8202G-M2, SIM8200EA-M2

SIM7600G-H-M.2 4G Module Optional

• 4G/3G/2G communication, GNSS positioning, global coverage
• Standard M.2 B KEY interface, high compatibility
• Multi-constellation high accuracy positioning GNSS receiver support
• Suitable for LTE, UMTS, and GSM network with global coverage
• Abundant software functions: FOTA, LBS, TLS, VoLTE
• Up to 150Mbps (Max) downlink data rate and 50Mbps (Max) uplink data rate
• Supports popular OS driver: Windows, Linux, Android etc.
• AT commands of the SIM7600G-H-M.2 series are compatible with the SIM7500/SIM7600 series modules

• Please refer to SIM7600G-H-M.2 product page for details
• For quantity of 20pcs or more, other M.2 or Mini-PCIe modules are customizable (SIM7600CE-T / E-H / A-H, etc.), feel free to contact us

Rich Interfaces

Reserved Space For Heat Dissipation

with heatsink

with cooling fan

* for reference ONLY, heatsink, cooling fan and 10440 lithium batteries are NOT included.

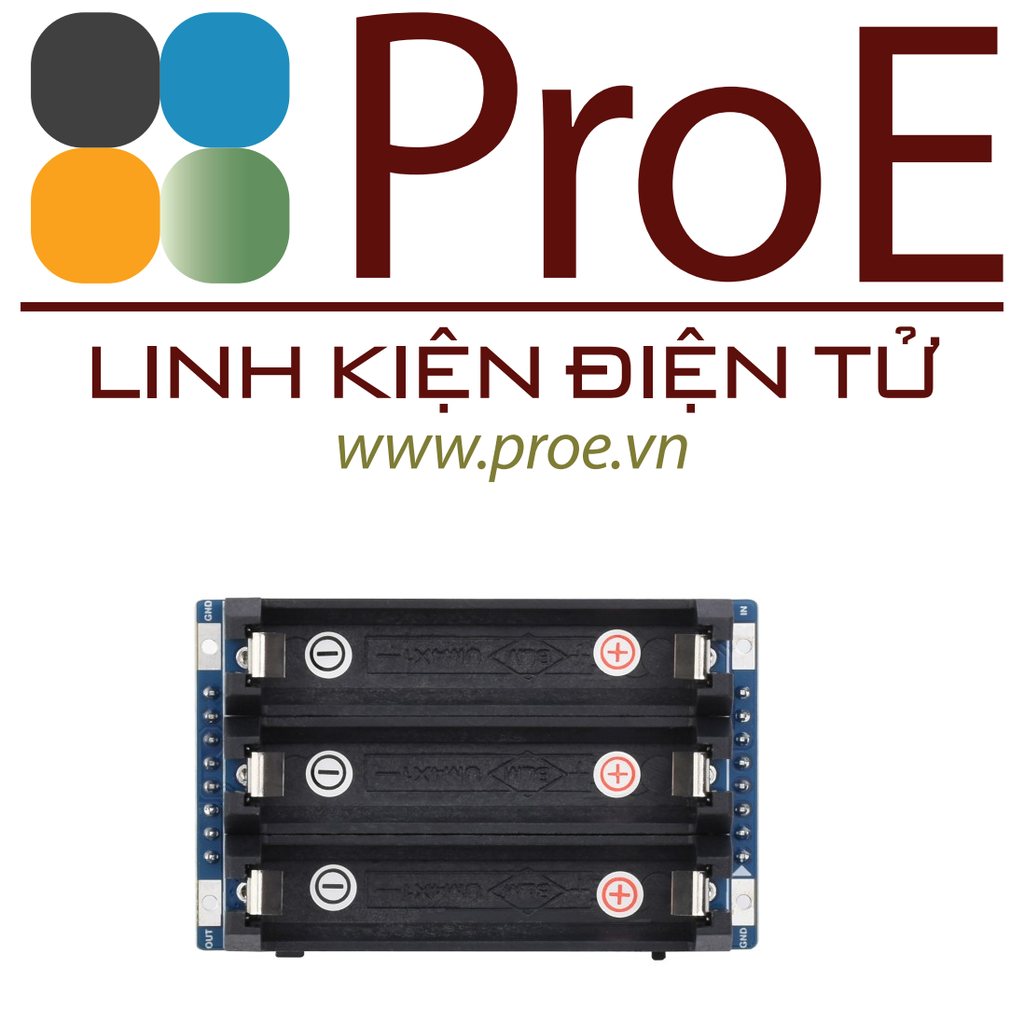

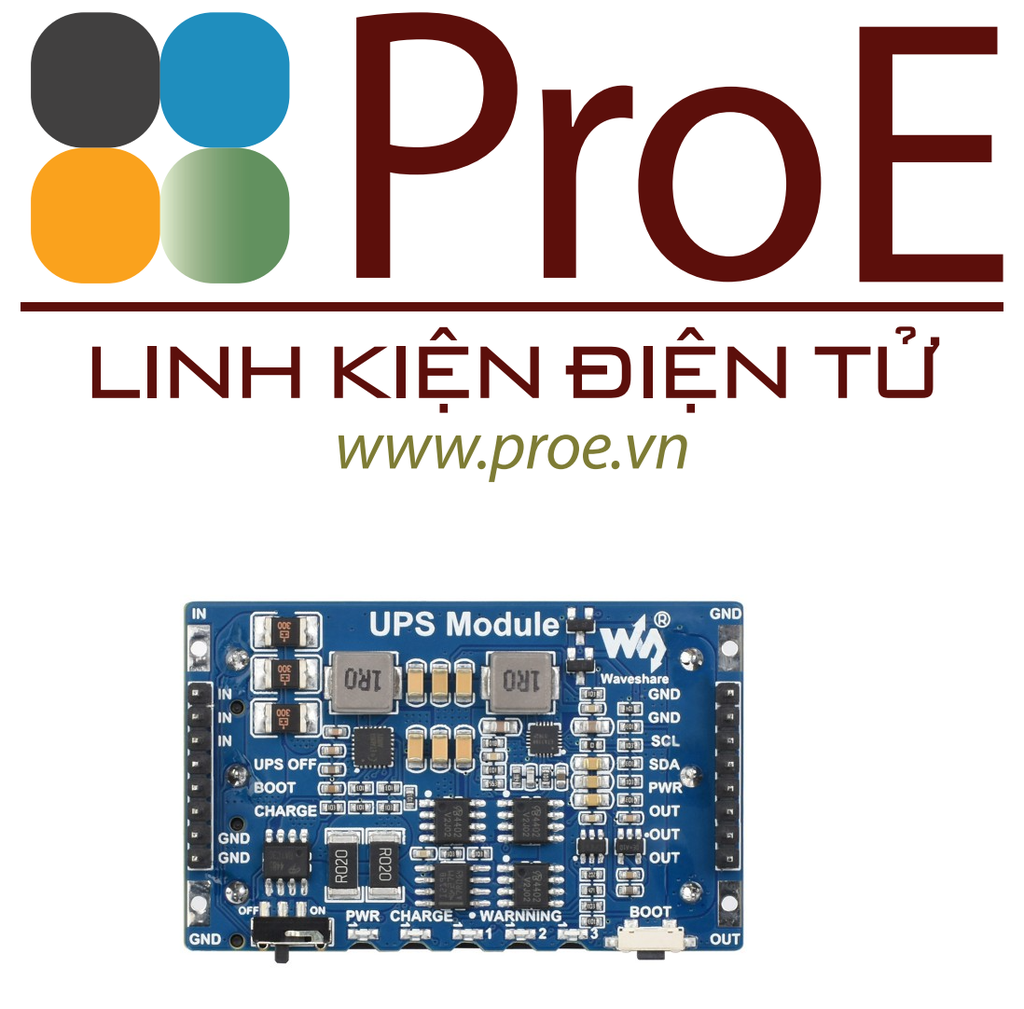

Uninterruptible Power

It is able to charge the batteries and provide power output at the same time from external power supply
Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble

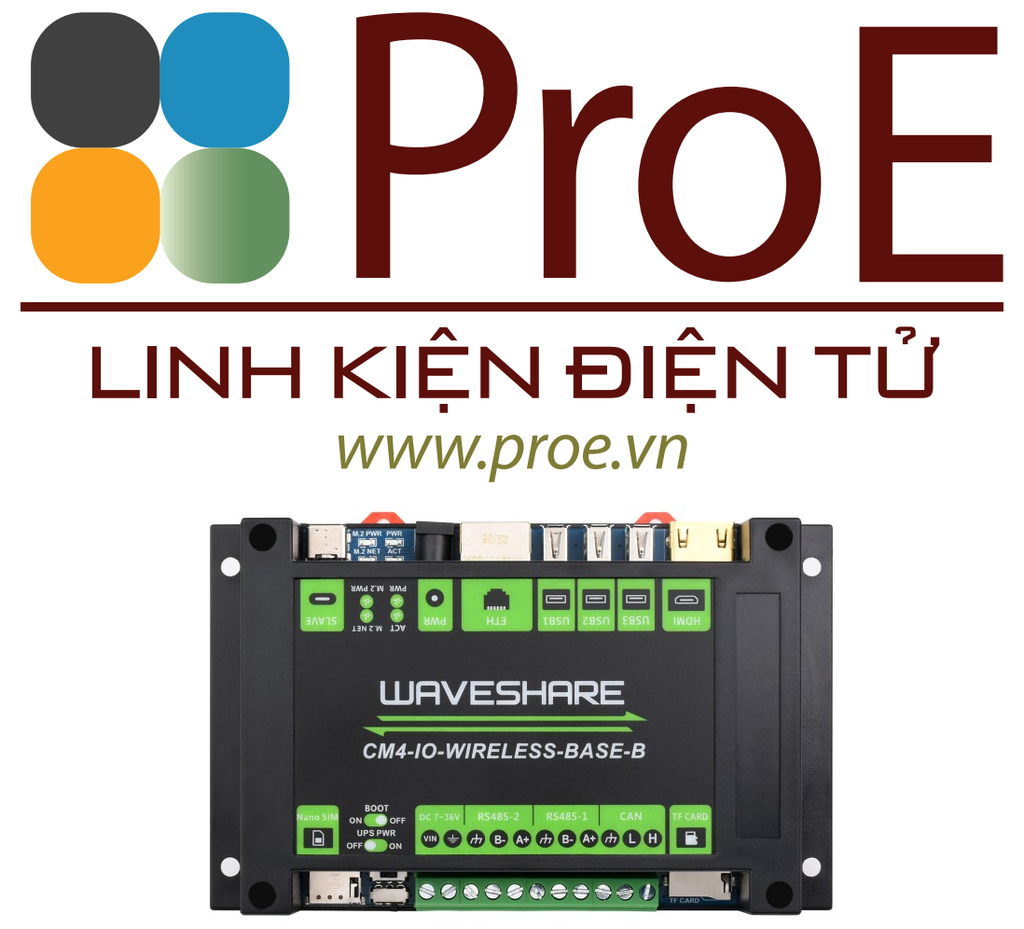

Rail-Mount Support

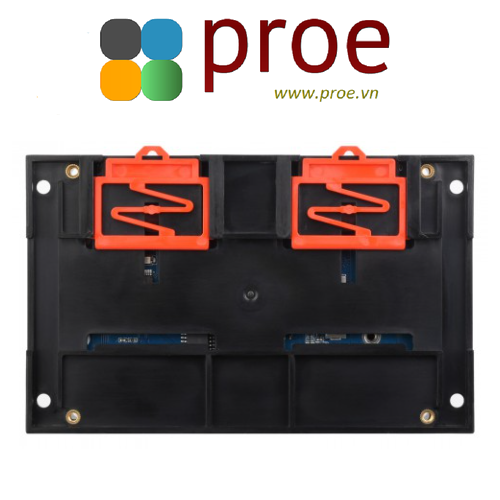

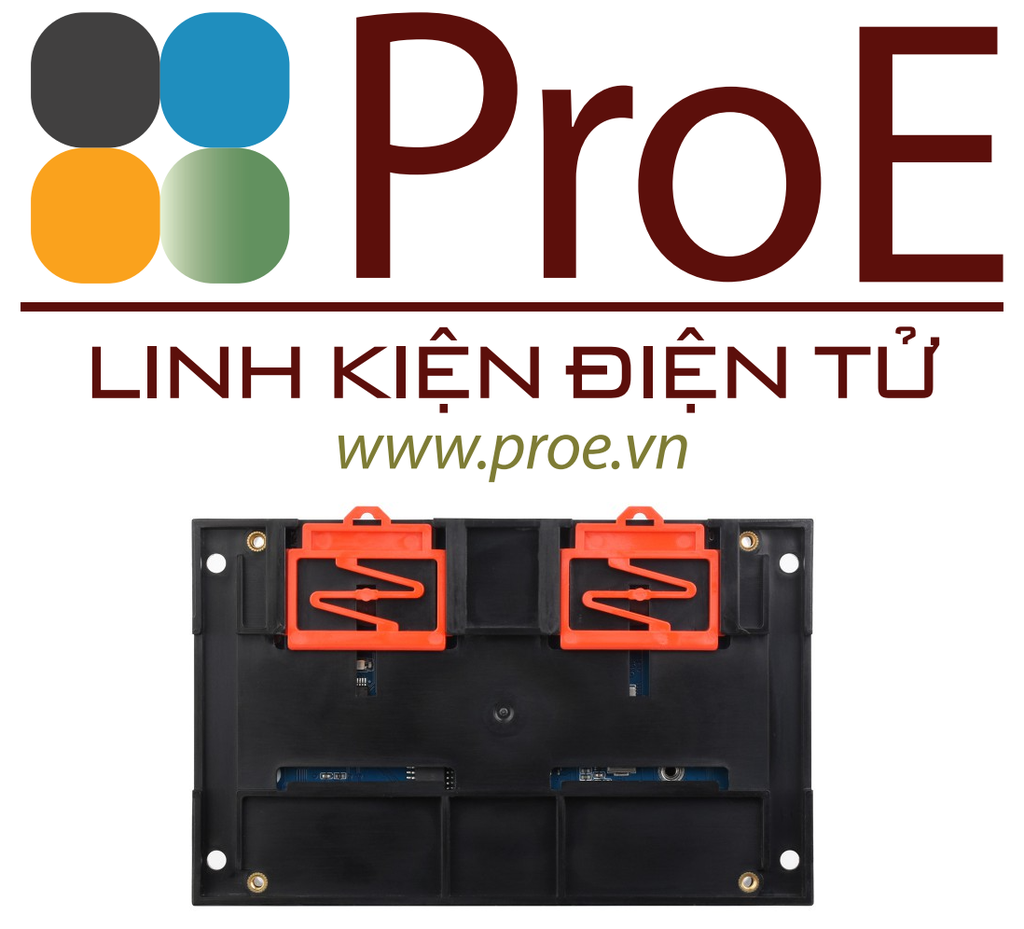

Rail-Mount ABS Protection Case, Easy To Install, Safer Operation

Application Example

Suitable For IoT Gateway, 4G/5G Router, IoT Data Acquisition And Monitoring, Industrial PLC, Or Other Industrial Applications. Onboard UPS Module, Keeps The System Running After Disconnecting The Power Cable

for reference only, CM4, display and camera are NOT included.

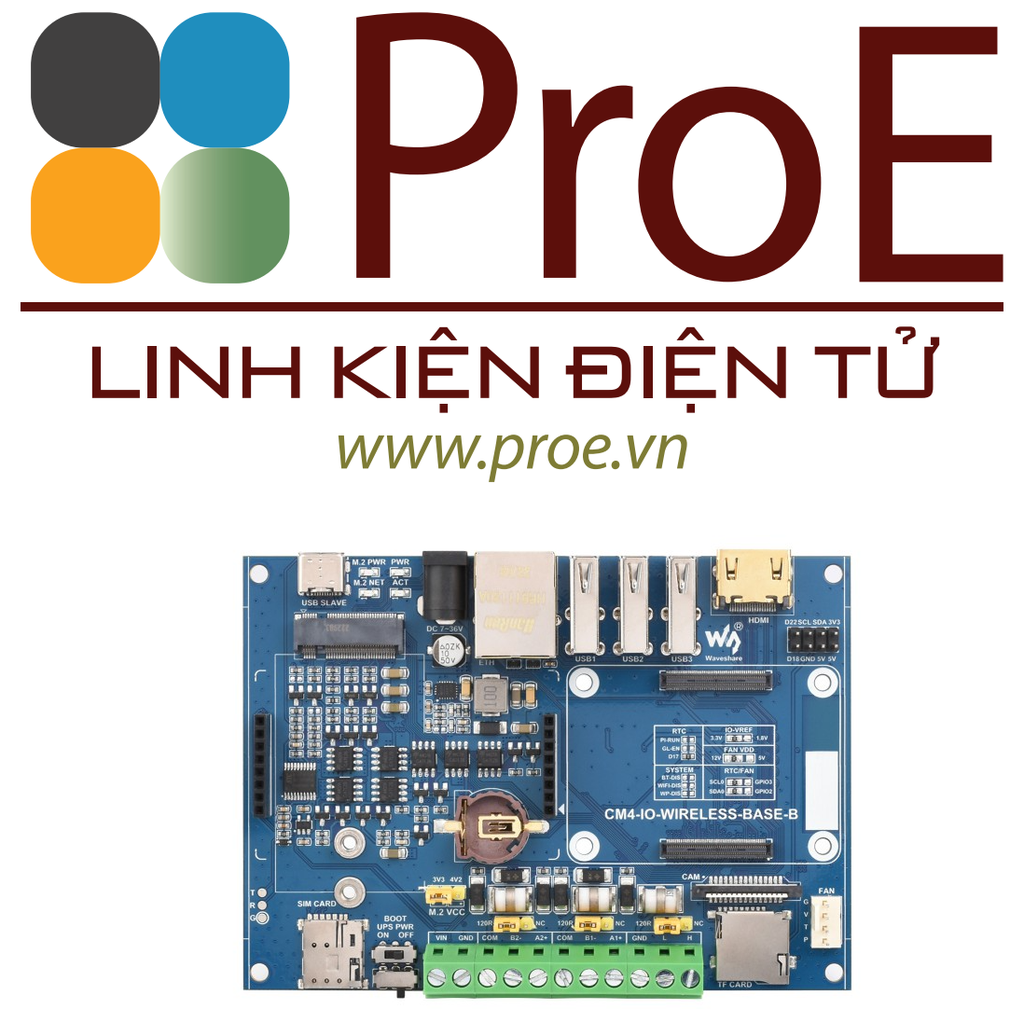

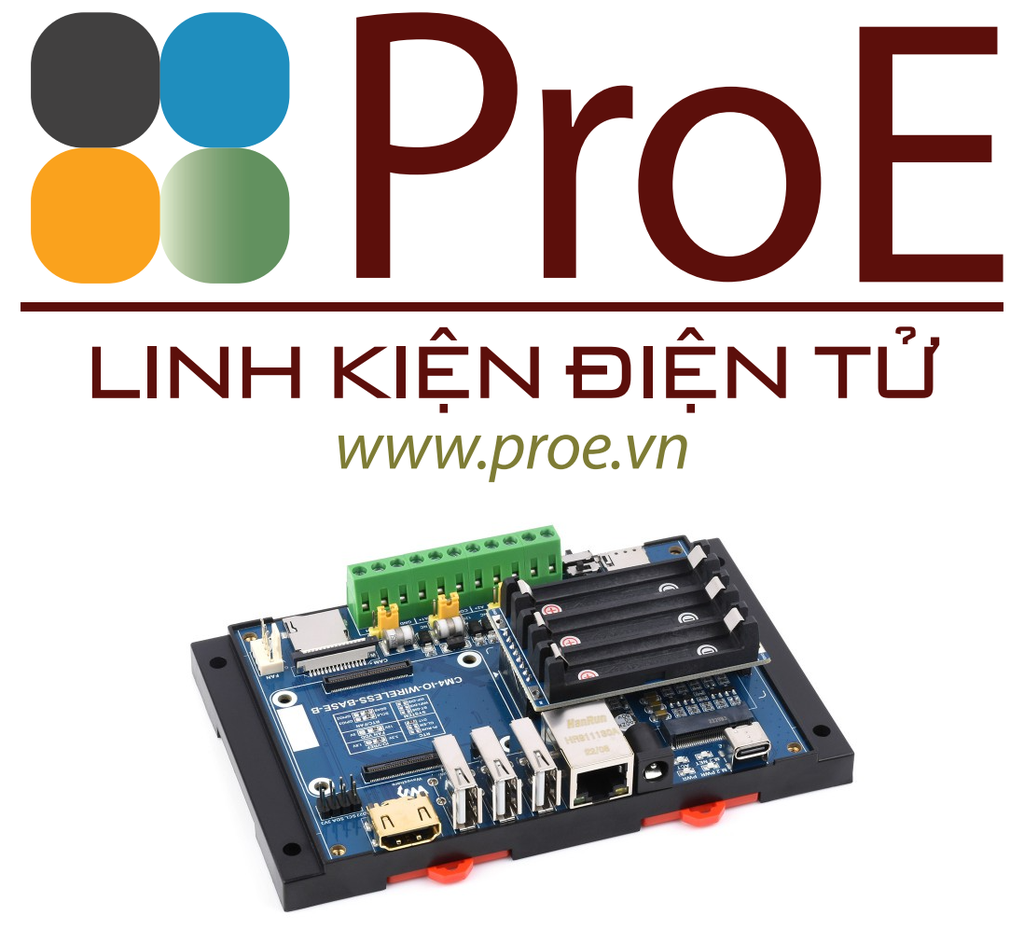

What's On Board

1. CM4 socket
   suitable for all variants of Compute Module 4
2. HDMI connector
   supports 4K 30fps output
3. USB 2.0 ports
   3x USB 2.0, for connecting sorts of USB devices
4. RJ45 Gigabit Ethernet
   10/100/1000M compatible
5. DC power supply
   7 ~ 36V DC input
6. CM4 status indicator
   PWR: Raspberry Pi power indicator
   ACT: Raspberry Pi operating status indicator
7. 4G/5G module status indicator
   M.2 PWR: module enable indicator
   M.2 NET: module operating status indicator
8. PWR & USB
   5V DC power supply or USB programming port
9. M.2 B KEY
   supports 4G/5G modules with M.2 B KEY connector, or other communication modules using USB channel
10. Nano-SIM card slot
    supports standard Nano-SIM card for 5G/4G/3G/2G communication
11. BOOT selection
    ON: CM4 will be booted from USB-C interface
    OFF: CM4 will be booted from eMMC or TF card
12. UPS module ON/OFF
    ON: CM4 and the base board will be powered by UPS module
    OFF: Turn off the UPS power supply to CM4 and base board
13. DC power supply
    7 ~ 36V DC input
14. Dual non-isolated RS485
    2x RS485, with 600W lightningproof, anti-surge, and 15KV ESD protection (reserved 120R optional balancing resistor jumper)

15. Non-isolated CAN
    ESD protection and transient spike voltage protection (reserved 120R optional balancing resistor jumper)
16. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)
17. FAN header
    for connecting cooling fan, allows speed adjustment and measurement
18. CAM
    MIPI CSI camera port, 15Pin 1mm pitch
19. RTC battery holder
    supports CR1220 button cell
20. M.2 VCC selection
    select 3.3V or 4.2V power supply
21. RTC interruption configuration
    PI-RUN: CM4 will reboot on RTC interruption
    GL-EN: CM4 power down on RTC interruption
    D17: D17 pin is triggered on RTC interruption (default)
22. IO-VREF selection
    set the CM4 IO logic level as 3.3V (default) or 1.8V
23. FAN power supply selection
    select 12V (default) or 5V power to drive the fan
24. System function configuration
    BT_DIS: Bluetooth disabled, for CM4 with antenna variant ONLY
    WiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLY
    WP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or SD card
25. RTC/FAN I2C bus selection
    SDA0/SCL0: I2C-10 is shared with CSI/DSI (default)
    GPIO3/2: I2C-1 is shared with GPIO header
26. Partial GPIO header
    including 1x I2C, 2x GPIO pins, and power supply
27. UPS Module Mini header

Product Show

Outline Dimensions
