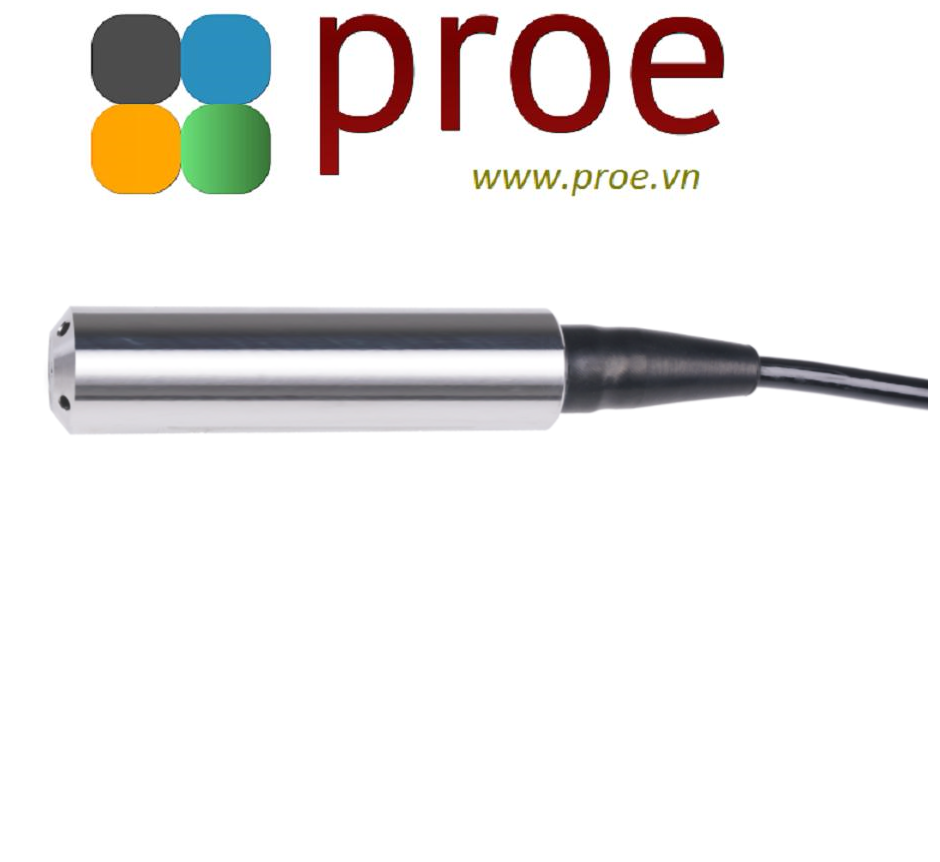

Industrial Liquid Level Sensor MODBUS RS485 Aviation Connector
- Mã sản phẩm: 101990860
- Nhà sản xuất: DFRobot
- Website hỗ trợ: https://www.proe.vn
4.950.000₫
PRODUCT DETAILS
Note
Please email sensecap[at]seeed[dot]cc to request any technical support for this product.
Features
- Strong anti-interference and long-term stability
- Anti-corrosion material, excellent anti-corrosion performance, and durable
- Anti-blocking design, easy to clean
- Modbus-RTU RS485 protocol, it can be used with a display device, PLC, inverter, recorder, and other instruments
- The shell is made of stainless steel and durable, and with waterproof cable, safe to use
Description
The liquid level sensor measures the height of the liquid and converting it to the Modbus-RTU protocol. It works with a data logger or other devices that support the RS485 Modbus-RTU protocol.
The liquid level sensor has a built-in high-performance and highly sensitive silicon piezoresistive core. The internal chip converts the sensor's millivolt signal into a standard protocol which can be connected to a computer, control instrument, or PLC.
It's small-size, lightweight, and easy to install. It has a stainless steel sealing structure that can work in a corrosive environment. The sensor has high anti-vibration and anti-impact performance. It can be widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC, and other applications.
Applications
- Reservoir detection
- Pool pump station
- River monitoring
- Marine monitoring
- Lake monitoring
- Sewage treatment
- Deep well level monitoring
- Tank level monitoring
Application Scenarios
This industrial liquid level sensor can be used in many application scenarios such as pool depth level monitoring, river water level monitoring, marine monitoring, dam and lake water level monitoring, reservoir level monitoring, wastewater level monitoring for sewage treatment, well level monitoring, and liquid level monitoring in tanks, etc.
Specifications
| Measurement Range | 0 ~ 5 meters |
| Cable Length | 5.3 meters |
| Output Signal | RS485 Modbus-RTU Protocol |
| Accuracy | ± 0.25%F.S |
| Zero Temperature Drift | ± 0.03%F.S/℃ |
| Sensitivity Temperature Drift | ± 0.03%F.S/℃ |
| Long-term Stability | ≤0.2%F.S/year |
| Response Time | 5ms( (≤90%F.S) |
| Measurement Liquid | Slight corrosive liquid (water, edible oil, etc.) |
| Power Supply | 11-30V DC |
| Overload Capacity | 200%F.S |
| Compensation Temperature | -10℃ ~ +70℃ |
| Medium Temperature | -40℃ ~ +80℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Material |
304 stainless steel shell, 316L stainless steel core, special rubber-insulated cable. |
| IP Rating | IP68 |
| Device Weight | 670g |
| Certifications | CE, FCC, RoHS |
Technical Details
Wiring Diagram
Dimensions
ECCN/HTS
| HSCODE | 9026900090 |
| UPC |
