JETSON-TX2-NX-DEV-KIT-US

PACKAGE CONTENT

Weight: 0.541 kg

1. Waveshare TX2 NX development kit:
   Jetson TX2 NX Module
   JETSON-IO-BASE-B
   Cooling Fan

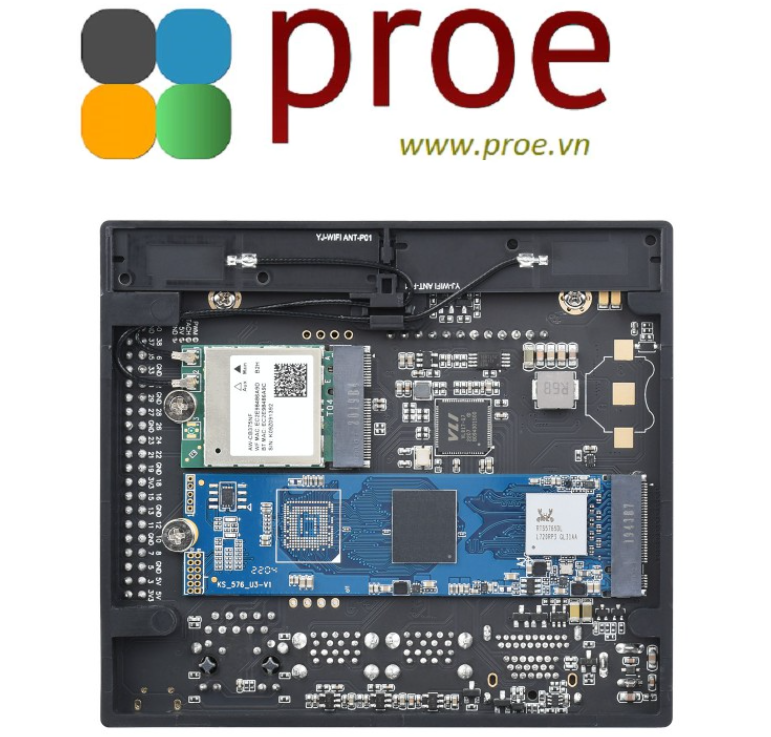

2. 128GB NVMe SSD
3. Wireless network card
4. OPTIONS Power adapter

1

2

3

4

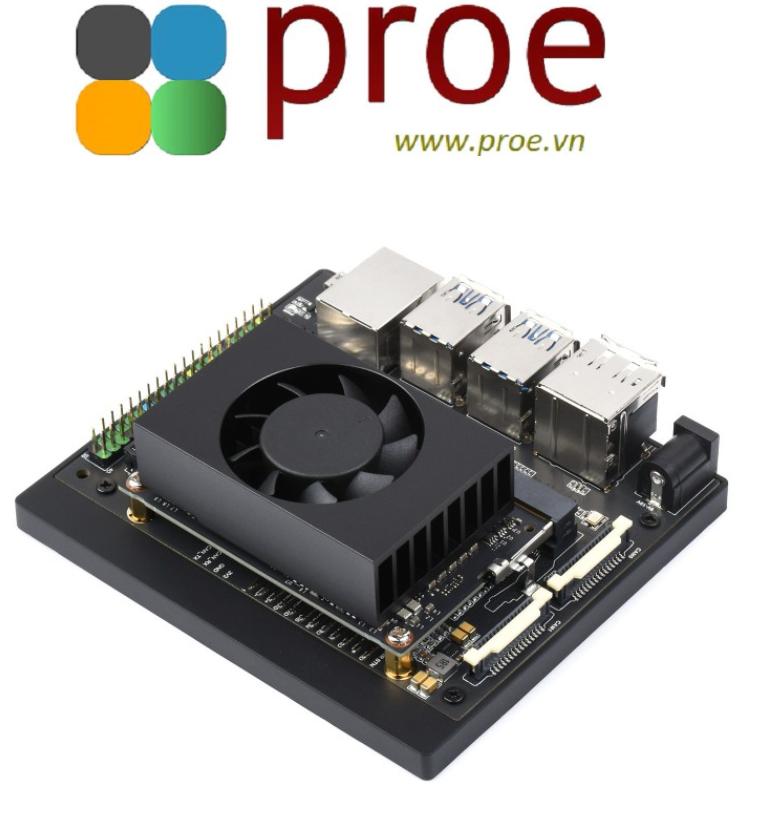

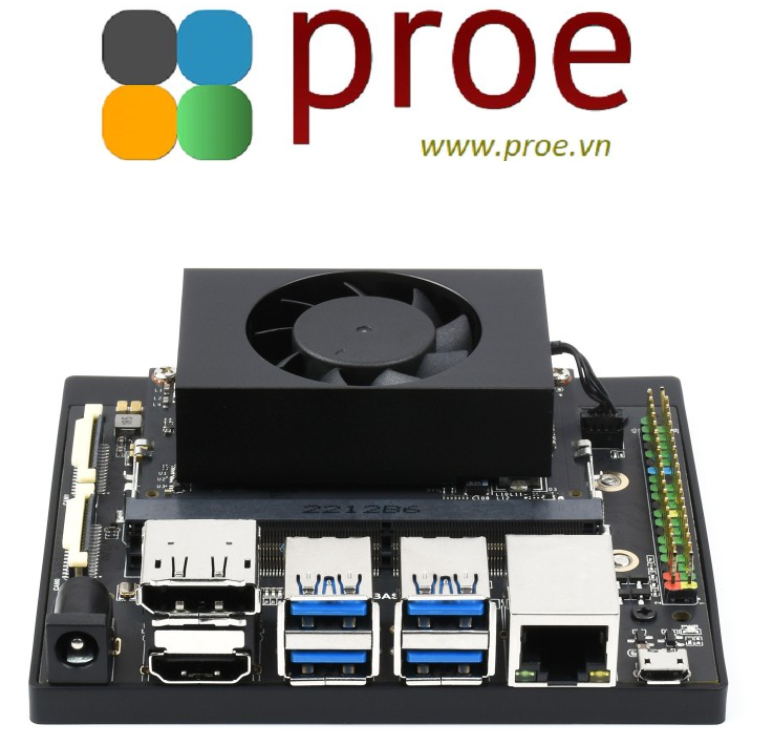

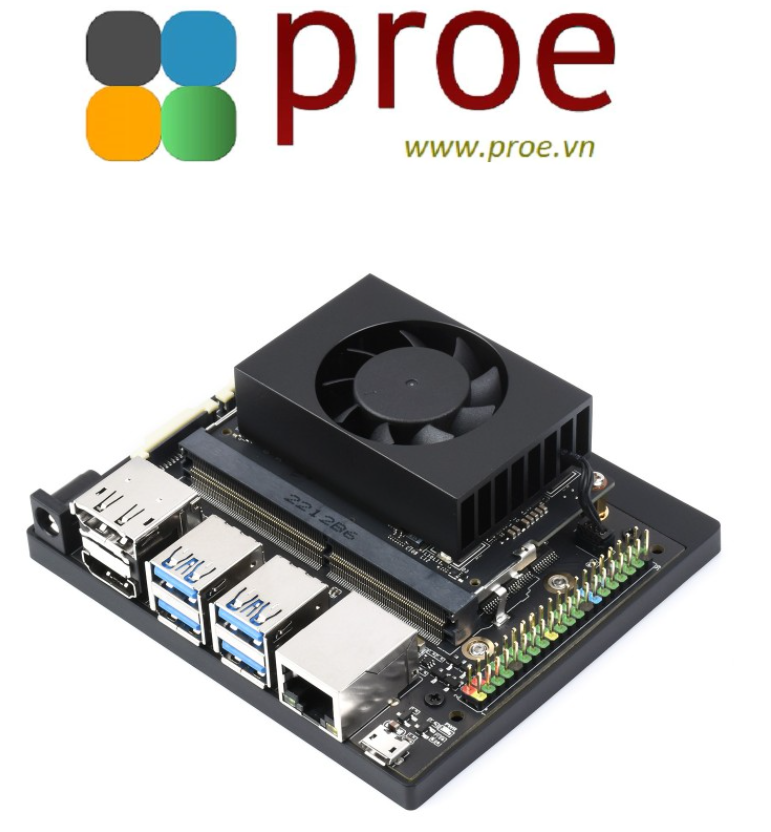

Waveshare Jetson TX2 NX Development Kit, Deep Learning And Edge Computing

Jetson TX2 NX Development Kit

Delivers The Next Step In AI Performance For Embedded & Edge Computing

Based On Jetson TX2 NX Module

NVIDIA Jetson TX2 NX delivers the next step in AI performance for entry-level embedded and edge products. It provides 2.5X the performance of Jetson Nano, integrating NVIDIA Pascal architecture with 256 NVIDIA CUDA cores and the AI performance reaches up to 1.33 TFLOPs.

This kit includes a TX2 NX Module with onboard 16GB eMMC, does not support Micro SD card.

Comes With Extra Free Accessories

Dedicated Cooling Fan For Powerful
Heat Dissipation

Adopts NVIDIA classic cooling fan appearance, aluminum alloy enclosure, speed up to 5500RPM. Powerful heat dissipation, no worry about the drop in AI performance due to heat dissipation problems.

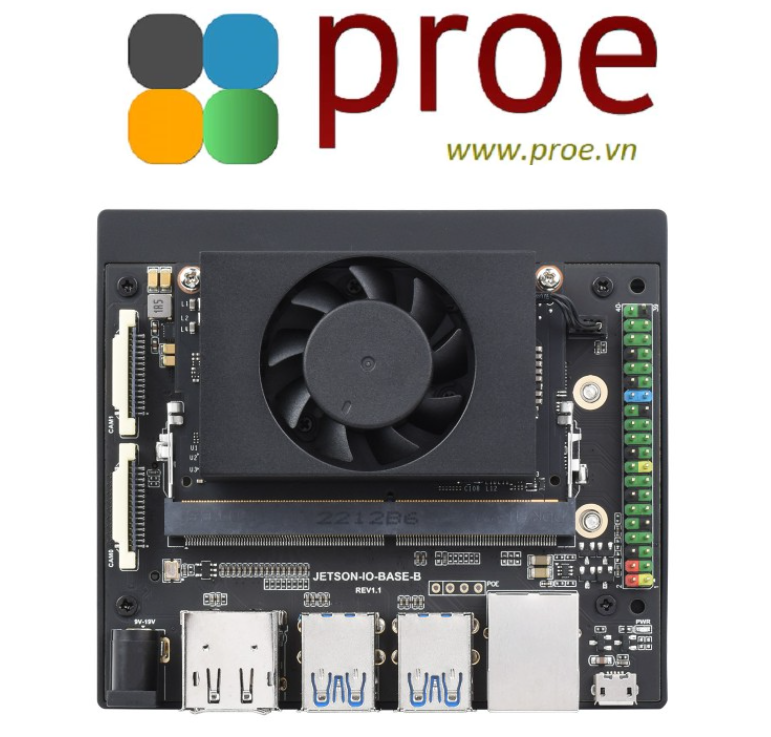

High-Quality Carrier Board For
Better Performance

High-quality carrier board to match the strong performance of the TX2 NX Module. Waveshare is widely praised for the board durability and manufacturing quality. We optimize each part of the board with good workmanship and materials.

Waveshare Jetson Series
Product Comparison

Compact, Powerful Performance At The Edge

The NVIDIA Jetson TX2 series modules deliver exceptional speed and power efficiency for embedded AI computing devices, delivering 1.33 TFLOPS of AI performance. Equipped with NVIDIA Pascal GPUs, up to 4 GB memory, 51.2 GB/s memory bandwidth, and a variety of standard hardware interfaces.

With Cloud-Native Support

Jetson TX2 NX modules cloud-native support lets developers build and deploy high-quality, software-defined features on embedded and edge devices. Pre-trained AI models from NVIDIA NGC and the TAO Toolkit give you a faster path to trained and optimized AI networks, while containerized deployment to Jetson devices allows flexible and seamless updates.

Ideal For Critical Embedded Applications

Jetson TX2 NX is perfect for high-performance AI systems like commercial robots, medical instruments, smart cameras, high-resolution sensors, automated optical inspection, smart factories, and other IoT embedded systems.

Image Recognition

Object Recognition

Semantic Segmentation

Pose Estimation

Monocular Depth

Position Tracking

AI Computing Neural Networks SDK

Jetson Development Pack (JetPack) Is An On-Demand All-In-One Package That Bundles And Installs All Development Software Tools For The NVIDIA Jetson Embedded Platform.

Jetson TX2 NX Module Specification

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/JETSON-TX2-NX-DEV-KIT
