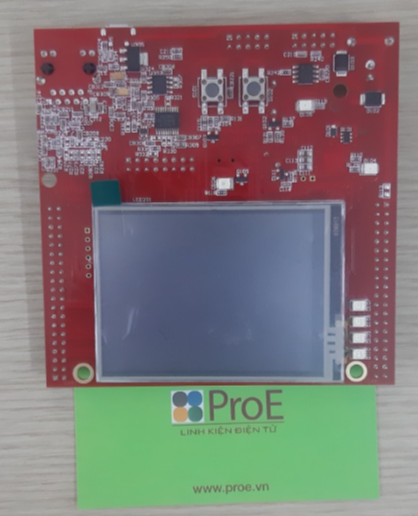

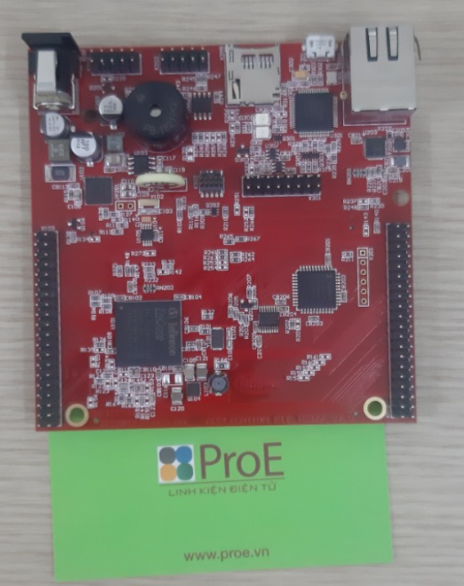

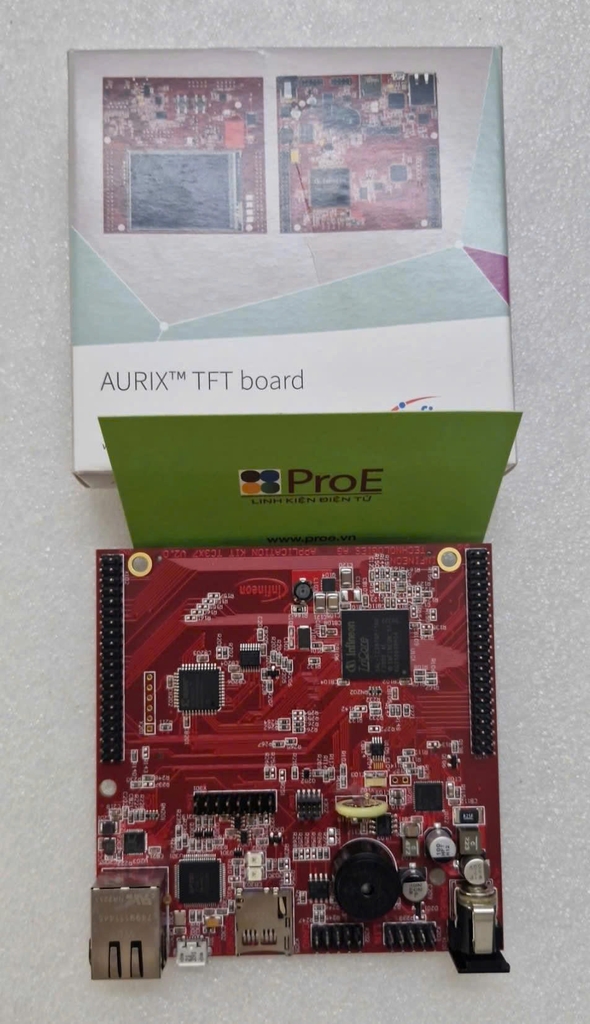

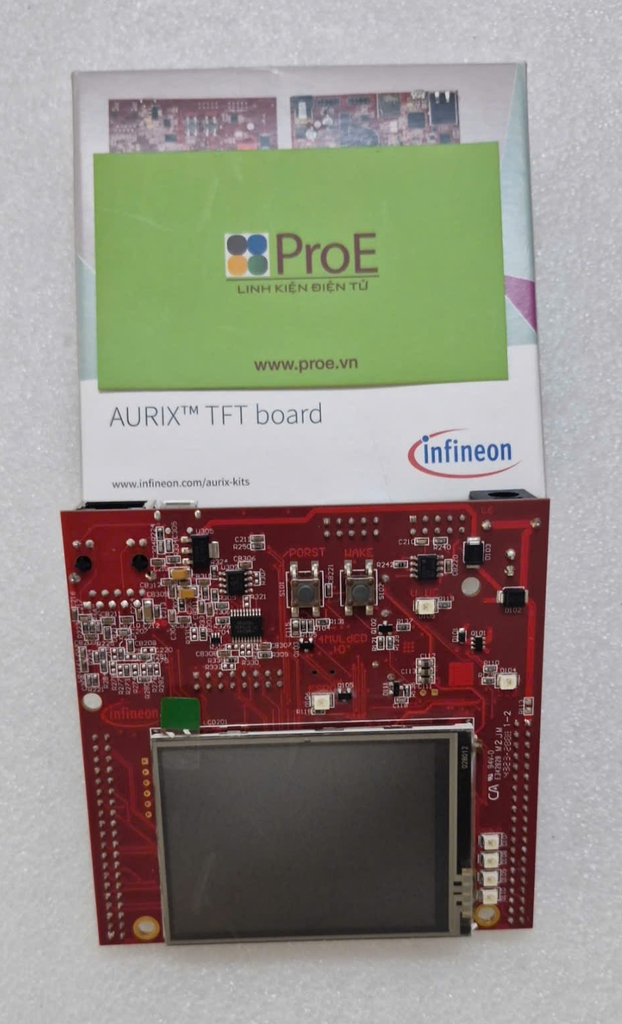

KITA2GTC3875VTFTTOBO1

Summary of Features

• Infineon’s TC387 AURIX™ in LFBGA-292 Package
• LCD XGA Display 320x240
• SD card slot (mini SD)
• High Speed CAN Transceiver (CAN FD capable)
• USB to UART bridge
• Ethernet Gigabit PHY
• LIN Transceiver
• Crystal 20MHz (default) or External Clock
• USB miniWiggler JDS for easy debugging
• 4 Low Power Status LEDs
• RTC with alarm
• Acoustic beeper –
• 100mm x 100mm

Connectors :

The Application Kit TC387 offers a wide variety of connectors:

• Standard power connector
• Micro USB connector for ASC Interface (ASC0) and miniWiggler
• RJ45 connector for Ethernet (if Gigabit Ethernet supported by assembled CPU)
• 16-pin header for JTAG interface (OCDS)
• 10-pin header for DAP
• 10pin (2x5) Header for LIN Transceiver (LIN)
• 10pin (2x5) Header for CAN High Speed Transceiver (CAN0)
• two 40-pin connectors with I/O signals
• mini SD card slot

Components :

• Infineon’s Multi Voltage Safety Micro Processor Supply TLF35584QV
• LED to validate power supply (5V or 3,3Volt)
• LED indicating RESET (ESR0) active state
• LED indicating activ miniWiggler JDS
• LED switched via DAS software
• Infineon’s High Speed CAN Transceiver TLE 9251V (CAN FD capable)
• Infineon’s LIN-Transceiver TLE 7259-3GE
• QSPI Real-Time Clock/Calendar with SRAM and unique MAC Id MCP79511 (if CPU not support I2C)
• I2C Real-Time Clock/Calendar with SRAM and unique MAC Id MCP79411 (if CPU support I2C)
• USB to UART bridge FT2232HL (FTDI)
• Integrated 10/100/1000M Ethernet Precision Transceiver RTL8211FI-CG (Realtek)
• Touch screen controller ADS7843
• 4 general purpose LEDs
• Reset switch
• Wake switch
• Xilinx CPLD XC9572XL
