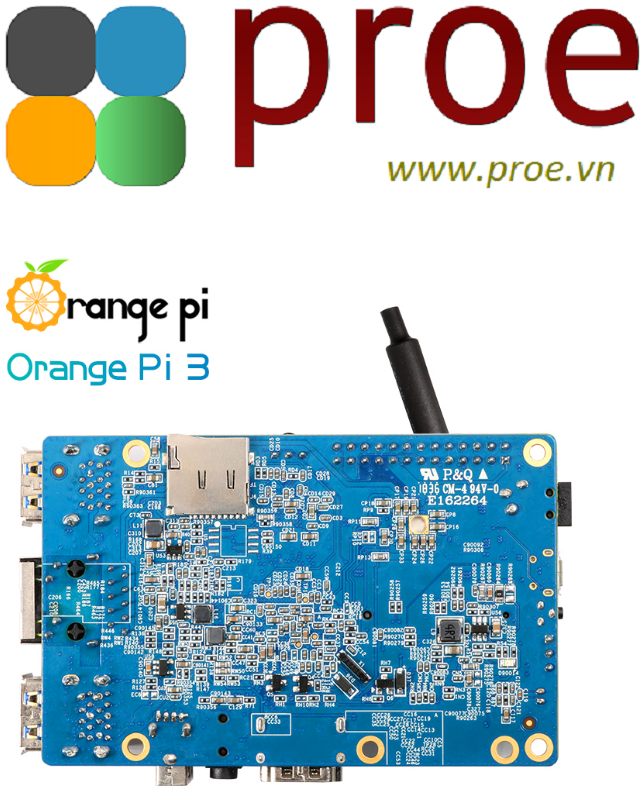

Orange Pi 3, 2GB RAM

Hardware specification

CPU

H6 Quad-core 64-bit 1.8GHZ ARM Cortex™-A53

GPU

• High-performance multi-core GPU Mali T720
• OpenGL ES3.1/3.0/2.0/1.1
• Microsoft DirectX 11 FL9_3
• ASTC(Adaptive Scalable Texture Compression)
• Floating point operation greater than 70 GFLOPS

Memory+Onboard Storage

Four Types:
1GB LPDDR3 (shared with GPU)+EMMC(Default Empty)
2GB LPDDR3(shared with GPU)+EMMC(Default Empty)
1GB LPDDR3 (shared with GPU)+8GB EMMC Flash
2GB LPDDR3(shared with GPU)+8GB EMMC Flash

WIFI+BT

AP6256, IEEE 802.11 a/b/g/n/ac, BT5.0

Onboard Network

10/100M/1000M , ethernet RJ45

Network Chip

RTL8211

Audio Input

MIC

Audio Output

HDMI 2.0a and 3.5 mm AV Jack

Video Output

HDMI 2.0a and CVBS

Video Decoding

• H265/HEVC Main/Main10 profile@Level5.2 High-tier ;4K@60fps, up to 6Kx4K@30fps
• H264/AVC BP/MP/HP@level5.1, MVC, 4K@30fps
• VP9，Profile 0/2, 4K@30fps
• AVS+/AVS JIZHUN profile@level 6.0, 1080P@60fps

PCIE

• Supports RC mode
• Supports x1 Gen2(5.0Gbps) lane
• Complies with PCI Express Base 2.0 Specification

Power Source

DC input，MicroUSB (OTG)

PMU

AXP805

USB 2.0 Ports

1*USB 2.0 Host, 1*USB OTG 2.0

USB 3.0 Ports

4*USB 3.0 Host

Low-level peripherals

26 Pin

GPIO(1x3) pin

UART, ground.

LED

Power LED、Status LED and USB3.0 LED

IR

YES

Key

Power(SW4)

Supported OS

Android7.0, Ubuntu, Debian

Interface definition

Product size

90mm*64mm

Weight

75g
