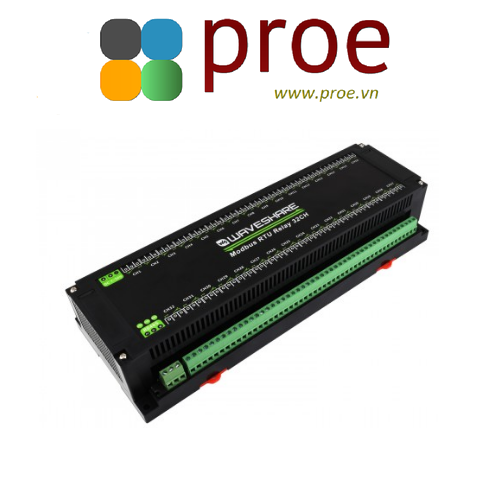

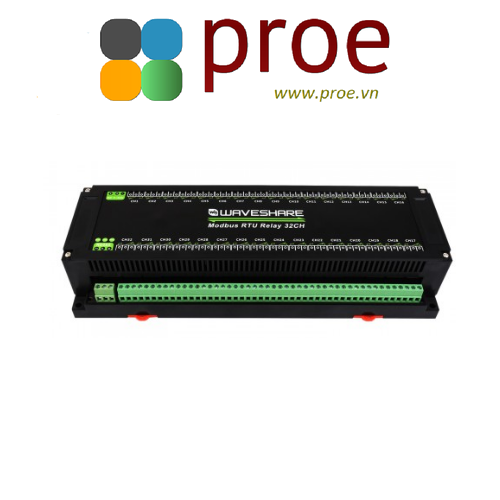

Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits

Wiki: www.waveshare.com/wiki/Modbus_RTU_Relay_32CH

PACKAGE CONTENT

Weight: 0.767 kg

The power supply adapter is NOT included by default, it is recommended to purchase 12V power supply if you need it.

1. Modbus RTU Relay 32CH x1

DESCRIPTION

Modbus RTU 32-Ch Relay Module, RS485 Interface, With Multiple Isolation Protection Circuits, Industrial-Grade, Rail-Mount Case

RS485 32-Ch Relay Module

Modbus RTU Protocol, Multi Isolation Protection Circuits, Safe & Stable & Reliable

Features At A Glance

This product is an industrial 32-ch relay module controlled via RS485 bus, adopts Modbus RTU protocol, built-in protection circuits such as power supply isolation, ADI magnetical isolation, resettable fuse, and TVS diode, etc. It also comes with an ABS case.

The Modbus RTU 32-Ch Relay is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements.

• Configurable device address (1~255), multi devices can be cascaded on RS485 bus
• Features flash-on, flash-off function, it is possible to turn on the relay for a while and then close it automatically via the command
• Onboard voltage regulator chip, supports 7~36V wide voltage power supply
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody ADI magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
• Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
• Onboard dedicated relay driver chip, with built-in freewheeling diode protection, the driving ability is stronger and more stable
• Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
• High quality relay, contact rating: ≤10A 250VAC/30VDC
• Rail-mounted ABS case, easy to install, safe to use
• 3 LEDs for indicating the MCU status and signal transceiving status

Specifications

Onboard Multiple Isolation Protection Circuit

Multiple Protections, More Safe And Reliable

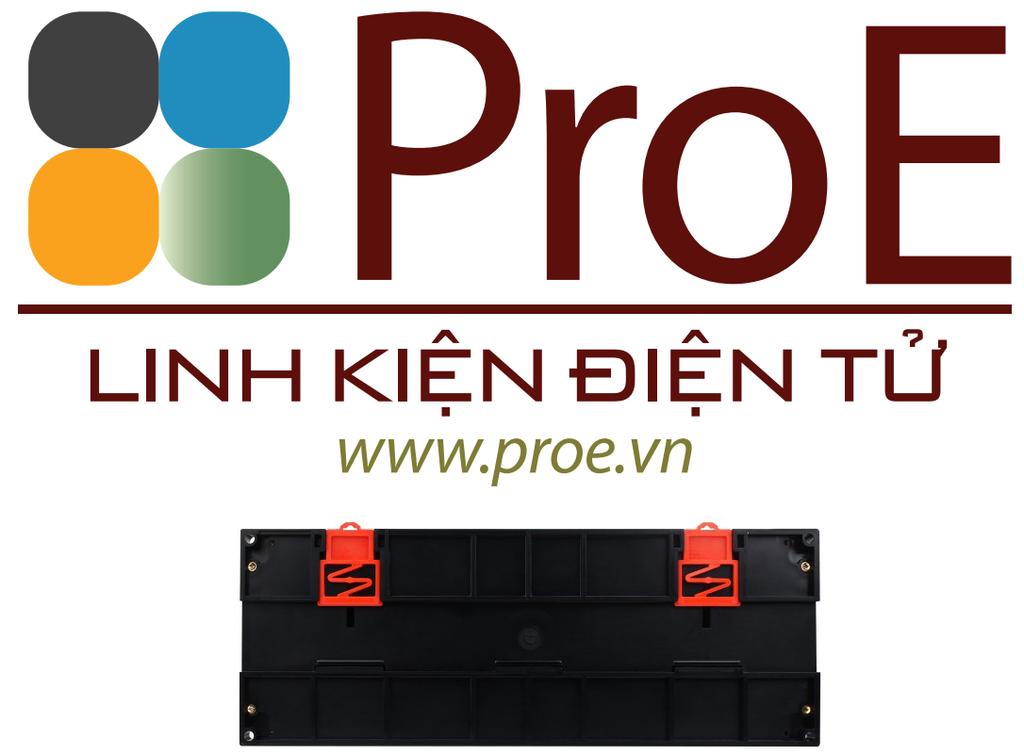

Rail-Mount Case Design

Rail-Mounted ABS Protective Enclosure, Easy To Install, Safe To Use

RS485 Communication

Configurable Device Address (1~255), Multi Devices Can Be Cascaded On RS485 Bus
In Case Of Many Devices Are Cascaded, Or The Communication Distance Is Quite Long,
It Is Necessary To Use RS485 Repeaters

* for reference only, the USB to RS485 is NOT included.

Relay Connection

Contact Rating Of The Onboard Relay Up To 10A 250VAC/30VDC
Directly Controlling 220VAC Home Appliances, Or Devices Below 30VDC

Applications

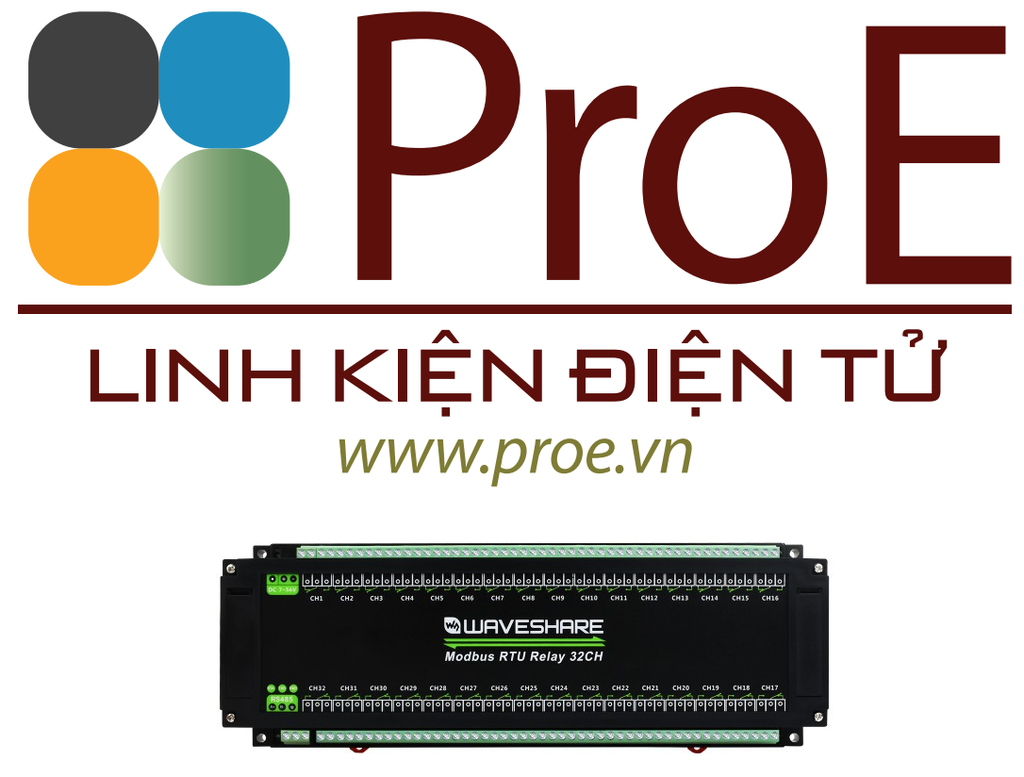

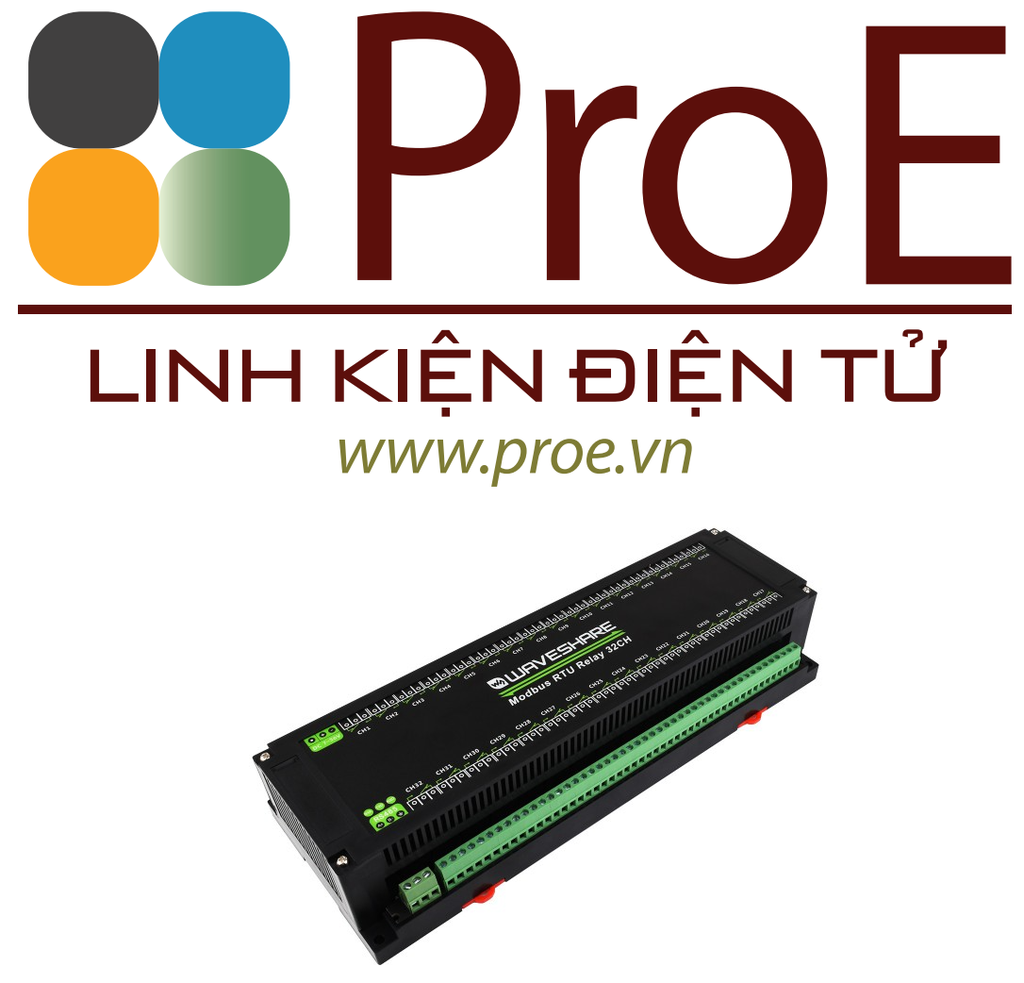

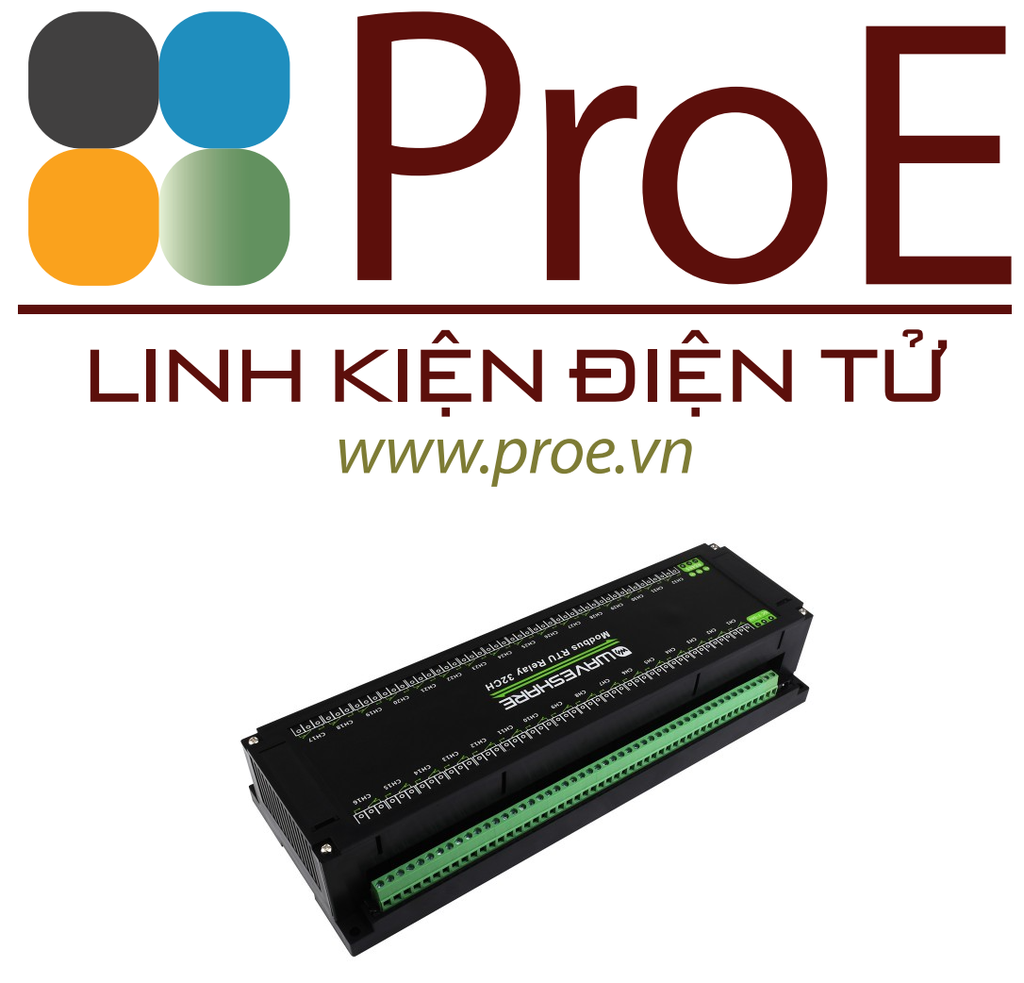

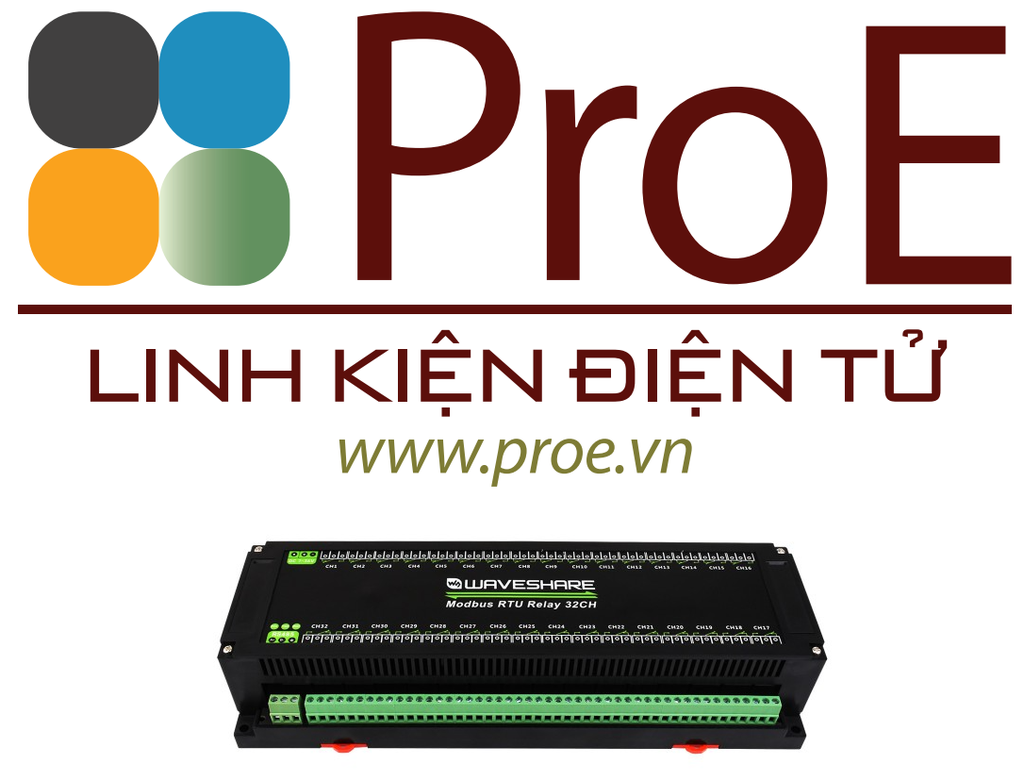

Product Show

Outline Dimensions
