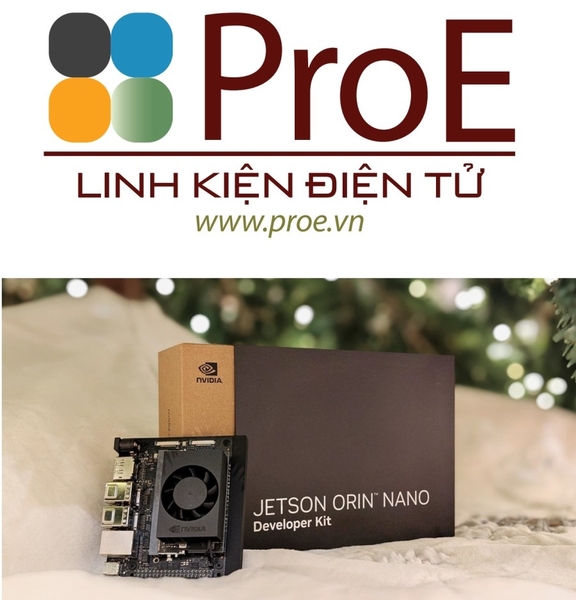

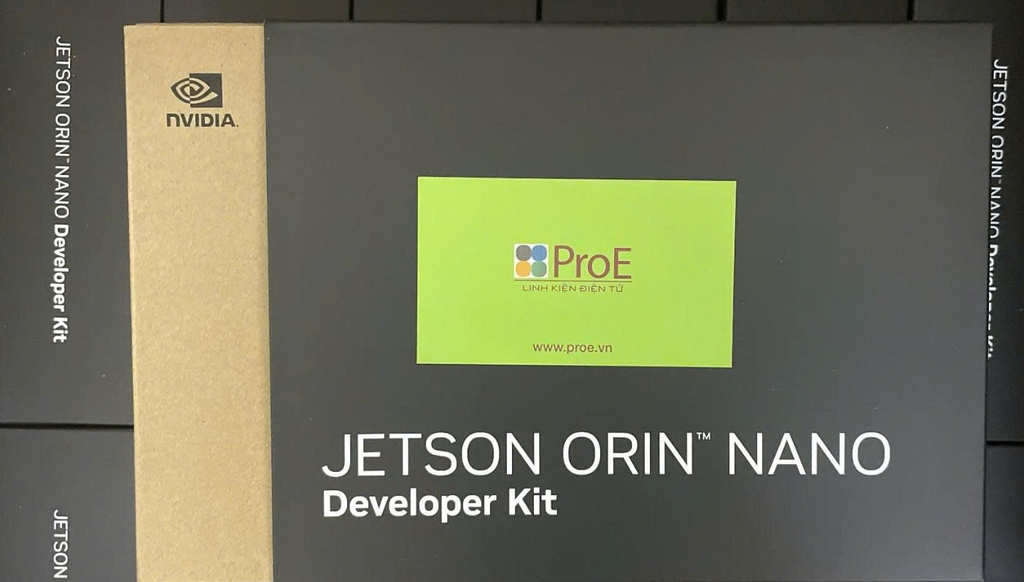

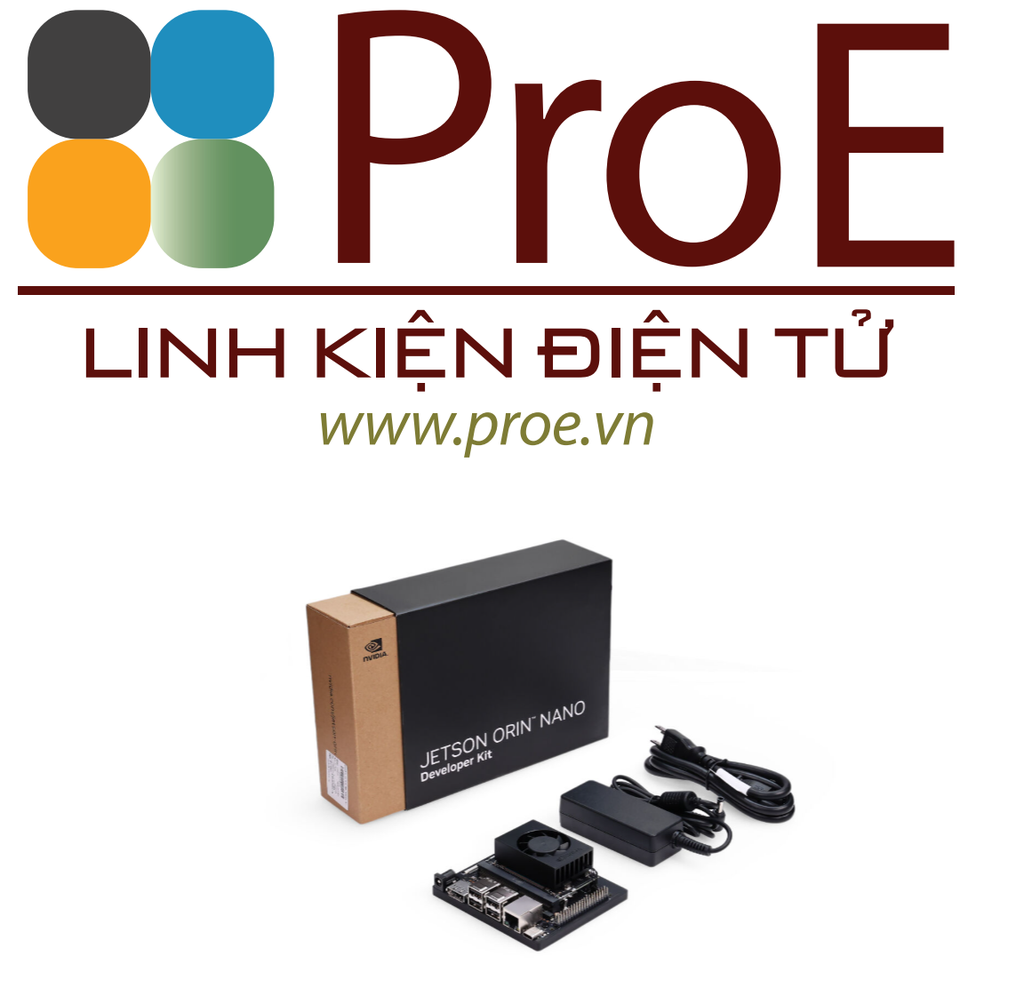

NVIDIA® Jetson Orin™ Nano Super Developer Kit

Jetson Orin Nano System on Module

AI Performance

Jetson Orin Nano 8GB with SD card slot on module - 67 TOPS

GPU

NVIDIA Ampere architecture with 1024 NVIDIA® CUDA® cores and

32 Tensor cores

CPU

6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3

Memory

8GB 128-bit LPDDR5 105 GB/s

Video Encoder

1080p30 supported by 1-2 CPU cores

Video Decoder

1x 4K60 (H.265) | 2x 4K30 (H.265) | 5x 1080p60 (H.265) | 11x 1080p30 (H.265)

Carrier Board

Storage

1x microSD slot (UHS-1 cards up to SDR104 mode)

Networking

Ethernet

1x Gigabit Ethernet (10/100/1000M)

M.2 KEY E

1x M.2 Key E(pre-installed 1x Wi-Fi/Bluetooth combo module);

PCIe (x1), USB 2.0, UART, I2S, and I2C

I/O

USB

4x Type A USB 3.2 Gen2

1x Type C for UFP

CSI Camera

2x MIPI CSI-2 (22pin)

Display

1x DP 1.2 (+MST) connector

Fan

1x 4 pin Fan Connector (5V PWM)

CAN

1x CAN

Multifunctional Port

1x 40-Pin Expansion header

1x 12-Pin Control and UART header

RTC

RTC 2-pin, supports CR1220 but not included

Power Supply

9V-19V DC

Mechanical (W x D x H)

100mm x 79mm x 21mm

Product Weight

0.176 kg

Warranty

1-year warranty for development use only
