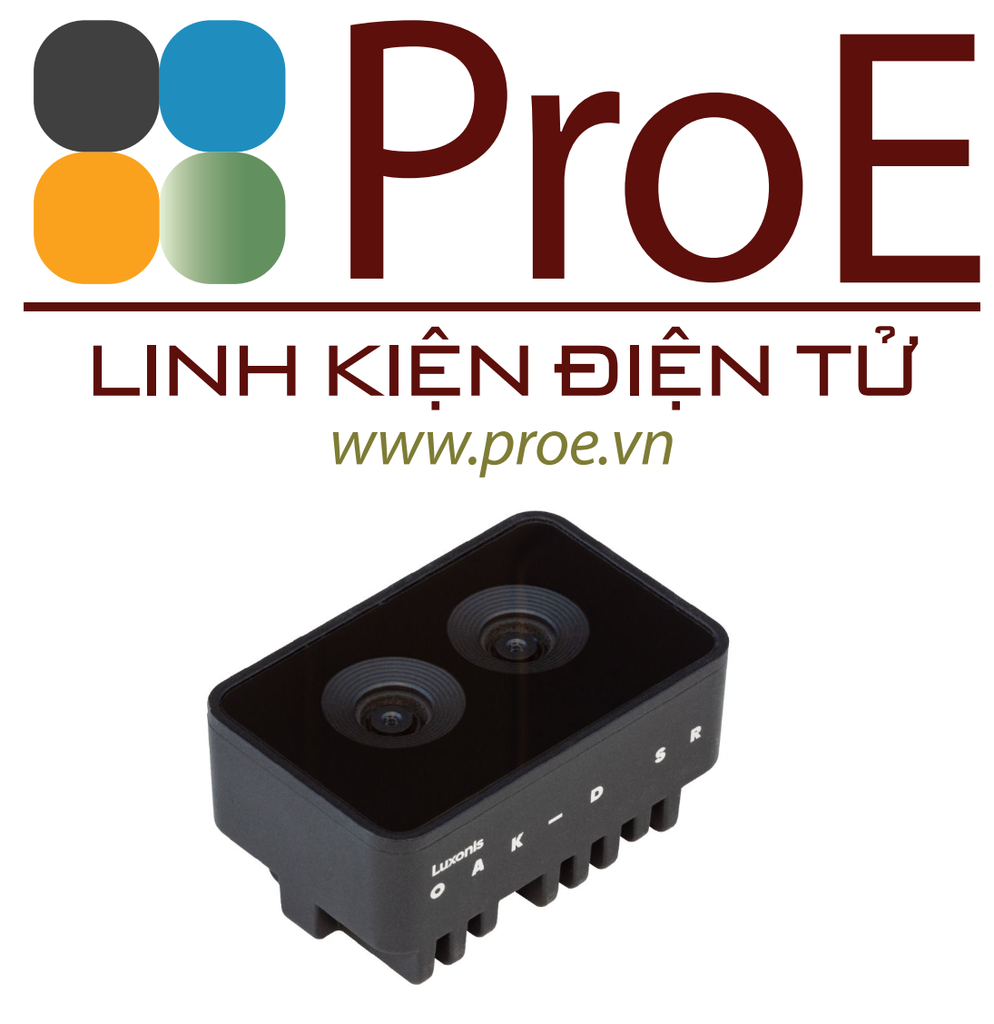

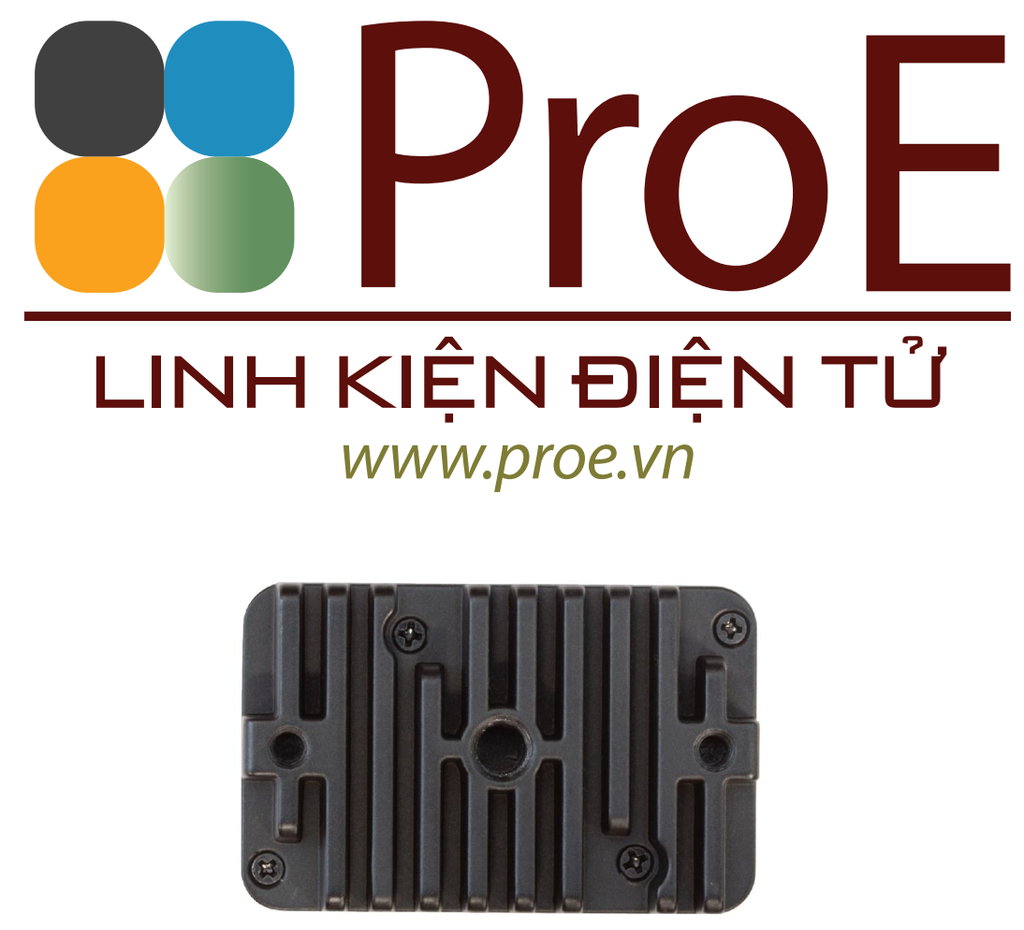

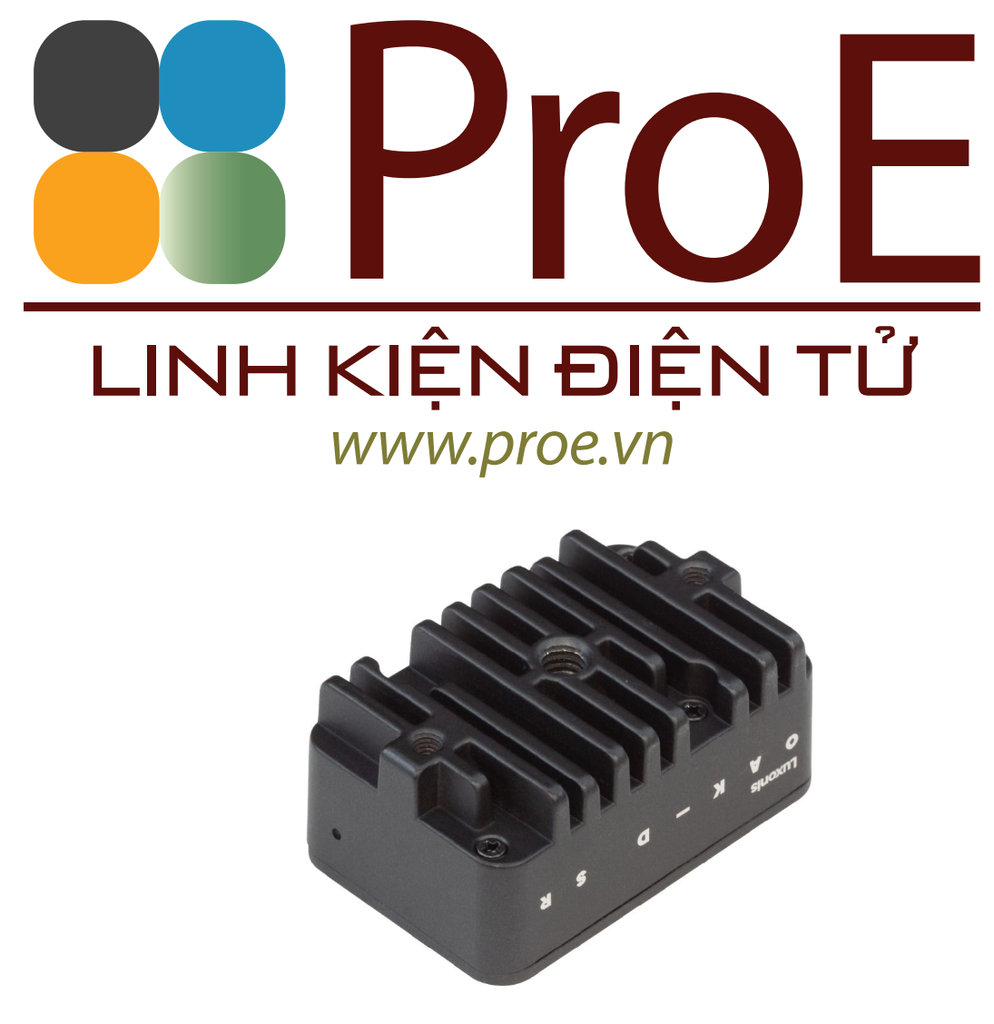

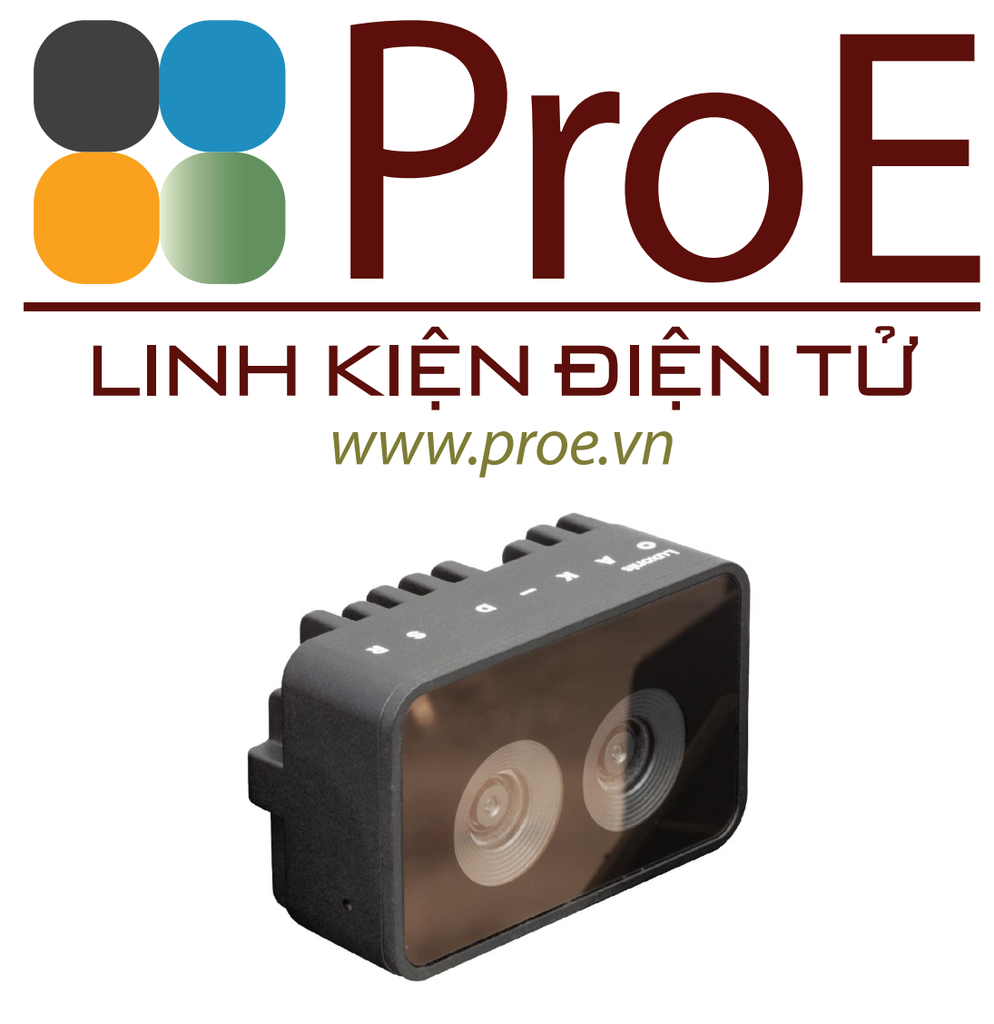

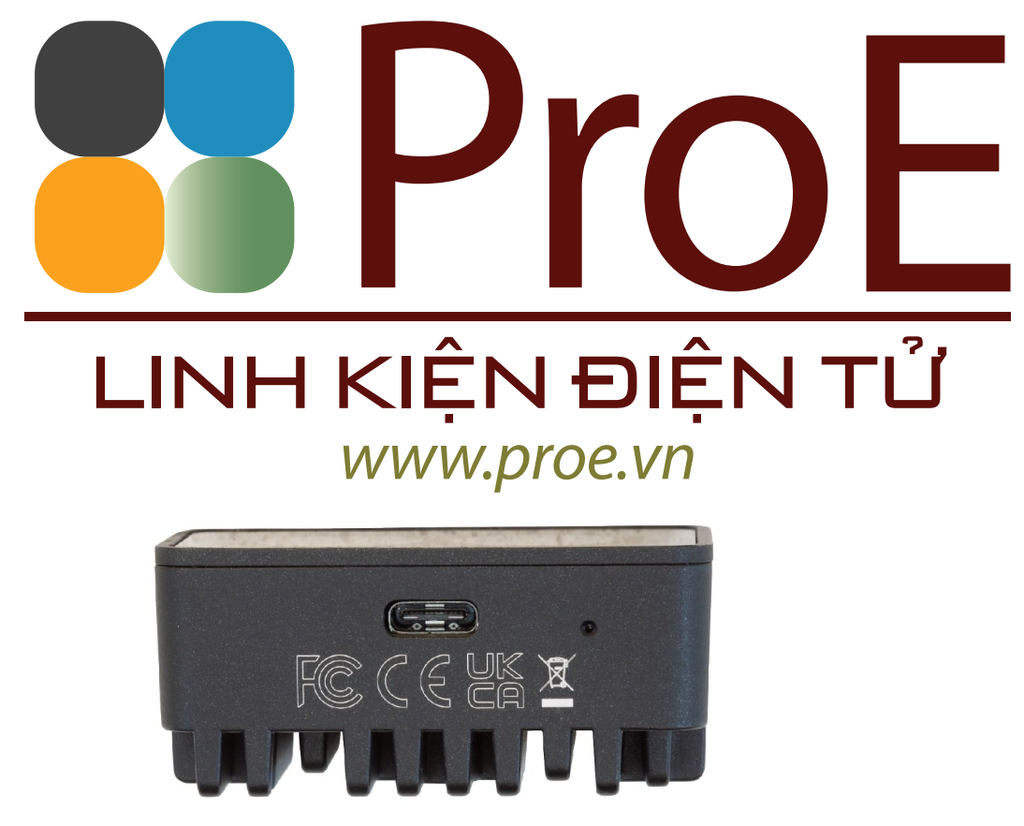

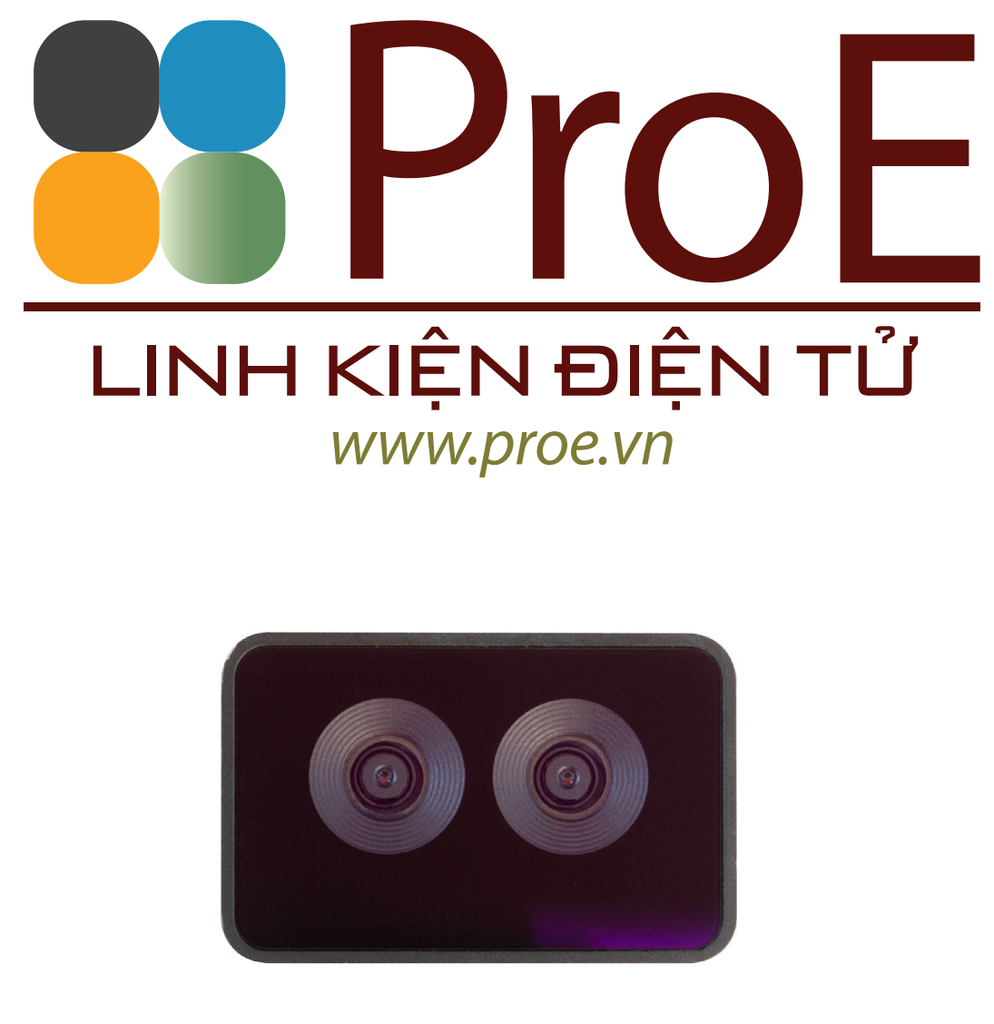

OAK-D SR

Overview

OAK-D-SR emphasizes improved short-range accuracy when compared to the standard OAK-D. To ensure the best accuracy, it's recommended to keep the depth measurement range of the OAK-D-SR between 30cm to 1m. It's perfect for applications that require close-in depth and detail, such as quality control or automated manufacturing, and will prove especially valuable for mounting on robots or picking arms. The OAK-D-SR leverages our OAK-SoM-Pro to make a compact overall design. The use of the SoM reduces the overall design's scale, making it easier to mount or fit in various robotic processes. The design is also open-sourced, allowing for all necessary modifications.

Features

• 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
• Run any AI model, even custom architectured/built ones (models need to be converted)
• Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
• Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
• Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
• BMI270 IMU, 6-axis sensor combining accelerometer and gyroscope
• Object tracking: 2D and 3D tracking with ObjectTracker node
• Dimension: 56x36x25.5 mm
• Weight: 72g

Specifications

Package Including

• OAK-D-SR
• Cable USB-CA-1m

Documentation

• Product Documentation
