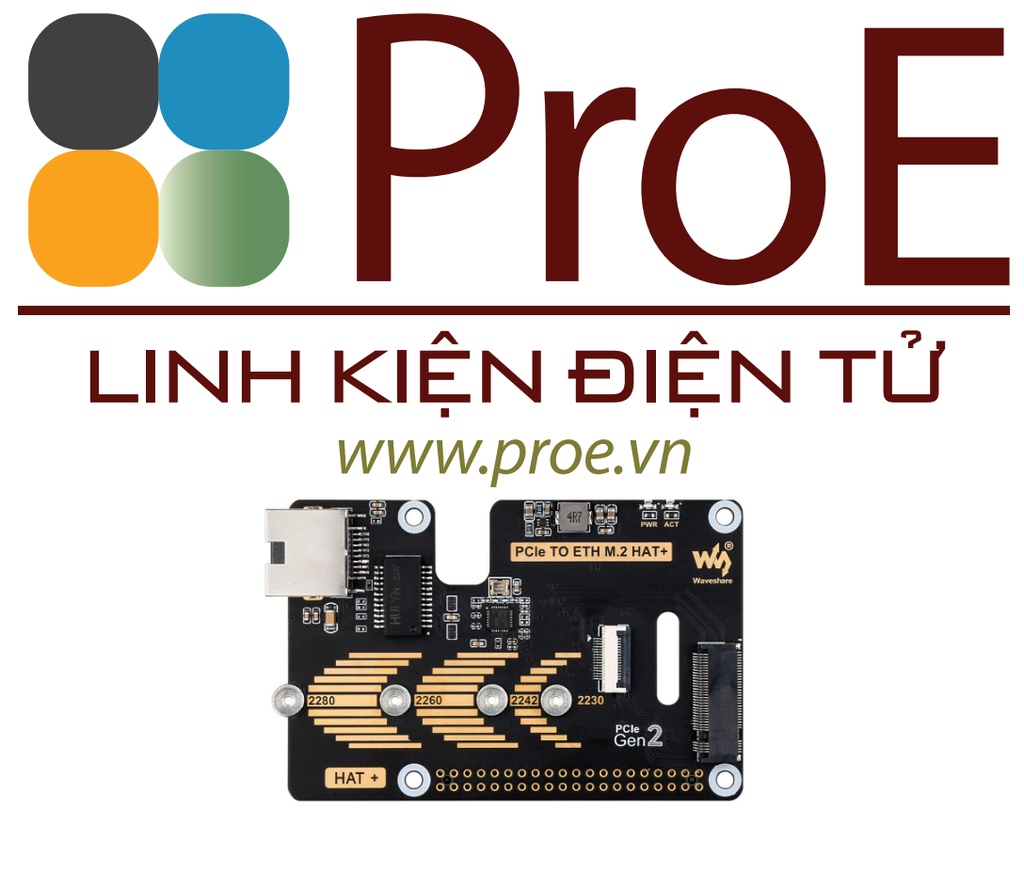

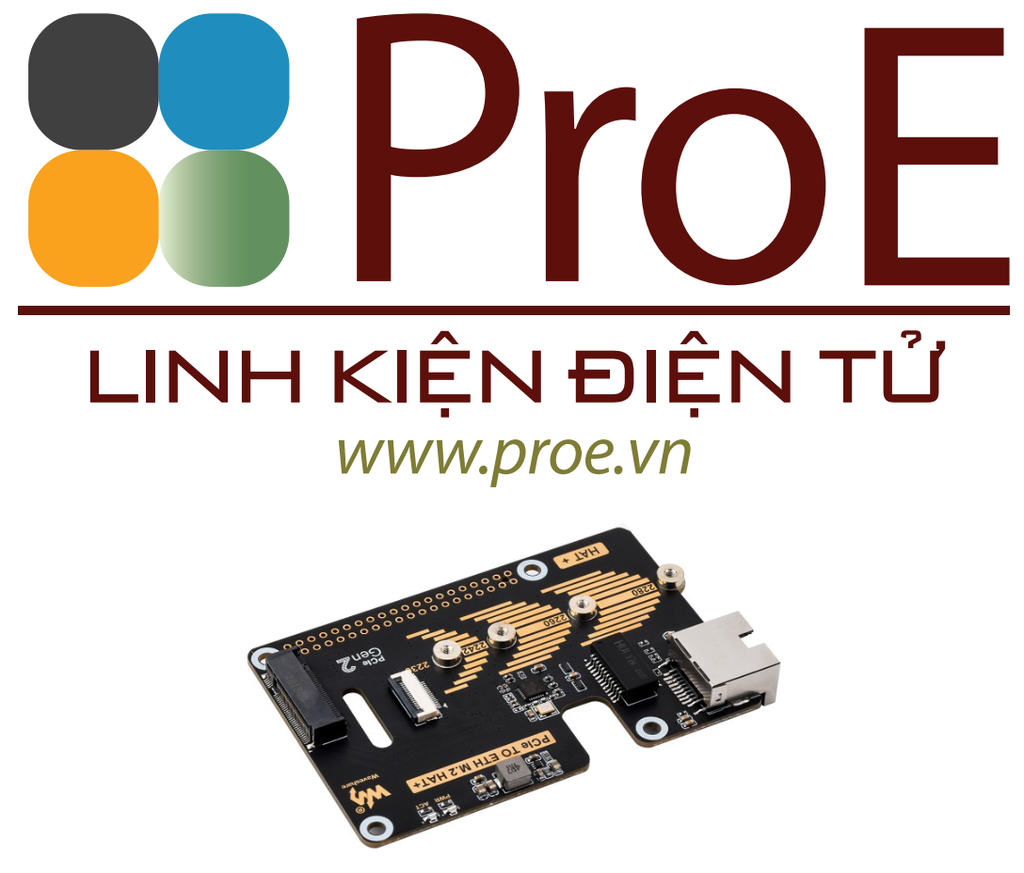

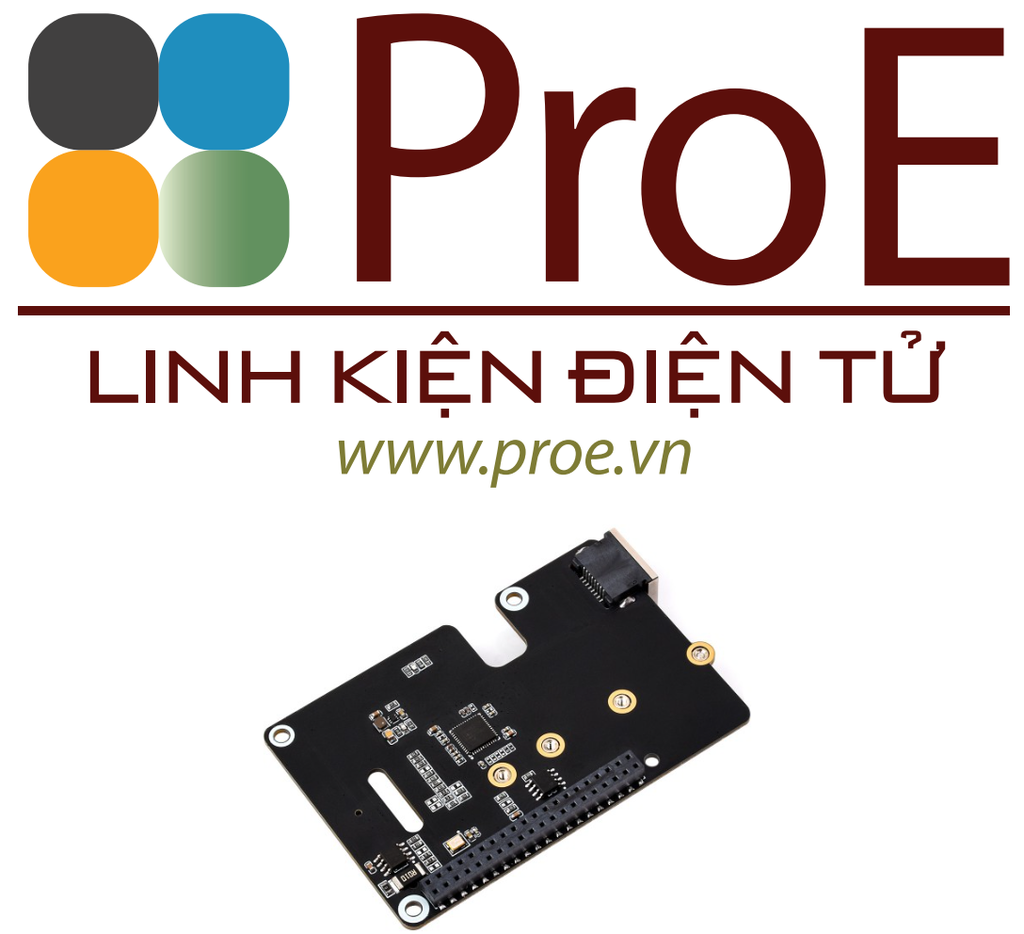

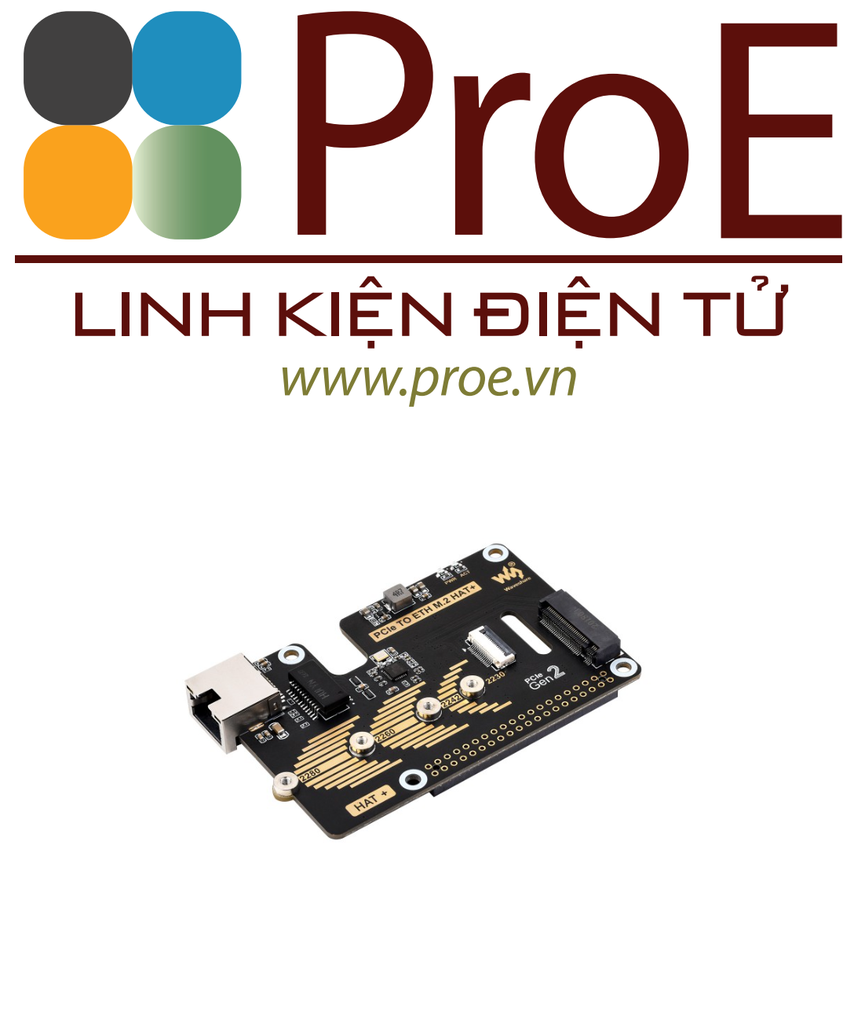

PCIe TO ETH M.2 HAT+

Package Content

Weight: 0.045 kg

1. PCIe TO ETH M.2 HAT+ x1
2. 2*20 Pin header x1
3. 16P-Cable-40mm x1
4. Screws pack x1
5. SSD mounting screw x1

PCIe To ETH And M.2 Adapter for Raspberry Pi 5, Compatible with 2280 / 2260 / 2242 / 2230 size NVMe Protocol M.2 SSD, 5Gbps Data Rate, High-speed Reading/Writing, Raspberry Pi 5 NVMe HAT

PCIe To ETH And M.2 Adapter

Designed for Raspberry Pi 5, driver-free, plug and play

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

NVMe Solid State Drives Support

Compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drives
Supports Gen2 standard, Supports Booting PI5 From Solid State Drive

NVMe Drive Slot Support

Note: Only supports the NVMe Protocol Solid State Drives.

Adopts Immersion Gold Process

Better appearance | Anti-oxidation | Anti-corrosion | Strong welding

Extends 1x Gigabit Ethernet port

Equipped with RTL8111H high-performance Gigabit ETH chip, adopts sinking design of network port, neat and beautiful

Improves reading/writing speed of your Pi

Faster reading/writing speed compared to the TF card slot of Raspberry Pi , greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive.

* for reference only, please refer to the Package Content for detailed part list

Onboard Dual LED Indicators

Easy to monitor the Working Status

Onboard Power Monitoring Chip And EEPROM

Real-time monitoring of Solid State Drive power status for More Stable operation

how to install

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/PCIe_TO_ETH_M.2_HAT+
