PCIe TO M.2 Board (E)

Package Content

Weight: 0.037 kg

1. PCIe TO M.2 Board (E) x1
2. MX1.25 2PIN cable x1
3. Thermal pad (3PCS) x1
4. Screws pack x1

1

2

3

4

PCIe To M.2 Adapter Board (E) for Raspberry Pi 5, With Cooling Fan, Compatible with 2242 / 2230 size NVMe Protocol M.2 SSD, 8Gbps Data Rate, High-speed Reading/Writing, Raspberry Pi 5 NVMe

PCIe TO M.2 Board (E)

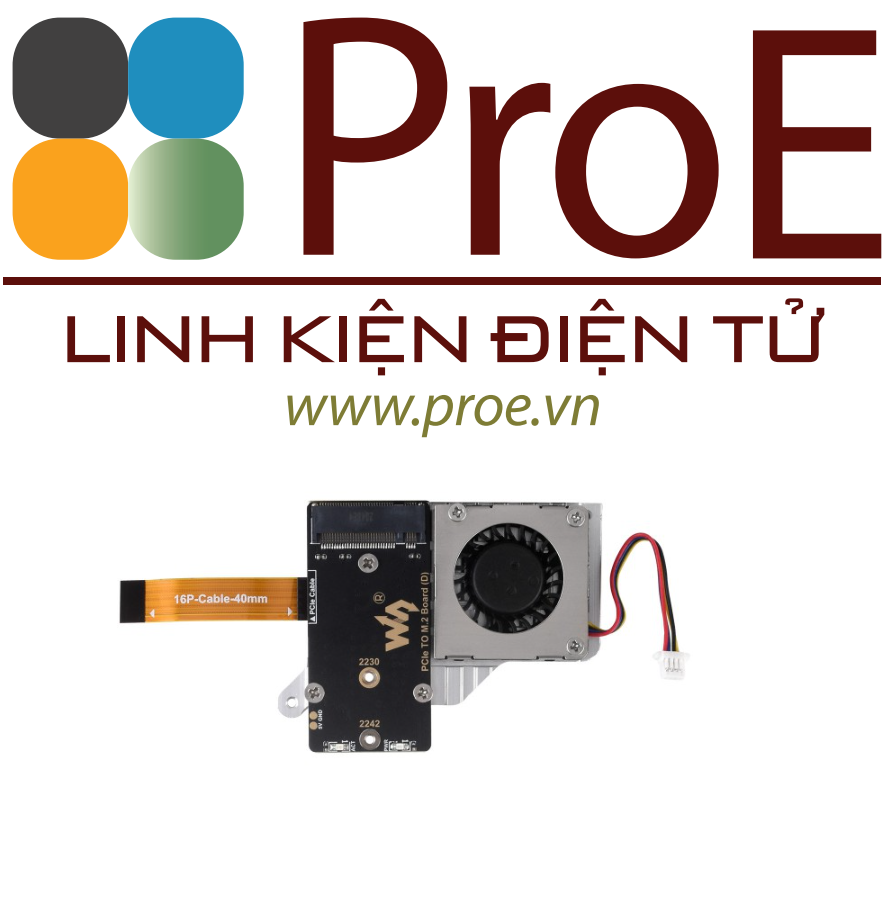

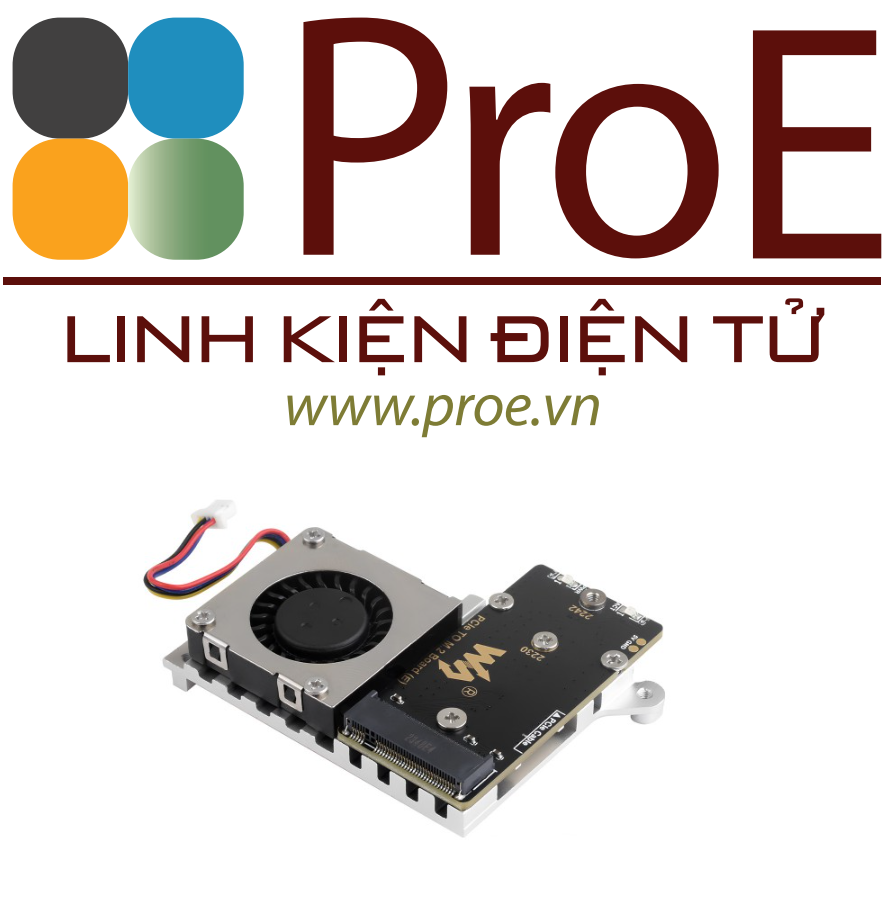

Compact Size, Cooling Fan All-in-One Design, Suitable for Raspberry Pi 5

Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, Improves Working Efficiency

Specifications

Improves reading/writing speed of your Pi

* for reference only, please refer to the Package Content for detailed part list

NVMe Drive Slot Support

Note: Only supports the NVMe Protocol Solid State Drives.

usage examples

Connecting with NVME Solid State Drive

Connecting with Hailo-8 AI Accelerator Module

* for reference only, please refer to the Package Content for detailed part list

Based On Raspberry Pi 5

Matching the size and mounting holes of the Raspberry Pi 5,
combines A Temperature-Controlled Blower Fan with an aluminium heatsink
to accelerate heat dissipation

* for reference only, please refer to the Package Content for detailed part list

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

NVMe Solid State Drives Support

Compatible With 2242 / 2230 Size M.2 Solid State Drives
Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive

Onboard Dual LED Indicators

Easy to monitor the Working Status

Raspberry Pi 5 Cooling Solution Comparing

With Active-Cooler-A

With Active-Cooler-B

With PCIe TO M.2 Board (E)

How to install

* for reference only, please refer to the Package Content for detailed part list

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/PCIe_TO_M.2_Board_(E)
