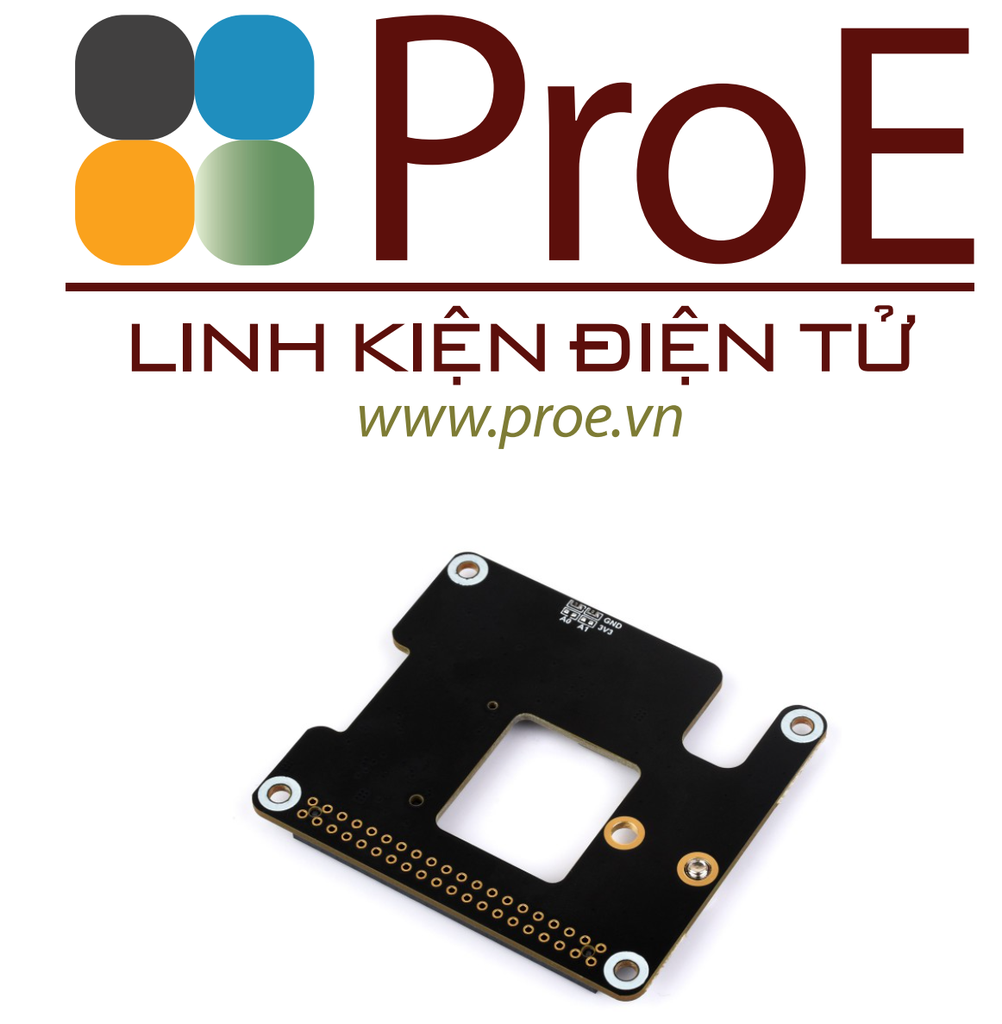

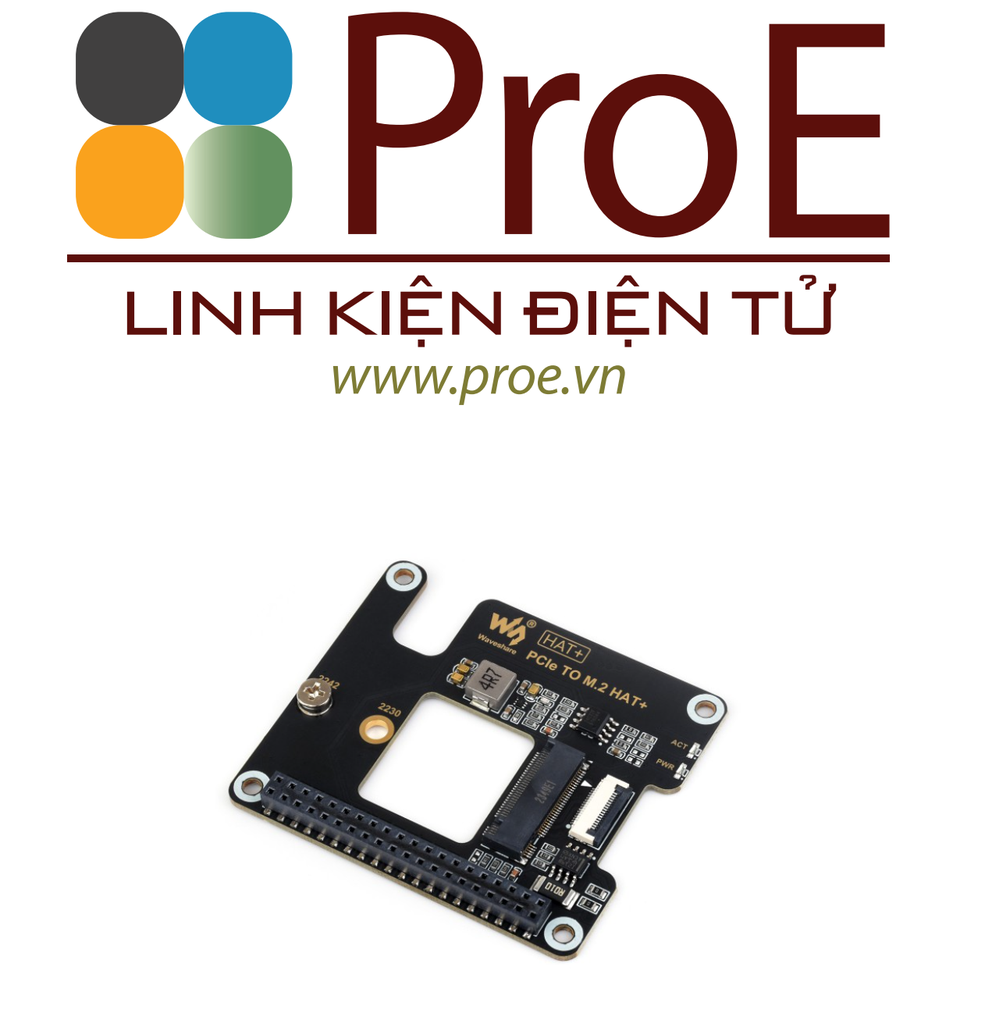

PCIe TO M.2 HAT+

Weight: 0.038 kg

PCIe TO M.2 HAT+

1. PCIe TO M.2 HAT+ x1
2. 2*20 Pin header x1
3. 16P-Cable-40mm x1
4. Standoff pack x1

PCIe To M.2 Adapter For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, HAT + Standard, Optional For 128GB / 256GB Solid State Drive

PCIe To M.2 Adapter For Raspberry Pi 5

Designed for Raspberry Pi 5

Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing

Version Options

Basic Kit

Basic Kit + 128GB Solid State Drive

Basic Kit + 256GB Solid State Drive

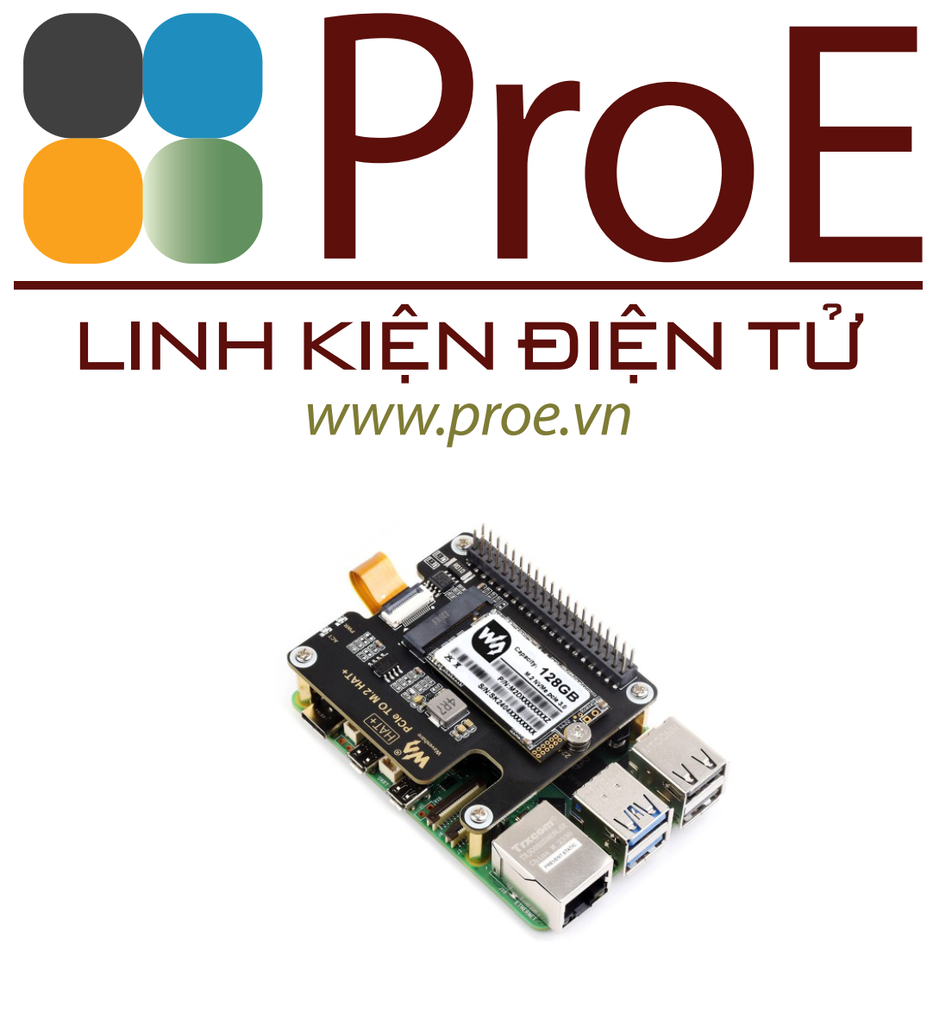

Connecting To PI5 Via 16PIN Cable

Based On 16PIN PCIe Interface Of Raspberry Pi 5

* for reference only, please refer to the Package Content for detailed part list

NVMe Drive Protocol Support

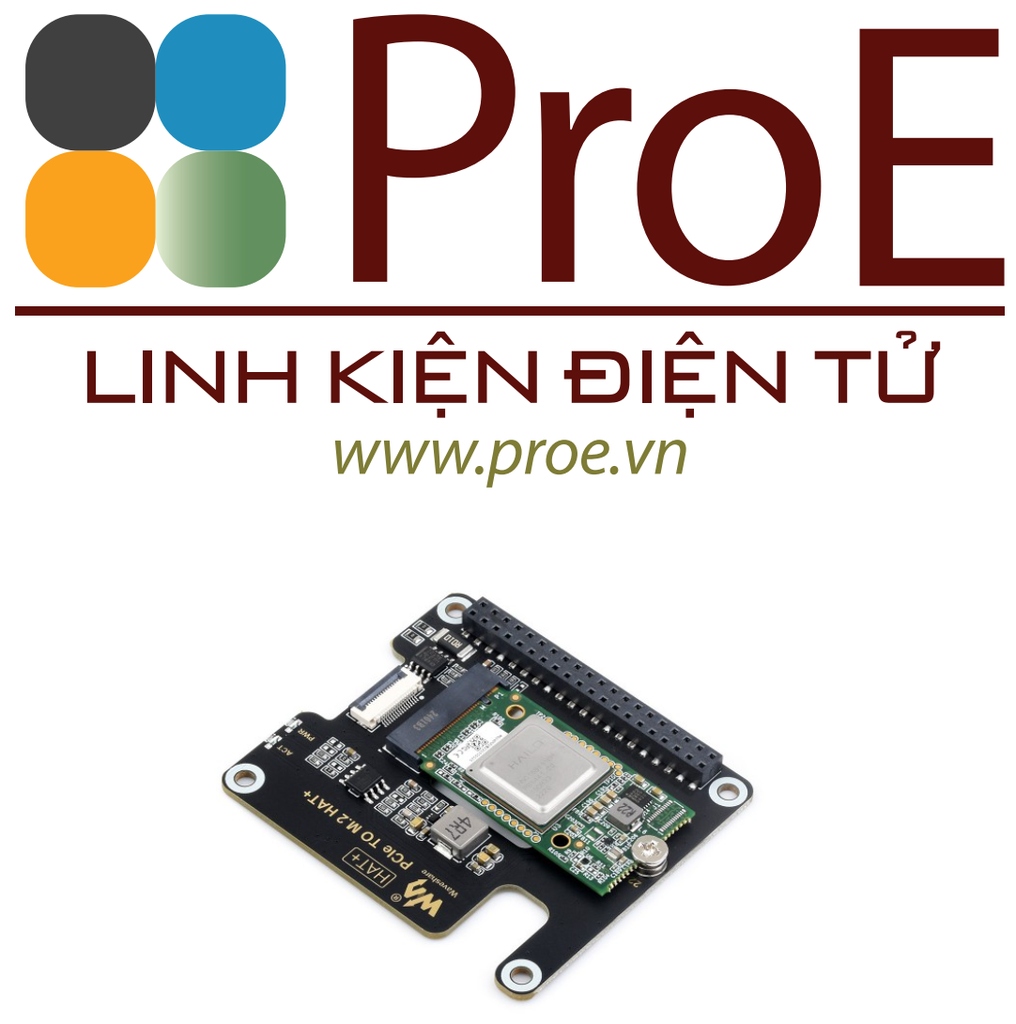

Compatible With 2230/2242 Size M.2 Solid State Drive
Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive

Onboard Dual LED Indicators

Easy To Monitor The Working Status

Onboard Power Monitoring Chip And EEPROM

Real-Time Monitoring Of Solid State Drive Power Status For More Stable Operation

Reserved Airflow Vent For Cooling Fan

Better Cooling Effect For Pi5 And Solid State Drive

* for reference only, the Raspberry Pi 5 and cooling fan are not included

How To Install

* for reference only, please refer to the Package Content for detailed part list

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/PCIe_TO_M.2_HAT+
