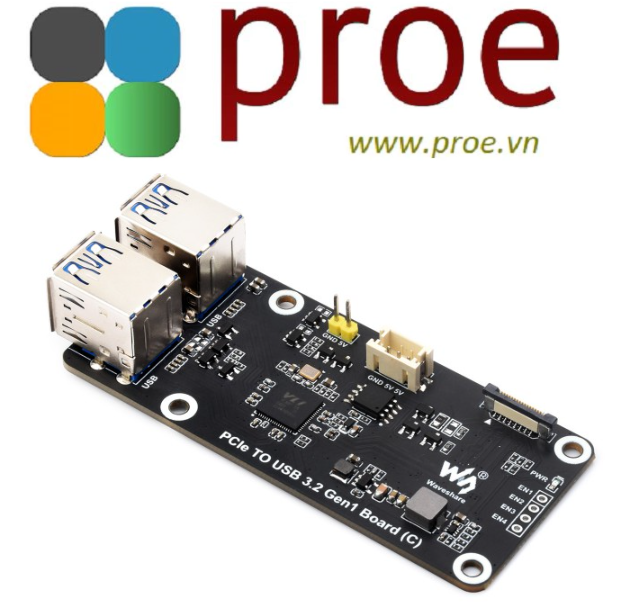

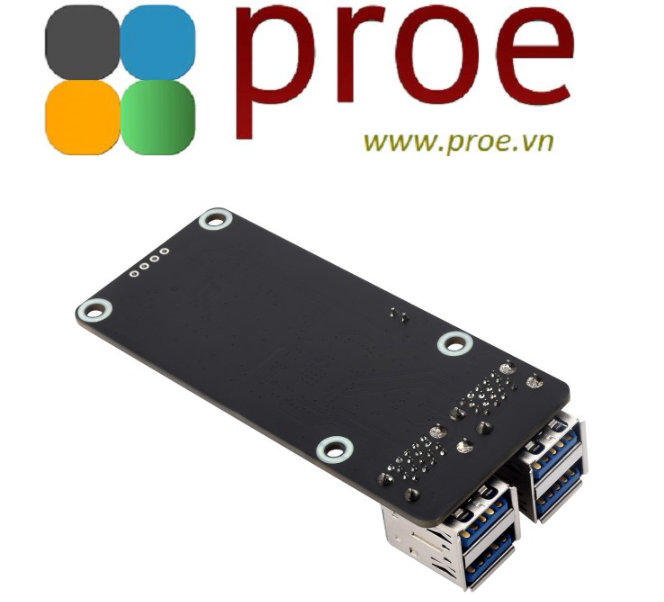

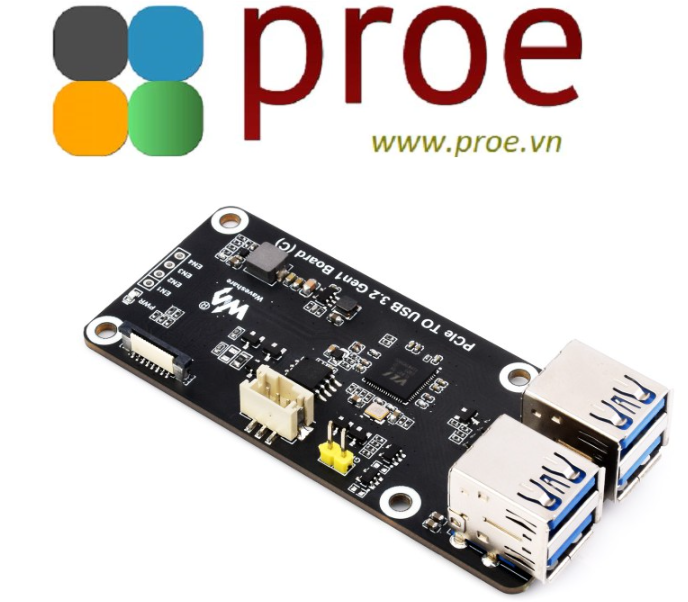

PCIe TO USB 3.2 Gen1 Board (C)

PACKAGE CONTENT

Weight: 0.065 kg

1. PCIe TO USB 3.2 Gen1 Board (C) x1
2. Transparent acrylic mounting plate x1
3. 16PIN PCIe cable x1
4. PH2.0 3PIN cable x1
5. Standoff pack x1

1

2

3

4

5

PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5, Up To 5Gbps Transmission Speed, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe Adapter

PCIe TO USB 3.2 Gen1 Board (C)

Designed for Raspberry Pi 5

Supports Raspberry Pi OS, Driver-Free, Plug And Play

Connecting To PI5 Via 16PIN Cable

Specifications

5Gbps Ultra-Fast Transmission

Extending 4x USB 3.2 Gen1 Ports, up to 500MB/s transmission speed theoretically. Enjoy stable and high-speed file transmission

Enabling Up To 8-Ch USB Ports For The Raspberry Pi 5

PCIe To 4-Ch USB 3.2 Gen 1 High-Speed Ports For Connecting More Peripherals

* the Raspberry Pi 5 is NOT included, please refer to the Package Content for detailed part list

4-Ch Power Supply Independent Control

Allows Controlling The Power ON/OFF Of Each USB Port Via Commands

Two Power Supply Methods

Supports Power Supply Via 2PIN Header Or 3PIN Connector

Comes With Transparent Acrylic
Mounting Plate

Adopts Side-Mounting Solution To Save Space Above The Raspberry Pi 5
Connecting To PI5 Via 16PIN Cable

* for reference only, please refer to the Package Content for detailed part list

Acrylic Mounting Bottom Plate, Stable And Not Easy To Loosen

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/PCIe_TO_USB_3.2_Gen1_Board_(C)
