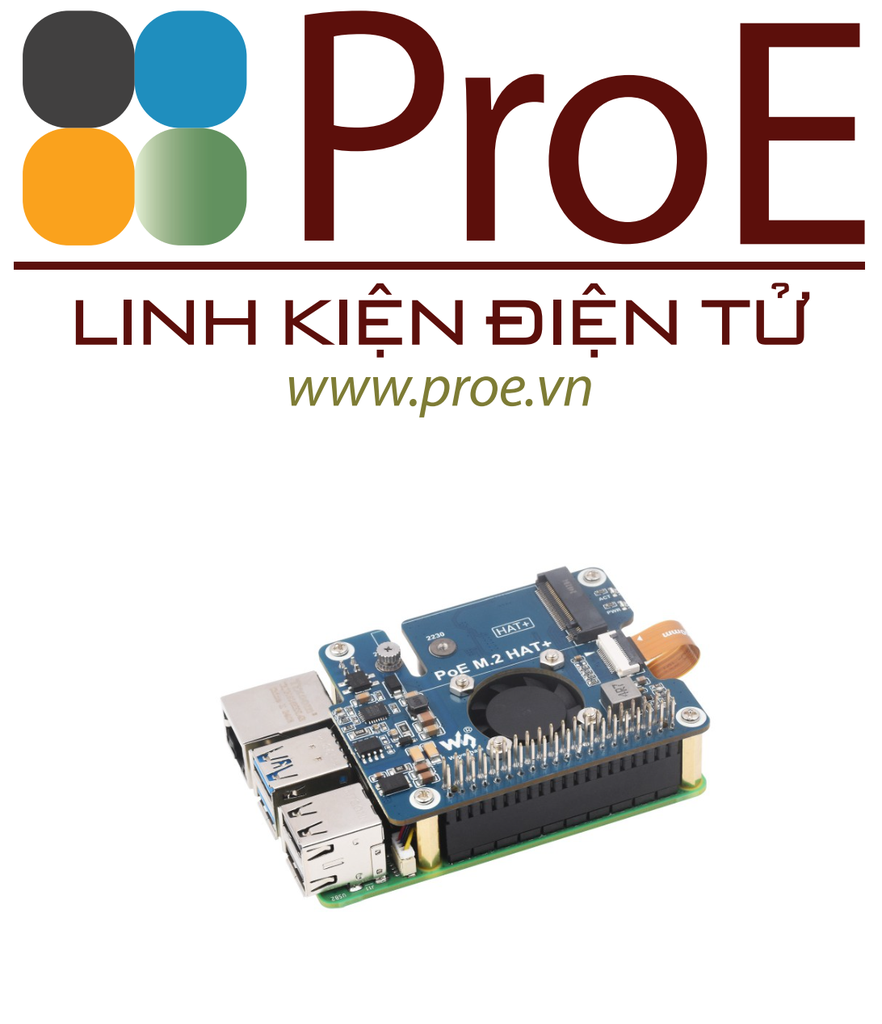

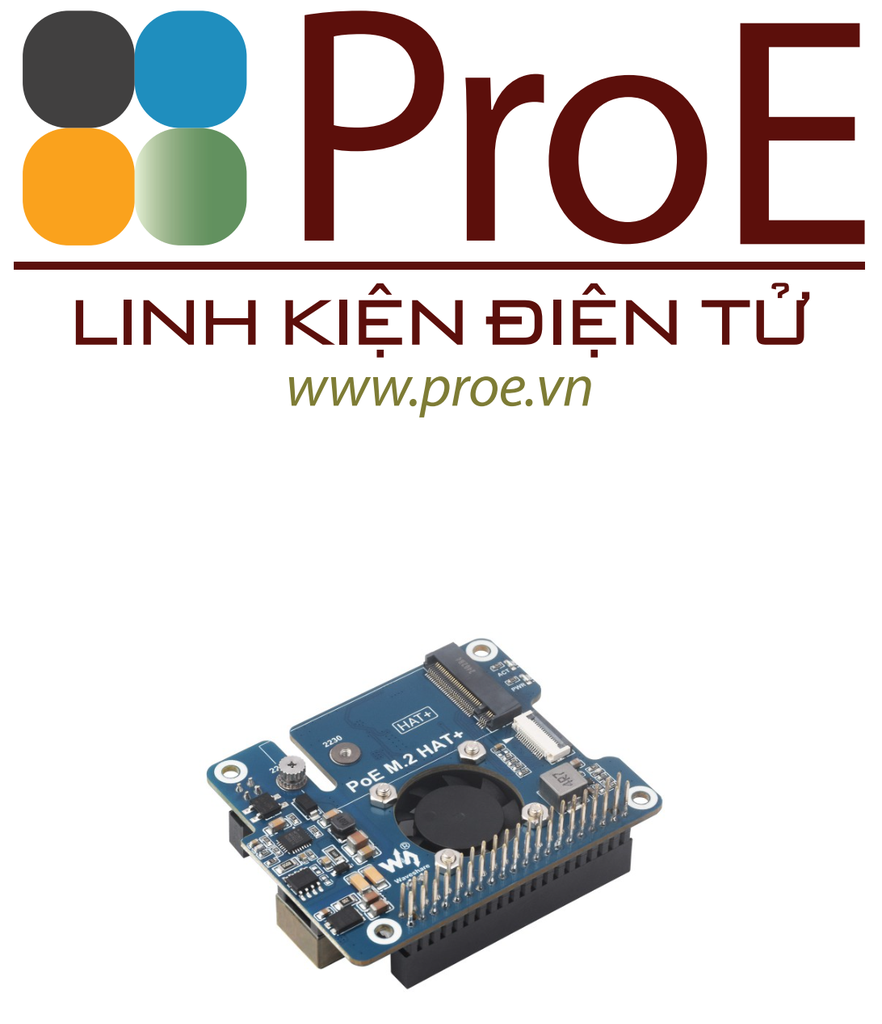

POE M.2 HAT+

Package Content

Weight: 0.022 kg

1. PoE M.2 HAT+ x1
2. Metal heatsink x1
3. 16P-Cable-40mm x1
4. Thermal tape (3PCS) x1
5. Screws pack x1

PCIe To M.2 Adapter With PoE Function For Raspberry Pi 5, Supports NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing, Supports 802.3af/at network standard, Raspberry Pi 5 PoE HAT

PCIe To M.2 with PoE HAT

Designed For Raspberry Pi 5, Supports IEEE 802.3af/at Network Standard

Adapter For NVMe Protocol M.2 Solid State Drive, High-speed Reading/Writing

Specifications

Improves reading/writing speed of your Pi

* for reference only, the Raspberry Pi 5 is not included.

NVMe Drive Slot Support

Note: Only supports the NVMe Protocol Solid State Drives.

Connecting to PI5 via 16PIN Cable

Based on 16PIN PCIe Interface of Raspberry Pi 5.
Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

* for reference only, please refer to the Package Content for detailed part list

Onboard Dual LED Indicators

Easy to monitor the Working Status

NVMe Drive Protocol Support

Compatible With 2230/2242 Size M.2 Solid State Drive
Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive

Power Over Ethernet

providing both network connection and power supply for your Raspberry Pi in one cable

* for reference only, the Raspberry Pi 5, Network cable, and switch are NOT included.

Onboard 5V & 12V header outputs

5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to Raspberry Pi

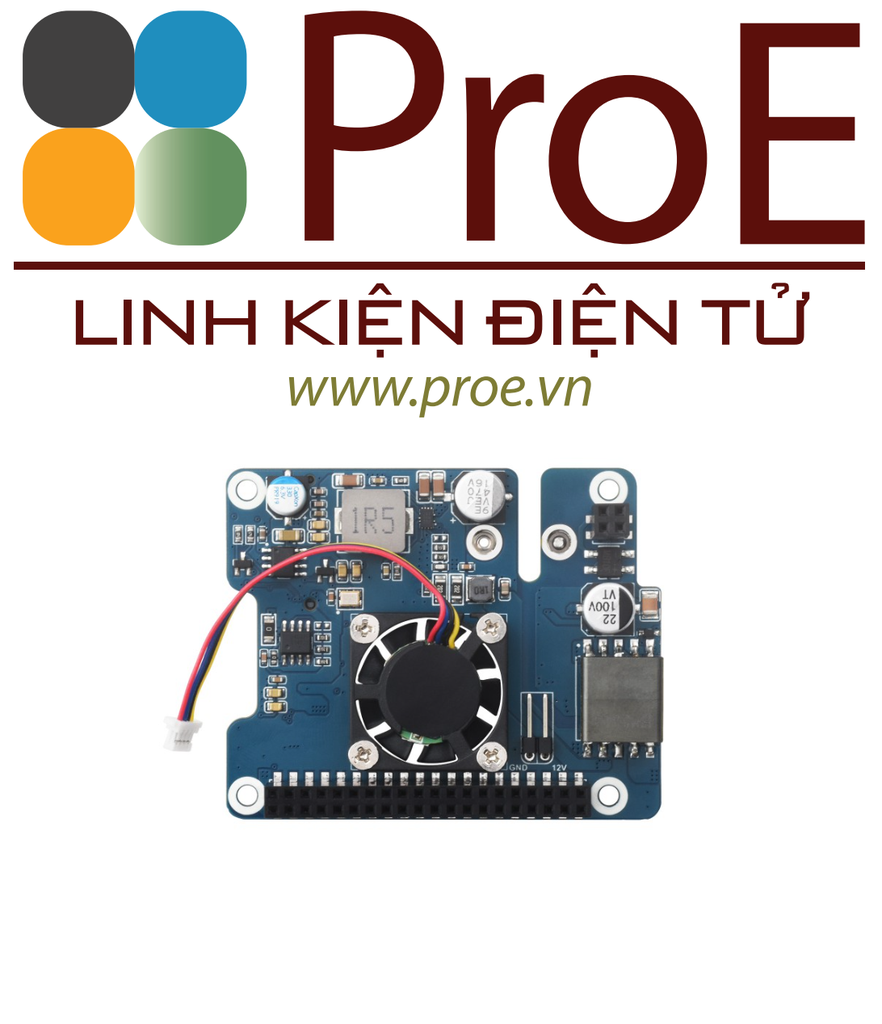

Active Cooling fan

Accelerate Cooling Effect, More Stable Performance

How to Install

Attach the thermal tapes first, then install the metal heatsink and fix the HAT

* for reference only, please refer to the Package Content for detailed part list

Outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/PoE_M.2_HAT+
