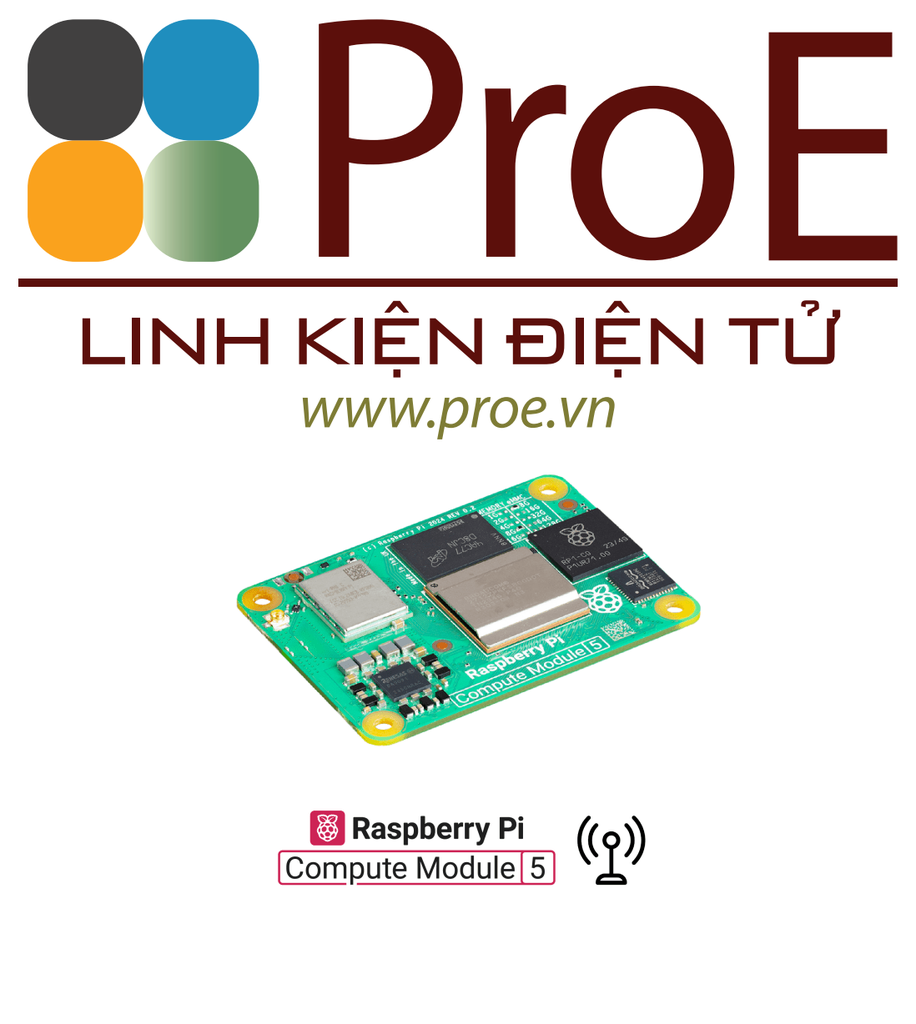

Raspberry Pi Compute Module 5

Specifications

• Processor: Broadcom BCM2712, Quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz
• H.265 (HEVC) (up to 4kp60 decode)
• OpenGL ES 3.1 graphics, Vulkan 1.2
• Variant of 16GB, 8GB, 4GB or 2GB LPDDR4-4267 SDRAM
• Variant of 64GB, 32GB, 16GB, or  0GB (Lite) of eMMC Flash memory
  • Peak eMMC bandwidth 400MBytes/s (four times faster than CM4's eMMC)
• built-in Fully certified radio module with :
  ◦ Dual-band WiFi: 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
  ◦ Bluetooth 5.0, BLE
  ◦ Onboard electronic switch to select between external or PCB trace antenna
• Gigabit Ethernet PHY supporting IEEE 1588
• 1x PCIe 1-lane Host, Gen2 ( 5Gbps ), can be configured to Gen3 (Gen3 is not certified)
• 2x USB 3.0 port
• 1x USB 2.0 port ( highspeed )
• Up to 30x user GPIO supporting either 3.3V or 1.8V signaling and various interface options:
  • Up to 5x UART
  • Up to 5x I²C
  • Up to 5x SPI
  • 1x SDIO interface
  • 1x DPI (Parallel RGB Display)
  • 1x I2S
  • Up to 2x PWM channels
  • Up to 3x GPCLK outputs
• 2 x HDMI 2.0 ports (up to 4kp60 on each port supported)
• 2x 4-lane MIPI ports:
  • supporting both DSI (display port) and CSI-2 (camera port)
• 1x SDIO 2.0 (CM5 Lite)
• Real-time Clock (RTC), powered by an external battery
• Single +5VDC Power input supports USB PD up to 5A@5V
• Small Footprint 55mm x 40mm x 4.7mm with 4 x M2.5 mounting holes
