RS232 RS485 CAN Board

  • Mã sản phẩm: RS232 RS485 CAN Board
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
1.500.000₫
Package Content

Weight: 0.012 kg

  1. RS232 RS485 CAN Board (with ABS plastic case)x1
  2. 40PIN cable x1
  3. Pi5 Connector Adapter (B) x1
  4. Screws pack x1
RS232 RS485 CAN Board

Isolated RS232 / RS485 / CAN / CAN FD Expansion Board For Raspberry Pi, expands 2x RS485, 1x RS232, 1x CAN FD, and 1x CAN, Supports Wall-mount & Rail-mount Installation

Industrial isolated interface expansion board

Suitable for Raspberry Pi 4B / 5, expands 2x RS485 + 1x RS232 + 1x CAN FD + 1x CAN

 RS232 / RS485 / CAN / CAN FD expansion board, front view

Features at a glance

The RS232 RS485 CAN Board is an industrial isolated interface expansion board designed for Raspberry Pi 4B / Raspberry Pi 5, provides a variety of industrial communication interfaces: 2x RS485, 1x RS232, 1x CAN FD, and 1x CAN, each with electrical isolation. Onboard lightningproof, anti-electrostatic protection, etc. for more secure and reliable communication.

Comes with industrial rail-mount enclosure for easy integration in industrial control applications. Provides sufficient internal space for users to stack other HATs or expansion boards, and reserved installation space of PCIe adapter board for Raspberry Pi 5, which is more convenient for further expansion.

  • Based on Raspberry Pi 40PIN GPIO header, suitable for Raspberry Pi 4B and Raspberry Pi 5
  • Adopts SC16IS752 and SP485 combination scheme, expands SPI to 2x RS485 interface
  • Adopts MCP2515 and SN65HVD230 combination scheme, expands SPI to 1x CAN interface
  • Adopts MCP2518FD and MCP2562FD combination scheme, expands SPI to 1x CAN FD interface
  • Adopts Raspberry UART and SP3232EEN combination scheme, expands UART to 1x RS232 interface
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
  • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
  • Onboard unibody power supply isolation, needs no extra power supply for the isolated terminal, provides stable current/voltage outputs of RS232, RS485, CAN, and CAN FD interfaces, and improves the anti-interference and anti-shock performance
  • Onboard digital isolation chip for safer signal isolation communication and better stability and anti-interference performance
  • Onboard external power supply screw terminal for 7~36V wide voltage power input, combines with Pi5 Connector Adapter (B) to power the Raspberry Pi and the expansion board at the same time
  • Onboard 120Ω terminal resistor, configured by jumper
  • Reserved interrupt resistor pad for flexible switching the interrupt pin if there is pin conflict when working with other HATs
  • Comes with online development resources and manual (examples for Raspberry Pi Python/C)



Specifications

Product Type Industrial isolated interface expansion board for Raspberry Pi
Applicable Board Raspberry Pi 4B, Raspberry Pi 5
Communication interface SPI + UART
extended Industrial interfaces interface Chip Scheme Baudrate
1-ch isolated CAN FD MCP2518FD + MCP2562FD 5kbps ~ 8 Mbps
1-ch isolated CAN MCP2515 + SN65HVD230 5kbps ~ 1 Mbps
2-ch isolated RS485 SC16IS752 + SP485 300 bps ~ 921600 bps
1-ch isolated RS232 SP3232EEN
Expandability Supports extending functions such as NVME, ETH, USB, 4G/5G for Raspberry Pi 5 through PCIe interface
Supports stacking with other HATs through 40PIN GPIO header for Raspberry Pi 4B/5 (make sure there are no pin conflicts and the dimension is compatible)
power supply methods (choose one of two) 5V Type-C power port of Pi5 Connector Adapter (B)
External screw terminal for DC 7-36V wide voltage input
Dimensions L × W × H: 154.6 × 83.7 × 59 mm
Enclosure Eco-friendly plastic case, supports wall-mount & rail-mount installation



suitable for Raspberry Pi 4B/5

Based on Raspberry Pi 40PIN GPIO header

RS232 / RS485 / CAN / CAN FD expansion board, connecting with Raspberry Pi 5

* for reference only, the Raspberry Pi 5 and PCIe board are not included.

Supports two power supply methods

Onboard Type-C 5V port and DC 7~36V wide voltage screw terminal, can be powered directly from a Raspberry Pi power supply, or used in industrial wide-voltage power supply scenarios

RS232 / RS485 / CAN / CAN FD expansion board, power supply via Type-C 5V

Supports Type-C 5V power supply

 RS232 / RS485 / CAN / CAN FD expansion board, power supply via screw terminal

Supports 7~36V wide range voltage input



Expands multiple isolated industrial interfaces

Supports connecting with Multiple Peripherals Via CAN, RS485, And RS232 Interfaces

RS232 / RS485 / CAN / CAN FD expansion board, expands multiple isolated industrial interfaces

Large internal space, strong expansibility

Provides enough internal space of the case for users to connect other modules and expand more functions

Extending NVME, ETH, USB, and 4G/5G, etc. for Pi 5 through PCIe or 40PIN GPIO

 RS232 / RS485 / CAN / CAN FD expansion board, with large internal space

PCIe adapter Board Compatible

PCIe to NVMe M.2 Board

PCIe TO NVMe M.2 Board

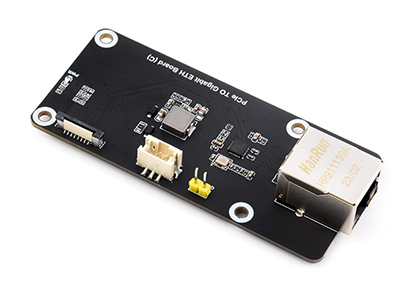

 PCIe TO Gigabit ETH Board

PCIe TO Gigabit ETH Board

 PCIe TO USB 3.2 Gen1 Board

PCIe TO USB 3.2 Gen1 Board

Supports stacking with some HATs* through 40PIN GPIO header for Pi 4B/5

* Note: make sure there are no pin conflicts and the dimension is compatible

RS232 / RS485 / CAN / CAN FD expansion board, stacking with some HATs

* for reference only, please refer to the Package Content for detailed part list

Assembly instruction

RS232 / RS485 / CAN / CAN FD expansion board, how to install

* for reference only, please refer to the Package Content for detailed part list

Enclosure Design

ABS Eco-friendly plastic case, supports wall-mount & rail-mount, making industrial installation more flexible

RS232 / RS485 / CAN / CAN FD expansion board, rail-mount support

With rail-mount buckle, supports 35mm standard guide rail

 RS232 / RS485 / CAN / CAN FD expansion board, wall-mount support

Wall-mount support

Interface introduction

RS232 / RS485 / CAN / CAN FD expansion board, interface introduction

Support Batch Customization

Support software and hardware customization
Including hardware interface, LOGO, label, case and web page, etc.

RS232 / RS485 / CAN / CAN FD expansion board, support batch customization

Outline dimensions

RS232 / RS485 / CAN / CAN FD expansion board, outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/RS232-RS485-CAN-Board
